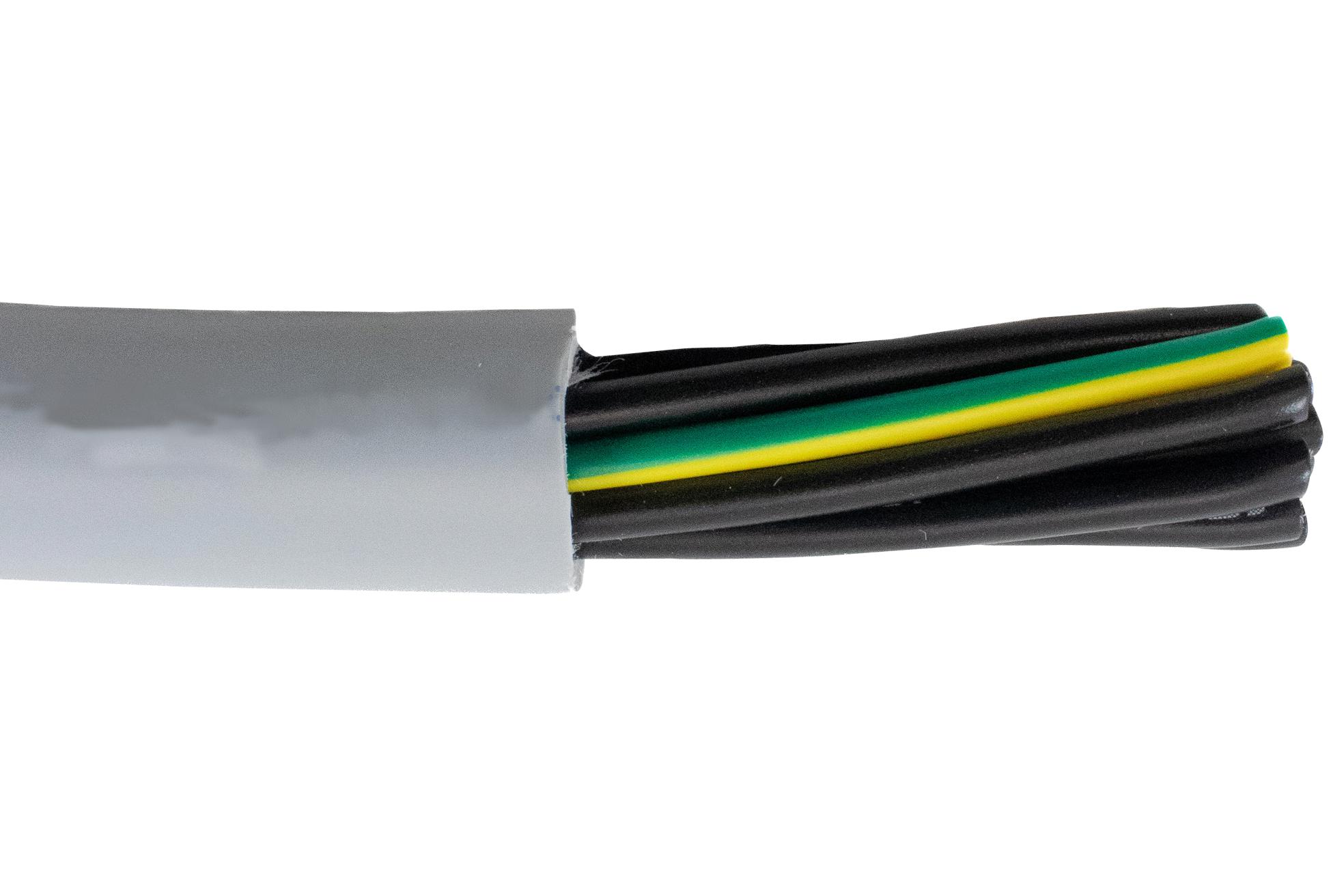

ALPHA WIRE 470915YYGE321 Industrial Control Cable
Pro-Met® unshielded flexible industrial YY control cable features stranded bare copper conductors with a grey PVC jacket. It resists oils and UV damage, and is ideal for automation, medical devices, and control panels. It has 9 conductors of 15 AWG, rated for up to 1 million flex cycles, operating from -30°C to +70°C dynamically and -40°C to +80°C statically. The cable’s bending radius is 10 times the diameter for movement and 6 times for fixed setups. Suitable for demanding industrial environments with high flexibility and chemical resistance.
ALPHA WIRE 470915YYGE321 Industrial Control Cable Specifications:
- Conductors: Stranded bare copper
- Conductor Size: 15 AWG
- Number of Conductors: 9
- Jacket Material: PVC, grey (RAL 7001)
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Flex Life: Rated for up to 1 million flex cycles
- Bending Radius: 10x diameter (occasional movement), 6x diameter (fixed installation)
- Oil Resistance: Yes
- UV Resistance: Yes
- Applicability: Industrial automation, control panels, medical devices, automotive, aerospace
- Compliance: EN 60228, IEC 60332-1, UL, RoHS, REACH
Buy the Alpha Wire Series Control Cable: 470915YYGE321
Purchase Alpha Wire control cable 470915YYGE321 online today to ensure high flexibility, long-lasting performance, and optimal safety in your industrial applications. This unshielded cable features 9 conductors of 15 AWG, with a durable PVC jacket resistant to oils and UV radiation. Rated for up to 1 million flex cycles, it performs flawlessly under demanding conditions, from -40°C to +80°C, making it ideal for automation, control panels, and medical devices. Easy to install with reliable durability for all your industrial needs.
Buy Alpha Wire 470915YYGE321 control cable now and experience reliable performance and durability for industrial automation and control systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470915YYGE321?
You can click on the BUY or RFQ button to purchase 470915YYGE321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470915YYGE321?
You can download the 470915YYGE321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470915YYGE321?
ALPHA WIRE
