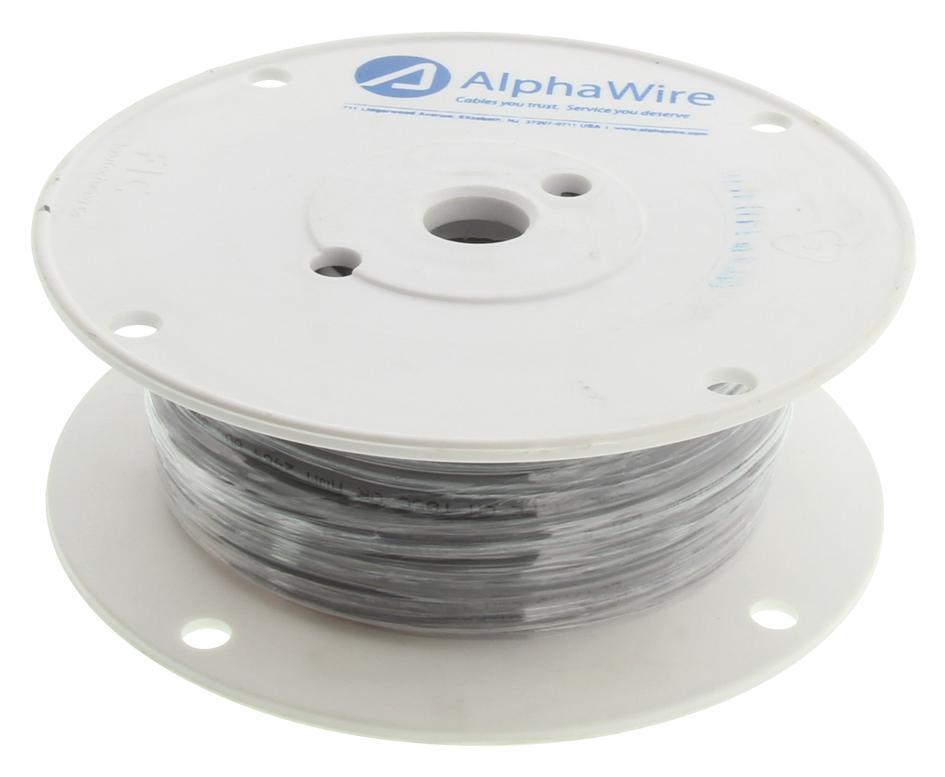

ALPHA WIRE 5012CSL005 High-Performance Industrial Cable
The 5012C SL005 is a 100-foot, two-conductor, 24 AWG unshielded high-performance cable with a grey Xtra-Guard® 1 PVC jacket. Featuring stranded tinned copper conductors, premium PVC insulation, a nylon ripcord, and UV-resistant materials, it offers a small diameter suitable for low-noise environments and enhanced abrasion resistance. Facilitating easy routing in tight spaces, with color-coded conductors for identification, it is rated for a maximum pull tension of 7 lbs and a jacket thickness of 0.81 mm. Operating reliably from -35°C to 105°C, it is ideal for automation, medical, computer, consumer electronics, and industrial applications.
ALPHA WIRE 5012CSL005 High-Performance Industrial Cable Specifications:
- Length: 100 feet
- Number of Conductors: 2
- Conductor Gauge: 24 AWG
- Conductor Material: Tinned Copper
- Jacket Material: PVC, Xtra-Guard 1, Grey
- Jacket Thickness: 0.81 mm
- Color: Grey
- Operating Temperature Range: -35°C to 105°C
- Pull Tension: 7 lbs maximum
- Insulation Type: Premium PVC
- Rated Voltage: 300 V
- Flammability: UL94V-0
- Oil Resistance: UL Oil Res I 60°C, Class 43
- UV Resistance: Yes
- Ripcord: Nylon 810 Denier
- Color Coding: Conductor color-coded for identification
- Certifications: UL, RoHS
Buy the Alpha Wire 5012C – Reliable High-Performance Cable for Industrial Applications
Purchase the Alpha Wire 5012C high-performance cable online today. This durable, shieldless, two-conductor cable features a PVC jacket, UV resistance, and precision engineering for reliable operation across a range of temperatures from -35°C to 105°C. Its small diameter allows easy routing in tight spaces, making it ideal for automation, medical devices, computers, consumer electronics, and industrial systems. Enjoy fast delivery, easy ordering, and product quality guaranteed for long-lasting, superior electrical performance in critical applications.
Get Alpha Wire 5012C today—designed for durability and precision in demanding environments for industrial, medical, and electronic uses.
