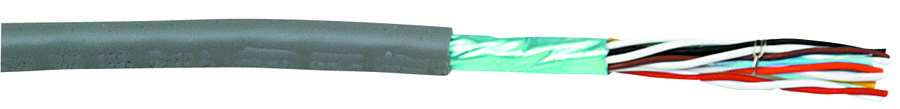

ALPHA WIRE 5482CSL001 Shielded Data Cable
The ALPHA WIRE 5482C SL001 is a robust, shielded data cable engineered for demanding applications requiring reliable signal integrity. Constructed with 22 AWG tinned copper conductors insulated with PVC, this cable offers excellent flexibility and durability. The aluminum/mylar shield provides effective protection against electromagnetic interference (EMI), ensuring clean and accurate data transmission. The cable's construction includes a core wrap and ripcord for ease of termination. It is RoHS compliant and suitable for use in industrial automation, instrumentation, and data communication systems. Available in various lengths and packaging options to meet diverse project needs.
ALPHA WIRE 5482CSL001 Shielded Data Cable Specifications:
- Conductor AWG: 22 (7/30)
- Conductor Material: Tinned Copper
- Insulation Material: PVC
- Insulation Wall Thickness: 0.010"
- Pair Construction: 2/Cond Cabled Together
- Twists per Foot (Pair): 8.0 (min)
- Twists per Foot (Cable): 6.0 (min)
- Shield Material: Alum/Mylar Tape
- Shield Overlap: 25% (min)
- Drain Wire AWG: 22 (7/30)
- Jacket Material: PVC
- Jacket Wall Thickness: 0.032"
- Jacket Colors: Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White
- Ripcord: 1 End 810 Denier Nylon
- Print: ALPHA WIRE-* P/N 5482C 2PR 22 AWG XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C OR AWM 2464 80C 300V OR AWM 21894 105C 300V SUN RES 60C OIL VW-1 --- LLXXXXXX CSA 105C TYPE CMG FT4 CE ROHS (SEQ FOOTAGE) * = Factory Code
- UL Style: 10002, 21894, 2464, CM, VW-1
- CSA Rating: CMG, FT4
- IEC Compliance: EN 60332-1, EN 60332-2
- RoHS Compliant: Yes
- REACH Compliant: Yes
- Temperature Range: -35 to 105°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 27 Lbs, Maximum
- Sunlight Resistance: Yes
- Voltage Rating: 300 VRMS
- Mutual Capacitance: 31 pF/ft @1 kHz
- Ground Capacitance: 56 pF/ft @1 kHz
- Characteristic Impedance: 57 Ω
- Inductance: 0.18 µH/ft
- Conductor DCR: 16.6 Ω/1000ft @20°C
- OA Shield DCR: 11.8 Ω/1000ft @20°C
- Packaging - 1000 FT: 12 x 12 x 3.5 inches
- Packaging - 500 FT: 12 x 6 x 3.5 inches
- Packaging - 100 FT: 6.5 x 4 x 2.5 inches
