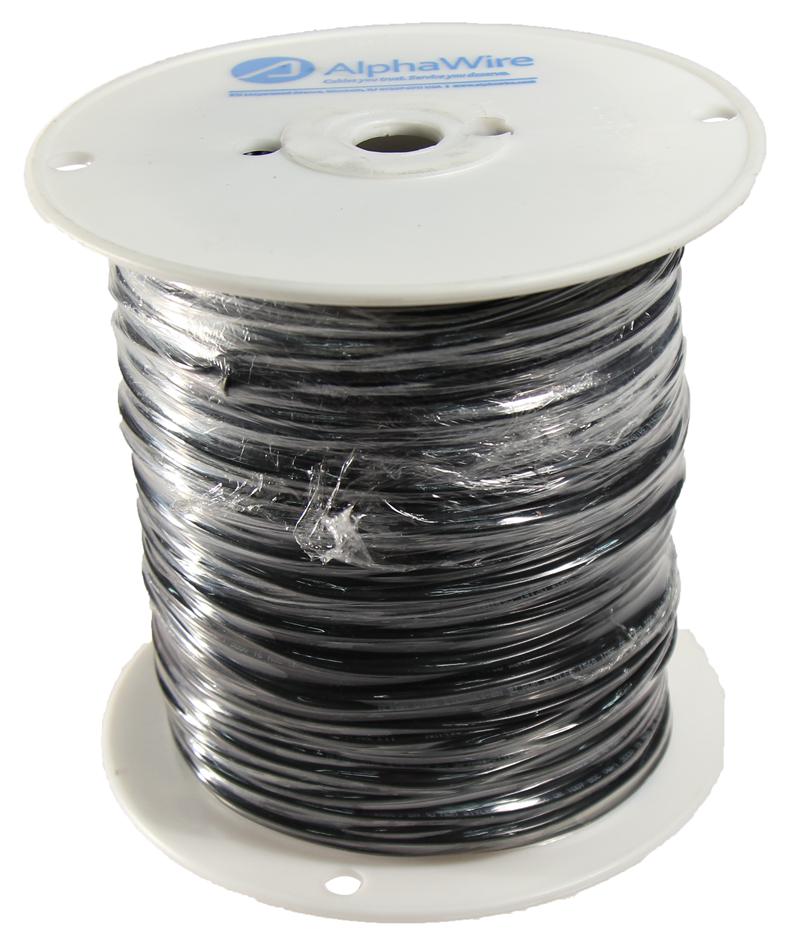

ALPHA WIRE 5852GR005 Hook Up Wire
The ALPHA WIRE 5852 GR005 is a robust hook-up wire designed for demanding applications requiring reliable electrical insulation and performance. Constructed with a 28 AWG stranded silver-plated copper (SPC) conductor and a durable PTFE insulation layer, this wire provides excellent resistance to heat, chemicals, and abrasion. It is commonly used in aerospace, automotive, and industrial control systems where flexibility and high-temperature performance are critical. The wire's 600 VRMS voltage rating ensures safe operation in various electrical circuits, while its RoHS compliance demonstrates a commitment to environmental responsibility. Available in various colors and put-ups, the 5852 GR005 offers versatility for diverse wiring needs.
ALPHA WIRE 5852GR005 Hook Up Wire Specifications:
- conductor_size: 28 (7/36) AWG SPC
- insulation_material: PTFE
- insulation_thickness: 0.010" Nom.
- overall_diameter: 0.035" +/- 0.004"
- color_options: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN, ORANGE, GRAY, VIOLET, WHITE/BLACK, WHITE/BLUE, WHITE/ORANGE, WHITE/VIOLET
- ul_rating: AWM/STYLE 1213, 105°C, VW-1
- military_spec: MIL-W-16878/4 (Type E), 200°C / 600 VRMS
- temperature_range: -60 to 200°C
- bend_radius: 10X Cable Diameter
- pull_tension: 1.37 Lbs, Maximum
- voltage_rating: 600 VRMS
- inductance: 0.07 µH/ft, Nominal
- conductor_dcr: 60 Ω/1000ft @20°C, Nominal
- rohs_status: Compliant
- reach_status: Compliant
- packaging_1000ft: 3.5 x 3 x 1.125 inches (3 pieces, min 100 FT/piece)
- packaging_100ft: 2.75 x 1 x 1.125 inches (Continuous length)
