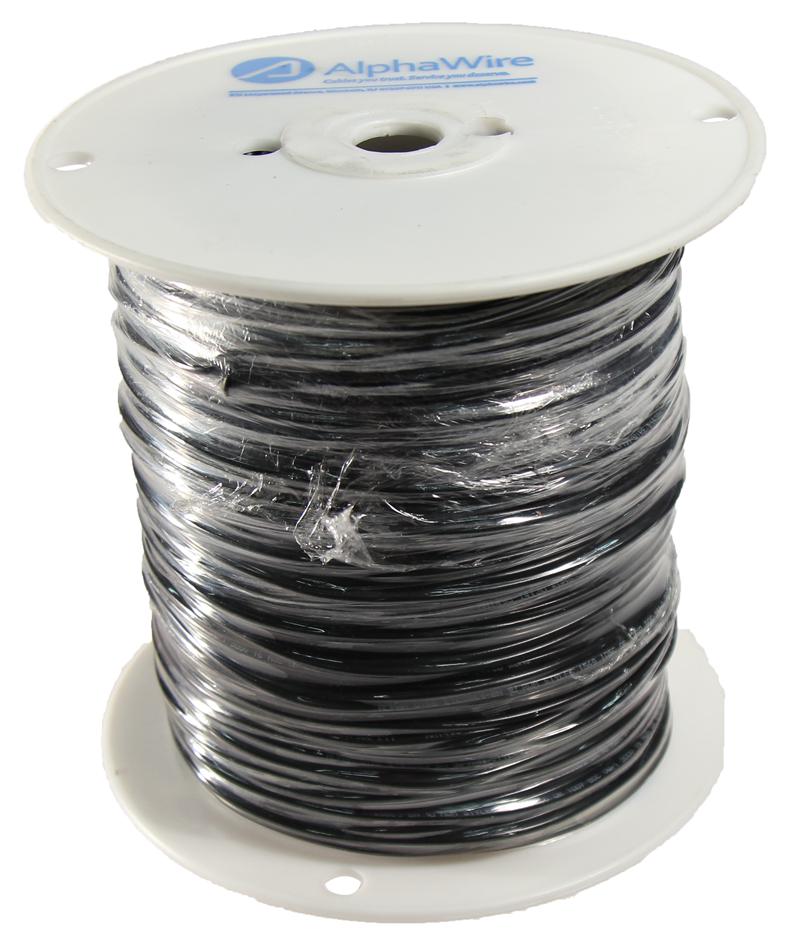

ALPHA WIRE 5853GR005 Hook-Up Wire
The ALPHA WIRE 5853 GR005 is a versatile hook-up wire designed for reliable performance in a wide range of applications. Constructed with 26 AWG stranded tinned copper conductors and insulated with durable PTFE, this wire offers excellent electrical properties and resistance to harsh environments. It is suitable for use in appliances, electronics, and industrial equipment where flexibility, heat resistance, and chemical resistance are critical. The wire's RoHS compliance ensures adherence to environmental regulations, making it a sustainable choice for modern applications. Available in various colors, it provides flexibility in identification and organization within complex wiring systems.
ALPHA WIRE 5853GR005 Hook-Up Wire Specifications:
- Component 1: 1 X 1 HOOKUP
- Conductor: 26 (19/38) AWG SPC
- Insulation Wall: 0.010" Nom. PTFE
- Insulation Diameter: 0.039+/- 0.004
- Colors: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN, ORANGE, SLATE, VIOLET
- UL Style: AWM/STYLE 1213
- UL Temperature Rating: 105°C
- UL Voltage Rating: VW-1
- Military Spec: MIL-W-16878/4 (Type E)
- Military Temperature Rating: 200°C
- Military Voltage Rating: 600 VRMS
- Temperature Range: -60 to 200°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 2.39 Lbs, Maximum
- Voltage Rating: 600 VRMS
- Inductance: 0.06 µH/ft, Nominal
- Conductor DCR: 35 Ω/1000ft @20°C, Nominal
- Packaging Flange x Traverse x Barrel: 6.5 x 2 x 1.9 Max. (1000 FT)
- Packaging Continuous Length: 2.75 x 1 x 1.125 (100 FT)
Buy the 5853 GR005 ALPHA WIRE Hook-Up Wire | myMectronic
Purchase the ALPHA WIRE 5853 GR005 hook-up wire securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 5853GR005?
You can click on the BUY or RFQ button to purchase 5853GR005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5853GR005?
You can download the 5853GR005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5853GR005?
ALPHA WIRE
