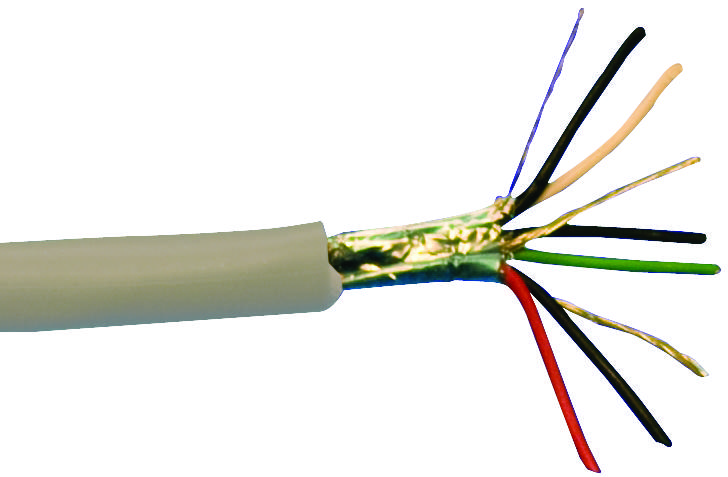

ALPHA WIRE 6033CSL002 Shielded Data Cable
The ALPHA WIRE 6033C SL002 is a high-quality, shielded data cable constructed with 20 AWG TC conductors, polypropylene insulation, and a foil/mylar tape shield with a drain wire. The cable is cabled together, core wrapped with mylar tape, and jacketed with PVC. It offers excellent protection against electromagnetic interference, making it ideal for applications in industrial automation, data communication, and audio/video transmission. The RoHS compliance ensures environmentally responsible usage. The cable's construction and shielding provide robust performance and long-term reliability.
ALPHA WIRE 6033CSL002 Shielded Data Cable Specifications:
- Construction: 3 X 1 PAIR
- Conductor: 20 (7/28) AWG TC
- Insulation Wall Thickness: 0.013" Nom. Polypropylene(PP)
- Color Code: Alpha Wire Color Code A
- Pair Colors: BLACK-RED, BLACK-WHITE, BLACK-GREEN
- Twists per Foot (Pair): 6.9 (min)
- Shield: Foil Free Alum/Mylar Tape, 25% Overlap, Min.
- Foil Direction: Foil Facing In
- Drain Wire: 22 (7/30) AWG TC
- Cable Assembly Twists per Foot: 3.2 (min)
- Core Wrap: Clear Mylar Tape, 25% Overlap, Min.
- Jacket Wall Thickness: 0.047" Nom. PVC
- Jacket Color: SLATE
- Print: ALPHA WIRE-* P/N 6033C 3PR 20 AWG EXXXXX SHIELDED 75C (UL) C(UL) CMG OR AWM 2493 CE ROHS * = Factory Code
- UL Style: AWM/STYLE 2493
- UL Temperature Rating: 60°C
- UL Rating: CMG 75°C, VW-1
- CSA Type: C(UL) TYPE CMG
- CSA Temperature Rating: 75°C
- CSA Rating: FT4
- CE Compliance: EU Low Voltage Directive 2006/95/EC
- Temperature Range: -20 to 75°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 69 Lbs, Maximum
- Voltage Rating: 300 VRMS
- Characteristic Impedance: 61 Ω
- Inductance: 0.18 µH/ft, Nominal
- Mutual Capacitance: 25 pf/ft @1 kHz, Nominal
- Ground Capacitance: 45 pf/ft @1 kHz, Nominal
- Conductor DCR: 10.3 Ω/1000ft @20°C, Nominal
- Ind. Shield DC Resistance: 13.8 Ω/1000ft @20°C, Nominal
- Packaging - 1000 FT: 18 x 12 x 8 inches
- Packaging - 500 FT: 16 x 11 x 8 inches
- Packaging - 100 FT: 12 x 10 x 5 inches
