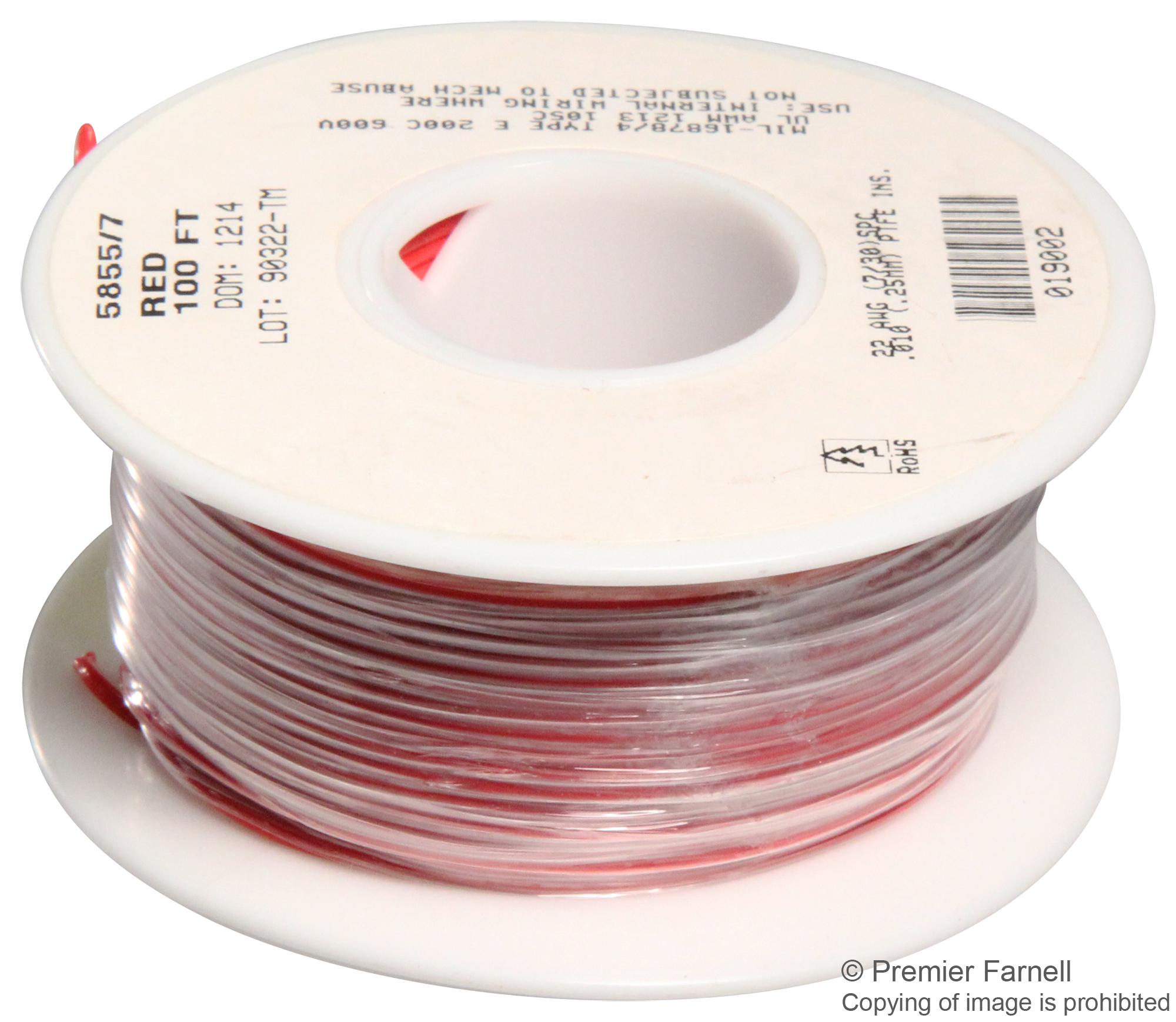

ALPHA WIRE 58557RD005 Hook-Up Wire
The 5855/7 RD005 is a hook-up wire featuring a 22 AWG silver-plated copper conductor insulated with red PTFE material. Designed for demanding environments, it withstands temperatures from -60°C to 200°C and offers excellent electrical performance, including a maximum pull tension of 5.5 lbs and a nominal inductance of 0.05 µH per foot. With a conductor resistance of approximately 15.1 ohms per 1000 feet at 20°C, it resists oil, solvents, and chemicals. Suitable for defense, military, and aerospace industries, ensuring durability and safety.
ALPHA WIRE 58557RD005 Hook-Up Wire Specifications:
- Conductor: 22 AWG silver-plated copper
- Insulation: PTFE, 0.010 inch wall, nominal
- Maximum pull tension: 5.5 lbs
- Temperature range: -60°C to 200°C
- Voltage rating: 600 V AC/DC
- Inductance: 0.05 µH/ft, nominal
- Conductor DCR: 15.1 Ω/1000 ft @20°C
- Length options: 1000 ft (6.5 x 2 x 1.9 max), 100 ft (2.75 x 1 x 1.125)
- Environmental compliance: RoHS, China RoHS, MIL-W-16878/4 (Type E), UL JAWM/STYLE 1213
- Applicable certifications: UL, MIL, NEMA
Buy the AlphaWire Series Hook-Up Wire: 22 AWG PTFE Insulated Cable 5855/7 RD005
Purchase the AlphaWire hook-up wire 5855/7 RD005 online today for reliable performance in demanding environments. This high-quality 22 AWG silver-plated copper conductor features PTFE insulation, providing excellent chemical, oil, and solvent resistance. Operating from -60°C to 200°C, it guarantees durability and safety for aerospace, military, and industrial applications. With precise specifications and robust construction, this wire ensures optimal electrical performance and mechanical strength, making it a perfect choice for critical wiring needs. Buy now for quick delivery and trusted quality directly online.
Get AlphaWire 5855/7 RD005 today—built for precision and long-lasting durability in aerospace and military applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 58557RD005?
You can click on the BUY or RFQ button to purchase 58557RD005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 58557RD005?
You can download the 58557RD005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 58557RD005?
ALPHA WIRE
