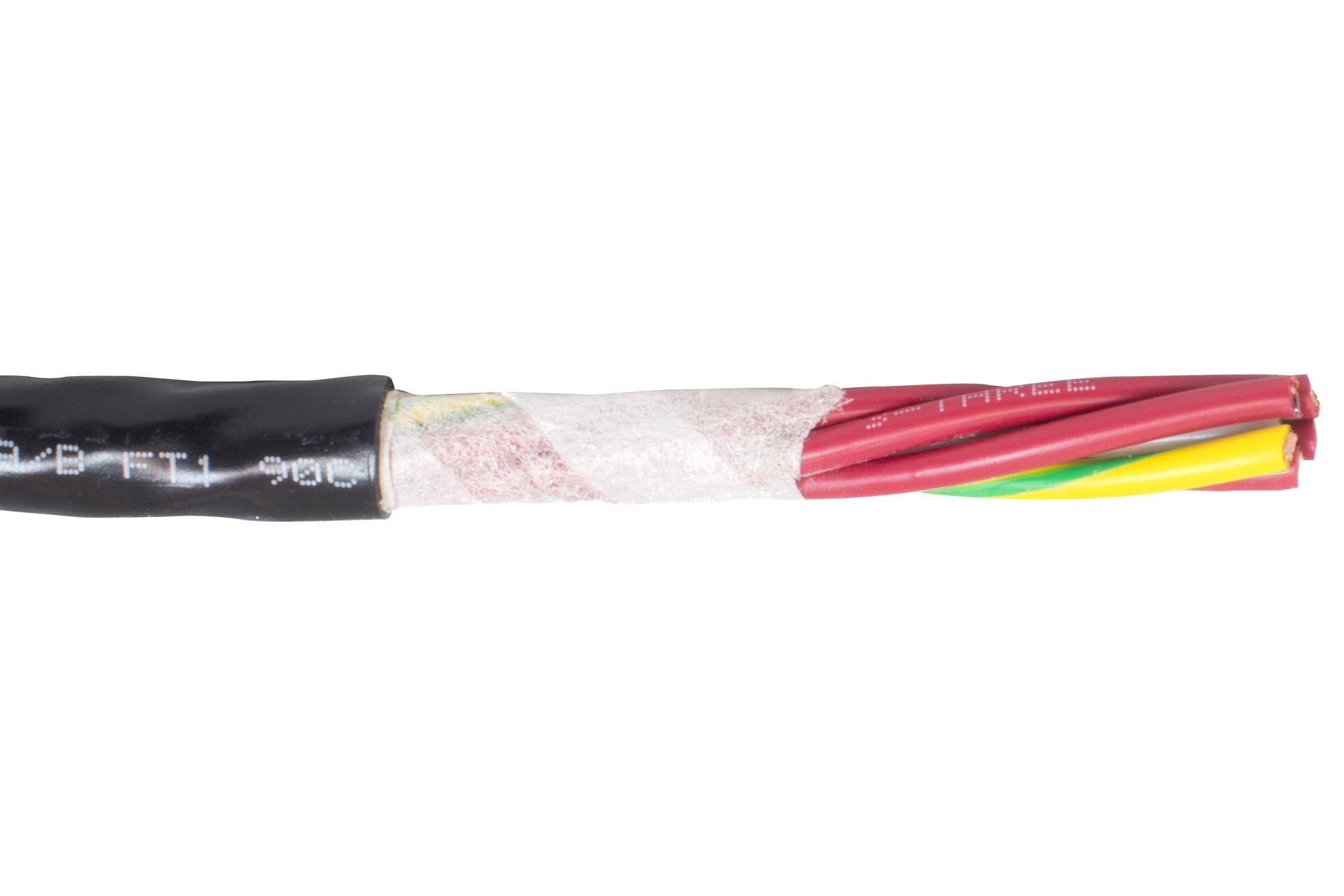

ALPHA WIRE 852207BK005 Control Cable
This flexible control cable features a PVC insulation with a 0.022-inch wall thickness and a black jacket, suitable for static and dynamic environments. It is rated for 600V, with a conductor cross-section of 22 AWG using bare copper. The cable meets UL 2587, CSA, VDE, CE standards, and RoHS compliance, making it ideal for industrial control and automation applications. Its temperature range is from -40°C to 90°C, with a bend radius of 8 times the cable diameter, ensuring reliable performance in demanding conditions.
ALPHA WIRE 852207BK005 Control Cable Specifications:
- Conductor Size: 22 AWG (41/38) Bare Copper
- Insulation Wall Thickness: 0.022 inches, PVC
- Jacket Thickness: 0.035 inches, Oil Resistant PVC
- Jacket Color: Black
- Outer Diameter: 0.344 inches +/- 0.021
- Maximum Voltage Rating: 600V
- Temperature Range: -40°C to 90°C (static), -5°C to 90°C (dynamic)
- Bend Radius: 8X Cable Diameter
- Pull Tension: 36 Lbs, Max
- Capacitance: 22.9 pF/ft @1 kHz
- Inductance: 0.22 µH/ft
- Conductor DCR: 16.5 Ω/1000 ft @ 20°C
- Lengths Available: 1000 ft, 500 ft, 100 ft spools
- Standards: UL 2587, CSA, VDE, CE, RoHS compliant
- Environmental: Oil resistant, suitable for industrial environments
Buy the Alpha Wire Series 711 Control Cable: 852207
Get the reliable Alpha Wire control cable with 22 AWG copper conductors rated for 600V. With PVC insulation and oil-resistant jacket, it withstands harsh environments. Suitable for static and dynamic applications, it operates efficiently within -40°C to 90°C. This RoHS compliant cable meets all major standards, ensuring safety and quality. Order online today to secure this high-performance control cable and enhance your automation systems with durability and flexibility for demanding industrial tasks. Perfect for control panels and machinery wiring.
Order your Alpha Wire Series 711 control cable with 22 AWG conductors today and ensure reliable performance in your industrial applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 852207BK005?
You can click on the BUY or RFQ button to purchase 852207BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 852207BK005?
You can download the 852207BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 852207BK005?
ALPHA WIRE
