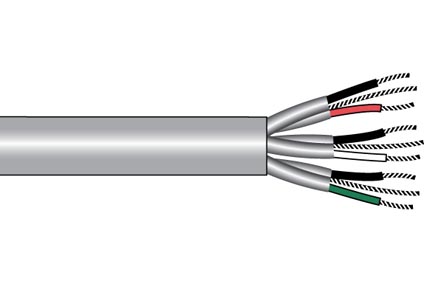

ALPHA WIRE 6056CSLATE100 Shielded Data Cable
The ALPHA WIRE 6056C-SLATE-100 is a shielded data cable designed for robust performance in industrial environments. It incorporates a 22 AWG stranded conductor, providing excellent signal integrity. The aluminum/mylar tape shield minimizes electromagnetic interference, ensuring clean data transmission. A durable slate-colored PVC jacket offers protection against abrasion and environmental factors. This cable is ideal for applications requiring reliable data transfer, such as industrial control systems, networking equipment, and instrumentation.
ALPHA WIRE 6056CSLATE100 Shielded Data Cable Specifications:
- Component 1: 3 X 1 COND
- Conductor: 22 (7/30) AWG TC
- Insulation: 0.016" Wall, Nom. PVC
- Color(s) Cond: BLACK, RED, WHITE
- Twists: 6.0 Twists/foot (min)
- Shield: Alum/Mylar Tape, 25% Overlap, Min.
- Foil Direction: Foil Facing In
- Drain Wire: 24 (7/32) AWG TC
- Jacket: 0.038" Wall, Nom., PVC
- Color(s) Jacket: SLATE
- Print: ALPHA WIRE-* P/N M39114 3C 22 AWG<br>SHIELDED EXXXXX (UL) TYPE PLTC/ITC 105C SUN RES<br>OR CMG 105C OR C(UL) CMG FT4 CE ROHS<br>* = Factory Code
- UL Rating: 105°C (CM, PLTC, ITC)
- CSA Rating: 105°C (C(UL) TYPE CMG, FT4)
- CE Compliance: EU Low Voltage Directive 2006/95/EC
- Temperature Range: -20 to 105°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 20 Lbs, Maximum
- Sunlight Resistance: Yes
- Voltage Rating: 300 VRMS
- Capacitance: 39 pf/ft @1 kHz, Nominal Conductor to Conductor
- Ground Capacitance: 70 pf/ft @1 kHz, Nominal
- Inductance: 0.2 µH/ft, Nominal
- Conductor DCR: 16.3 Ω/1000ft @20°C, Nominal
- OA Shield DCR: 15.9 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 12 x 10 x 5 Continuous length
- Packaging 500 FT: 12 x 4.5 x 3.5 Continuous length
- Packaging 100 FT: 6.5 x 4 x 2.5 Continuous length
