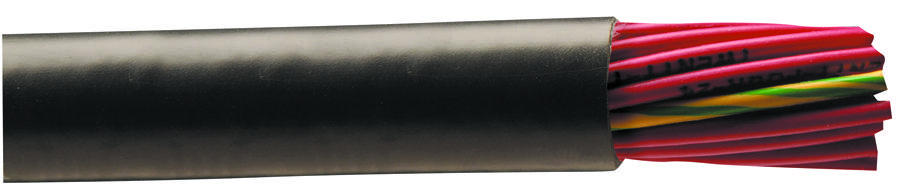

ALPHA WIRE 85604BK005 Control Cable
The 85604 BK005 is a four-core unshielded cable featuring a bare copper conductor and lubricated PVC insulation. This multi-core, Xtra-Guard® continuous flex control cable is equipped with an oil-resistant black PVC jacket, making it highly durable for high-flex, high-torsion, and continuous-flex applications such as motion control. Its rounded geometry ensures a liquid-tight installation rated for IP67 or NEMA 6 standards. Suitable for use in automation and process control, robotics, industrial environments, sensing and instrumentation, and automotive applications. Max pull tension is 84 lbs, with a capacitance of 33 pF/ft at 1 kHz and a conductor DCR of 4.1 Ω/1000ft.
ALPHA WIRE 85604BK005 Control Cable Specifications:
- Number of cores: 4
- Conductor Material: Bare Copper
- Conductor Size: 16 AWG
- Insulation: PVC, 0.022" wall, lubricated
- Jacket Material: PVC, oil-resistant, black, 0.035" wall
- Jacket Color: Black
- Jacket Thickness: 0.362+/- 0.017 inches
- Rated Voltage: 600 V
- Temperature Range: -40°C to +90°C (static), -5°C to +90°C (dynamic)
- Bend Radius: 8X cable diameter (static and dynamic)
- Maximum Pull Tension: 84 pounds
- Capacitance: 33 pF/ft @ 1 kHz
- Inductance: 0.18 µH/ft
- Conductor DCR: 4.1 Ω/1000 ft
- Cable Dimensions: Flange x Traverse x Barrel - 18 x 12 x 8 inches
- Compliance: UL AWM 2587, CSA AWM I/ll 90°C / 600V, CE, RoHS, REACH
Buy the AlphaWire Series Xtra-Guard Control Cable: 85604BK005
Purchase the AlphaWire 85604BK005 control cable online today for reliable, high-flex performance in motion control, robotics, industrial automation, and sensing applications. Designed with durable PVC insulation and oil-resistant black jacket, this four-core cable supports continuous flexing and torsion, rated for 600V and rated IP67 or NEMA 6. Its rounded geometry ensures a liquid-tight installation, with a maximum pull tension of 84 pounds. Ideal for harsh environments requiring flexible, robust, and safe electrical connections in industrial and automotive sectors. Order now for quick delivery and dependable performance.
Get AlphaWire 85604BK005 today—built for high-flex, continuous motion control and industrial environments.
