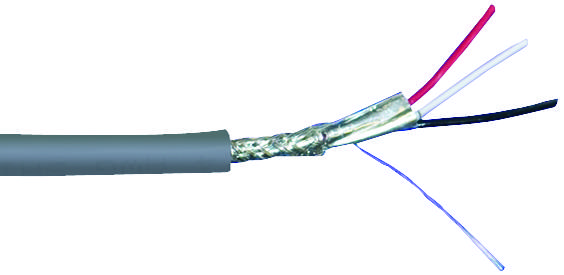

ALPHA WIRE 6328SL001 Shielded Control Cable
The product is a shielded multi-conductor cable with a PVC insulation and jacket, rated for 75°C and 300V, featuring aluminum/mylar tape shielding, 24 AWG conductors, and conforming to UL, CSA, and CE standards. Designed for reliable electrical performance, it has a temperature range of -20°C to 80°C, low capacitance, and a bend radius of 10 times its diameter. Suitable for control and instrumentation applications, the cable offers excellent shielding, abrasion resistance, and compliance with RoHS and Reach regulations. It is available in various lengths with spool options for easy installation.
ALPHA WIRE 6328SL001 Shielded Control Cable Specifications:
- Conductor: 24 AWG TC
- Insulation Wall Thickness: 0.010" PVC
- Jacket Wall Thickness: 0.032" PVC
- Shielding: Alum/Mylar Tape, 25% Overlap
- Foil Facing Out, Drain Wire 24 AWG TC
- Braid Coverage: 65%
- Temperature Range: -20°C to 80°C
- Voltage Rating: 300 V
- Capacitance: 32 pF/ft @1 kHz
- Ground Capacitance: 58 pF/ft @1 kHz
- Inductance: 0.19 μH/ft
- DCR Conductor: 26 Ω/1000 ft @20°C
- Outer Surface Material: PVC, RoHS compliant
- Bend Radius: 10X cable diameter
- Maximum Pull Tension: 20.2 lbs
- Spool Lengths: 100 ft, 500 ft, 1000 ft
Buy the Buy AlphaWire Part Number 6328SL001 Online
Order the shielded control cable with AlphaWire Part Number 6328SL001 online today to ensure high-quality electrical performance, excellent shielding, and compliance with industry standards including UL, CSA, CE, RoHS, and Reach. This durable cable features 24 AWG conductors, PVC insulation and jacket, aluminum/mylar tape shielding, and is rated for 75°C and 300V. Available in various lengths with spool options, it is ideal for control, instrumentation, and device wiring applications. Enjoy fast delivery and reliable service.
Buy AlphaWire Part Number 6328SL001 now and experience reliable shielding and high-performance control cabling for your industrial needs.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6328SL001?
You can click on the BUY or RFQ button to purchase 6328SL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6328SL001?
You can download the 6328SL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6328SL001?
ALPHA WIRE
