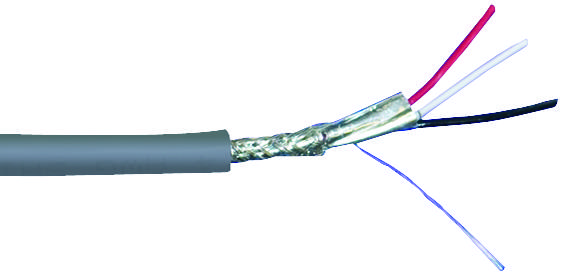

ALPHA WIRE 6331SL005 Shielded Signal Cable
The shielded cable assembly provides reliable signal transmission in industrial environments, featuring a 24 AWG TC conductor, PVC insulation, and a durable PVC jacket. It complies with UL, CSA, and CE standards, offering a temperature range of -20 to 80°C and a voltage rating of 300 V. Its construction includes alum/mylar foil shielding with drain wire and braid coverage, ensuring minimal electromagnetic interference. The assembly is available in various lengths, with specified bend radius and maximum pull tension, suitable for industrial automation and control applications, providing long-lasting durability and high performance.
ALPHA WIRE 6331SL005 Shielded Signal Cable Specifications:
- Conductor: 24 AWG TC
- Insulation Wall Thickness: 0.010" PVC
- Jacket Wall Thickness: 0.032" PVC
- Outer Diameter: 0.223" (max 0.235")
- Shield: Alum/Mylar Tape with 25% overlap, foil facing out, drain wire 24 AWG TC, braid coverage 65%
- Temperature Range: -20°C to +80°C
- Voltage Rating: 300 V
- Capacitance: 32 pf/ft @1 kHz
- Ground Capacitance: 58 pf/ft @1 kHz
- Inductance: 0.19 μH/ft
- DCR Conductor: 26 Ω/1000 ft @20°C
- DCR Shield: 5.5 Ω/1000 ft @20°C
- Bend Radius: 10x cable diameter
- Pull Tension: 31 lbs maximum
- Length Options: 1000 ft, 500 ft, 100 ft
- Standards: UL Style 2464, CSA TYPE CMG, CE RoHS, REACH compliant
Buy the AlphaWire 6331 – Reliable Shielded Signal Cable for Industrial Applications
Order AlphaWire shielded signal cable online today and ensure reliable performance in industrial environments. With UL, CSA, and CE certifications, this 24 AWG cable features alum/mylar shielding, PVC insulation, and a durable PVC jacket. It’s suitable for industrial automation, control systems, and harsh conditions, providing excellent flexibility with a bend radius of 10 times the cable diameter and a maximum pull tension of 31 lbs. Experience dependable signal integrity and easy installation with this high-quality, RoHS-compliant cable.
Get AlphaWire 6331 today—designed for reliable signal transmission and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6331SL005?
You can click on the BUY or RFQ button to purchase 6331SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6331SL005?
You can download the 6331SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6331SL005?
ALPHA WIRE
