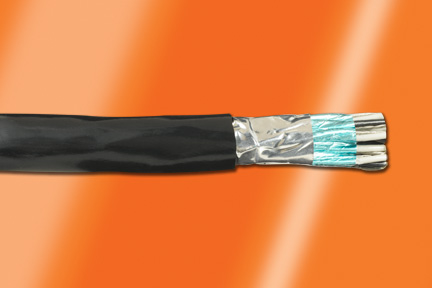

ALPHA WIRE 6346SLATE100 Slate Multi-Conductor Cable
The ALPHA WIRE 6346-SLATE-100 is a multi-conductor cable designed for reliable signal transmission and power distribution in industrial environments. It features a durable slate jacket, PVC insulation for electrical protection, and 20 AWG conductors for efficient current carrying capacity. The color-coded conductors (black, red, and white) simplify identification and organization. This RoHS compliant cable is suitable for applications requiring flexibility, durability, and adherence to environmental regulations.
ALPHA WIRE 6346SLATE100 Slate Multi-Conductor Cable Specifications:
- Conductor AWG: 20 (7/28) AWG TC
- Insulation Wall: 0.016" Wall, Nom. PVC
- Jacket Wall: 0.020" Wall, Nom., PVC
- Jacket Color: Slate, Black
- Twists per Foot: 5.3 Twists/foot (min)
- Temperature Range: -20 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 26 Lbs, Maximum
- Voltage Rating: 300 VRMS
- Capacitance: 30 pf/ft @1 kHz, Nominal Conductor to Conductor
- Inductance: 0.19 µH/ft, Nominal
- Conductor DCR: 10.2 Ω/1000ft @20°C, Nominal
- UL Style: AWM/STYLE 2509
- UL Voltage: 80°C / 300 VRMS
- UL Temperature: 75°C
- UL Flammability: VW-1
- CSA CMG: 60°C
- CSA FT4: FT4
- CE Compliance: EU Low Voltage Directive 2006/95/EC
- RoHS Compliant: Yes
- REACH Compliant: Yes
- Packaging 1000 FT: 12 x 10 x 5 Continuous length
- Packaging 500 FT: 12 x 4.5 x 3.5 Continuous length
- Packaging 100 FT: 6.5 x 4 x 2.5 Continuous length
