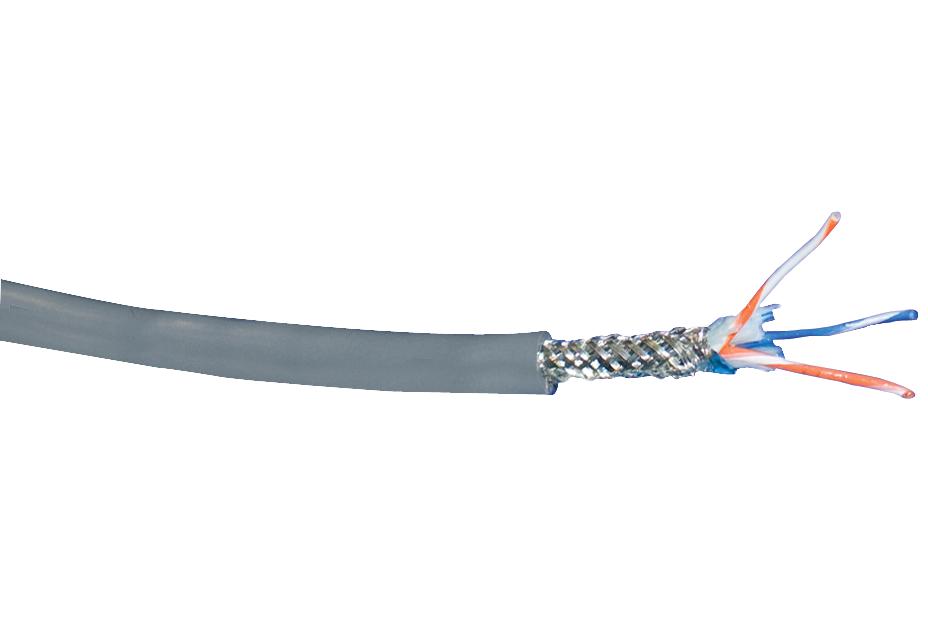

ALPHA WIRE 6413SL005 Shielded Computer Cable
The 6413SL005 is a shielded 24 AWG computer cable designed for low voltage applications. It features a twisted pair construction with blue/white and orange/white color coding, and a durable PVC jacket. The cable meets UL 1000V ratings and complies with RoHS and REACH standards. Its technical specifications include a voltage rating of 300 V, characteristic impedance of 120 Ω, mutual capacitance of 12.8 pF/ft at 1 kHz, and a bend radius of 10 times the cable diameter. Ideal for electronic control systems and data transmission requiring high flexibility and shielding.
ALPHA WIRE 6413SL005 Shielded Computer Cable Specifications:
- Conductor: 24 AWG TC
- Insulation: Polyethylene, 0.016" Wall
- Color Code: Blue/White, Orange/White
- Pair: Twists 8.0 per foot minimum
- Cable Assembly Twists: 4.4 per foot minimum
- Shield: Alum/Mylar Tape, 25% Overlap, Foil Facing Out
- Jacket: PVC, 0.035" Wall, 24 AWG TC
- Voltage Rating: 300 V
- Characteristic Impedance: 120 Ω
- Mutual Capacitance: 12.8 pF/ft at 1 kHz
- Ground Capacitance: 23 pF/ft at 1 kHz
- Conductor DCR: 26 Ω per 1000 ft at 20°C
- Shield DCR: 2.5 Ω per 1000 ft at 20°C
- Temperature Range: -20°C to 80°C
- Bend Radius: 10X Cable Diameter
- Maximum Lengths: 1000 FT, 500 FT, 100 FT
Buy the Buy Alpha Wire Part Number 6413SL005 Online
Purchase the Alpha Wire 6413SL005 shielded computer cable online to ensure quality and durability for your electronic and control projects. Featuring a twisted pair structure with blue/white and orange/white color coding, this 24 AWG cable offers excellent shielding with alum/mylar tape and a PVC jacket. It is UL and RoHS compliant, rated for 300 V, with characteristic impedance of 120 Ω, and includes detailed specifications like mutual capacitance of 12.8 pF/ft at 1 kHz, making it ideal for low voltage data transmission and control applications. Buy now for fast delivery and dependable performance.
Order your Alpha Wire Series6413SL005 shielded cable today and enhance your electronic control systems with reliable, high-quality low voltage wiring.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6413SL005?
You can click on the BUY or RFQ button to purchase 6413SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6413SL005?
You can download the 6413SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6413SL005?
ALPHA WIRE
