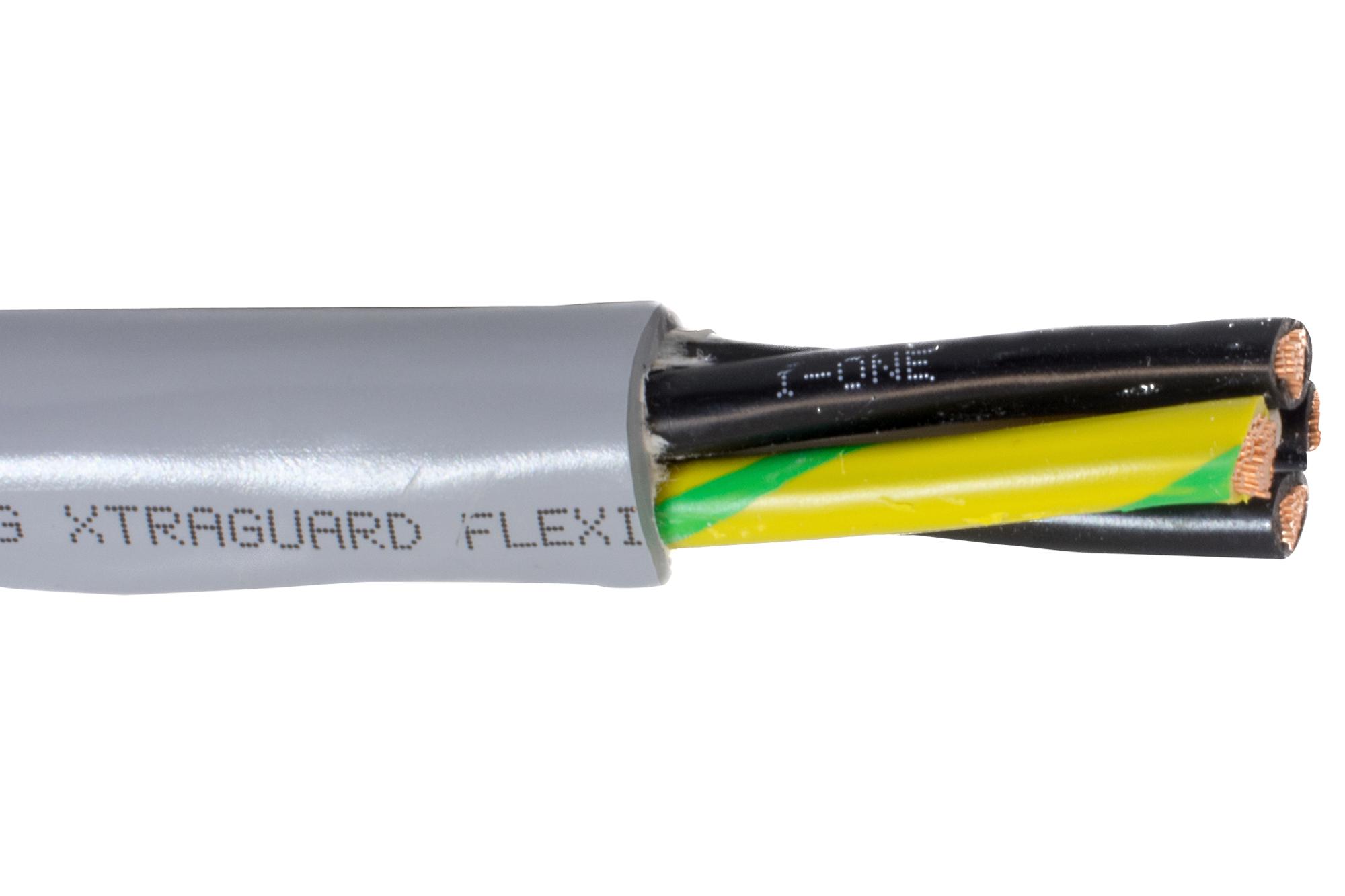

ALPHA WIRE 652405SL005 Flexible Control Cable
Alpha Wire's 652405 flexible control cable is designed for reliable performance in industrial environments. Compliant with UL 2587 and AWM 2587 standards, this 24 AWG cable features a PVC insulation, oil resistance, and a durable jacket suitable for static and dynamic applications. Rated for 600V, it offers excellent electrical properties including capacitance of 20.6 pF/ft at 1 kHz and low inductance. Its temperature range is -40°C to 90°C, with a bend radius of 5X cable diameter, ensuring ease of installation and longevity under demanding conditions.
ALPHA WIRE 652405SL005 Flexible Control Cable Specifications:
- Conductor Size: 24 AWG
- Conductor Material: Bare copper
- Insulation Material: PVC
- Jacket Material: PVC, oil resistant
- Temperature Range: -40°C to 90°C
- Voltage Rating: 600V
- Capacitance: 20.6 pF/ft @1 kHz
- Inductance: 0.24 pH/ft
- Conductor Resistance: 23.9 Ω/000 ft @20°C
- Bend Radius: 5X cable diameter (static and dynamic)
- Pull Tension: Max 17.6 lbs
- Lengths Available: 1000 ft, 500 ft, 100 ft
- Certifications: UL 2587, AWM 2587, CE, RoHS, REACH
- Compliance: Meets EU Directives 2011/65/EU, 2015/863/EU, China RoHS SJ/T 11364-2014
Buy the Alpha Wire 652405 – Reliable Control Cable for Industrial Applications
Order the Alpha Wire 652405 flexible control cable online today to ensure superior electrical performance and durability in demanding industrial environments. Designed with 24 AWG copper conductors and PVC insulation, it guarantees excellent flexibility, oil resistance, and compliance with UL and European standards. Perfect for control systems, automation, and machinery wiring, this cable offers a temperature range of -40°C to 90°C and is rated for 600V. Secure fast delivery and expert assistance when you buy online now!
Buy Alpha Wire 652405 flexible control cable now and experience unmatched reliability and high-performance electrical connectivity for industrial automation.
Frequently Asked Questions
Where can I buy ALPHA WIRE 652405SL005?
You can click on the BUY or RFQ button to purchase 652405SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 652405SL005?
You can download the 652405SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 652405SL005?
ALPHA WIRE
