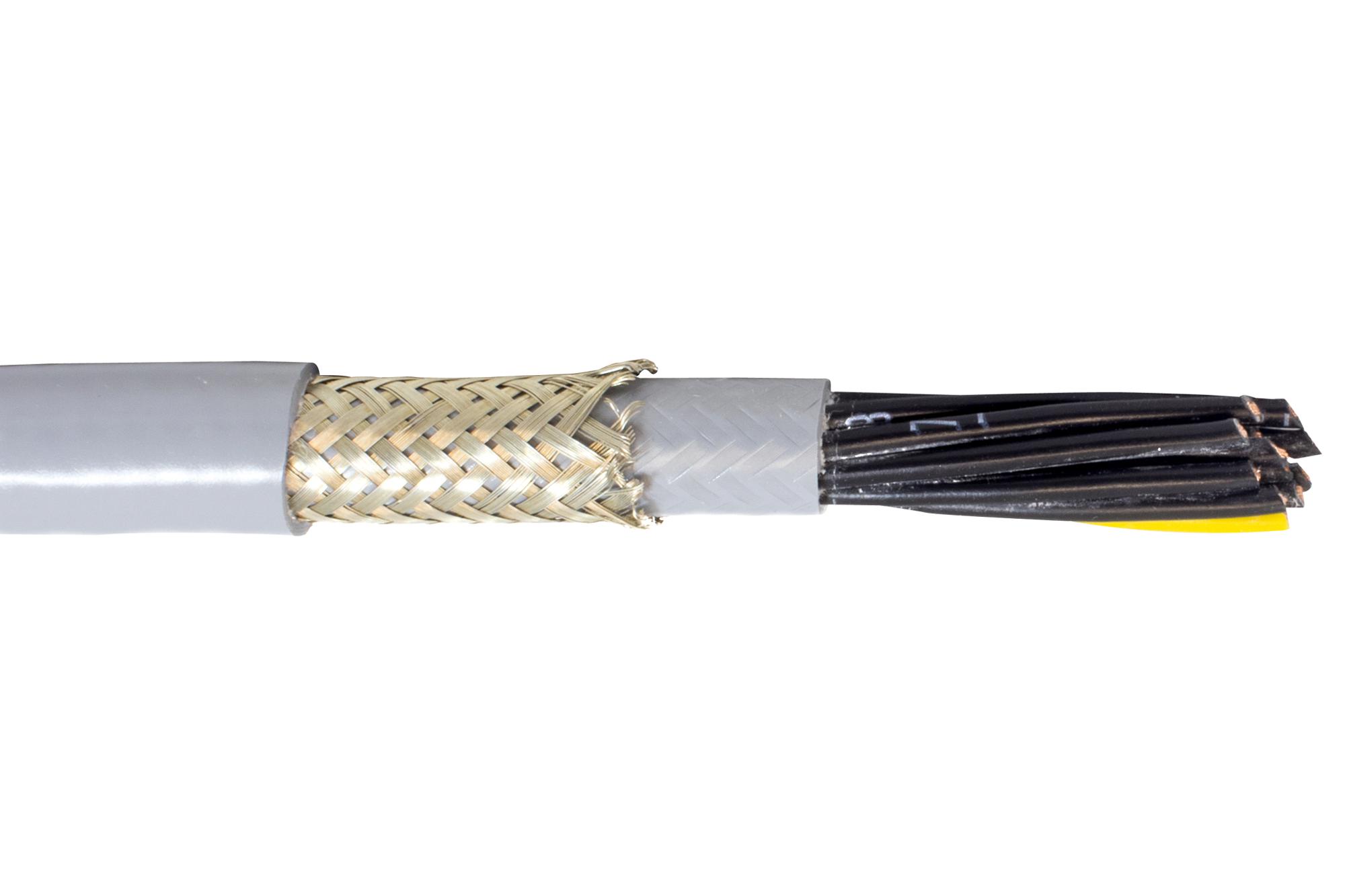

ALPHA WIRE 65265CYSL005 Control Cable
The AlphaWire 65265CY insulated control cable is designed for industrial electrical applications, featuring 7/34 AWG bare copper conductors with a PVC insulation and oil-resistant jacket. It has an 85% copper braid shield for enhanced electromagnetic compatibility, and the cable is rated for 600V and operating temperatures from -40°C to 90°C. The cable offers a minimum bend radius of 8 times the diameter and a maximum pull tension of 17.5 lbs, making it suitable for flexible, high-performance industrial environments. Compliant with RoHS, CE, UL, and CSA standards, it ensures safety and environmental compliance.
ALPHA WIRE 65265CYSL005 Control Cable Specifications:
- Conductor: 26 AWG Bare Copper
- Insulation: PVC, 0.022" Wall
- Jacket: PVC, 0.030" Wall, Oil Resistant, Slate Color
- Shield: Copper Braided, 85% Coverage
- Voltage Rating: 600V
- Temperature Range: -40°C to 90°C (static), -5°C to 90°C (dynamic)
- Bend Radius: 8X Cable Diameter
- Pull Tension: Max 17.5 Lbs
- Capacitance: 24.2 pF/ft @1 kHz
- Ground Capacitance: 44 pF/ft @1 kHz
- Inductance: 0.26 pH/ft
- DCR Conductor: 38 Ω/1000ft at 20°C
- DCR Shield: 3.4 Ω/1000ft at 20°C
- Length Options: 1000 ft, 500 ft, 100 ft
Buy the Buy AlphaWire 65265CY Part Number 65265CY Online
Purchase the high-quality control cable from AlphaWire today, designed for industrial environments with flexible copper conductors, a shield for EMI protection, and oil-resistant PVC insulation. Rated for 600V and operating in temperatures from -40°C to 90°C, this cable ensures reliability and safety. Certified for RoHS, CE, UL, and CSA standards, it guarantees compliance and environmental friendliness. Easy to install with a minimum bend radius of 8 times the diameter and a maximum pull tension of 17.5 lbs, making it ideal for demanding industrial applications.
Get AlphaWire 65265CY today—built for precision, flexibility, and long-lasting durability in industrial control applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 65265CYSL005?
You can click on the BUY or RFQ button to purchase 65265CYSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 65265CYSL005?
You can download the 65265CYSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 65265CYSL005?
ALPHA WIRE
