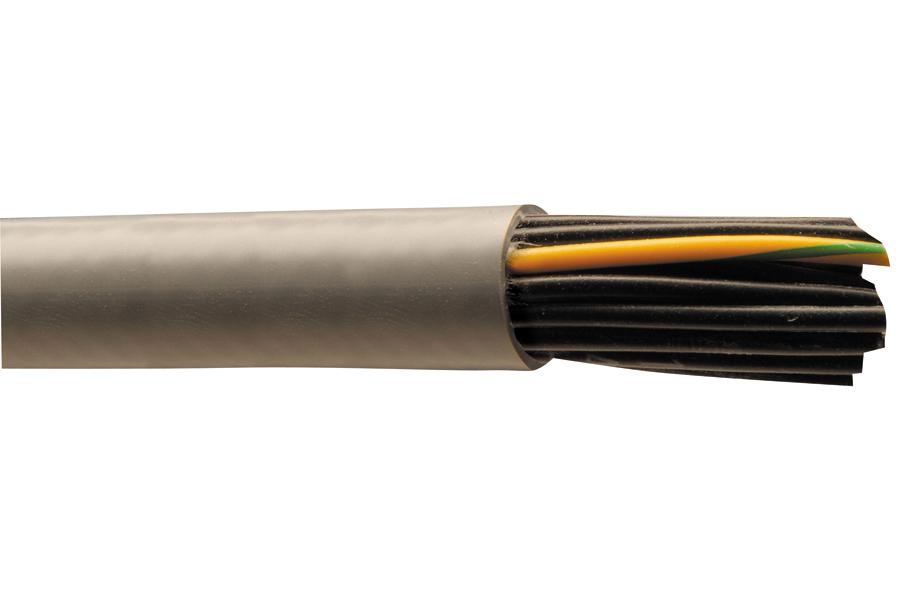

ALPHA WIRE 65607SL005 Flexible Control Cable
The ALPHA WIRE 65607 SL005 is a highly flexible, multi-conductor control cable designed for demanding industrial environments. This cable consists of 7 stranded, 16 AWG bare copper conductors insulated with PVC and cabled together. The slate-colored, oil-resistant PVC jacket provides excellent protection and durability. It is commonly used in applications requiring frequent bending and movement, such as robotics, automation, and control systems. The cable is RoHS compliant and meets various industry standards, ensuring reliable performance and safety.
ALPHA WIRE 65607SL005 Flexible Control Cable Specifications:
- Conductor AWG: 16
- Number of Conductors: 7
- Insulation Material: PVC
- Jacket Material: PVC
- Jacket Color: Slate
- Temperature Range (Static): -40 to 90°C
- Temperature Range (Dynamic): -5 to 90°C
- Bend Radius (Static): 5X Cable Diameter
- Bend Radius (Dynamic): 5X Cable Diameter
- Pull Tension (Max): 143 Lbs
- Voltage Rating: 600 VRMS
- Capacitance: 33 pF/ft @ 1 kHz
- Inductance: 0.18 µH/ft
- Conductor DCR: 4.1 Ω/1000ft @ 20°C
- UL Style: 2587
- CSA Rating: AWM I/II A/B
- Flammability: FT1
- REACH Compliant: Yes
- RoHS Compliant: Yes
- Packaging (1000 FT): 20 x 11 x 8 inches
- Packaging (500 FT): 16 x 11 x 8 inches
- Packaging (100 FT): 12 x 10 x 5 inches
Buy the 65607 SL005 ALPHA WIRE Flexible Control Cable | myMectronic
Purchase the ALPHA WIRE 65607 SL005 Flexible Control Cable securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 65607SL005?
You can click on the BUY or RFQ button to purchase 65607SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 65607SL005?
You can download the 65607SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 65607SL005?
ALPHA WIRE
