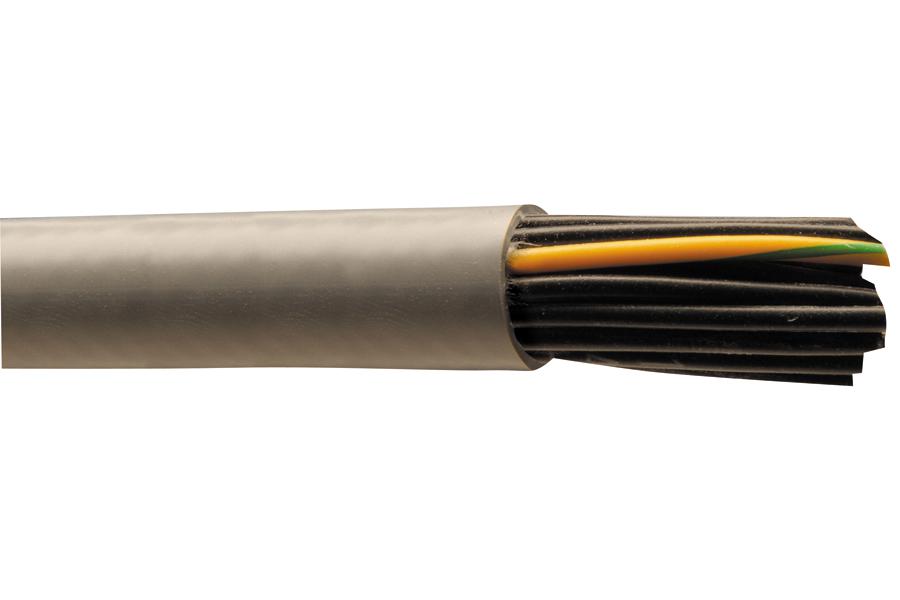

ALPHA WIRE 65612SL005 Flexible Control Cable
The Alpha Wire 65612 SL005 is a highly flexible control cable suitable for applications requiring frequent bending and movement. Constructed with a 16 AWG stranded bare copper conductor, it offers reliable signal transmission. The PVC insulation and jacket provide excellent durability and oil resistance, while the twisted pair design minimizes crosstalk. This cable is ideal for use in factory automation, robotics, and other dynamic environments where flexibility and reliability are paramount. It meets UL, CSA, VDE, and CE standards, ensuring compliance with international regulations.
ALPHA WIRE 65612SL005 Flexible Control Cable Specifications:
- Component 1: 12 X 1 COND
- Conductor: 16 (26/30) AWG Bare Copper
- Insulation: 0.022" Wall, Nom. PVC
- Diameter: 0.060"
- Print: ALPHA WIRE-* P/N 65612 12C 16 AWG XTRAGUARD(R) FLEXIBLE CONTROL CABLE RU AWM 2587 CLASS K --- LLXXXXXX CSA AWM I/II A/B FT1 90C 600V CE ROHS (SEQ FOOTAGE)
- Color: BLACK #1 to BLACK #11, YELLOW/GREEN
- Cable Assembly: 12 Components Cabled
- Twists: 2.4 Twists/foot (min)
- Orientation: Components to be arranged from INSIDE LAYER to OUTSIDE LAYER
- Jacket: 0.049" Wall, Nom.,PVC, Oil Resistant
- Jacket Diameter: 0.536+/- 0.026"
- Jacket Separator: Tissue Tape, 25% Overlap, Min.
- UL Style: AWM/STYLE 2587
- UL Voltage Rating: 90°C / 600 VRMS
- CSA Rating: AWM I/II A/B
- Other: VDE 0472, Section 803 Oil Test
- CE Compliance: EU Low Voltage Directive 2014/35/EC
- Temperature Range: -40 to 90°C(static), -5 to 90°C (dynamic)
- Bend Radius: 5X Cable Diameter(static/dynamic)
- Pull Tension: 245 Lbs, Maximum
- Voltage Rating: 600 VRMS
- Capacitance: 33 pF/ft @1 kHz, Nominal Conductor to Conductor
- Inductance: 0.18 µH/ft, Nominal
- Conductor DCR: 4.2 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 30 x 14 x 12 Continuous length
- Packaging 500 FT: 20 x 11 x 8 Continuous length
- Packaging 100 FT: 16 x 11 x 8 Continuous length
