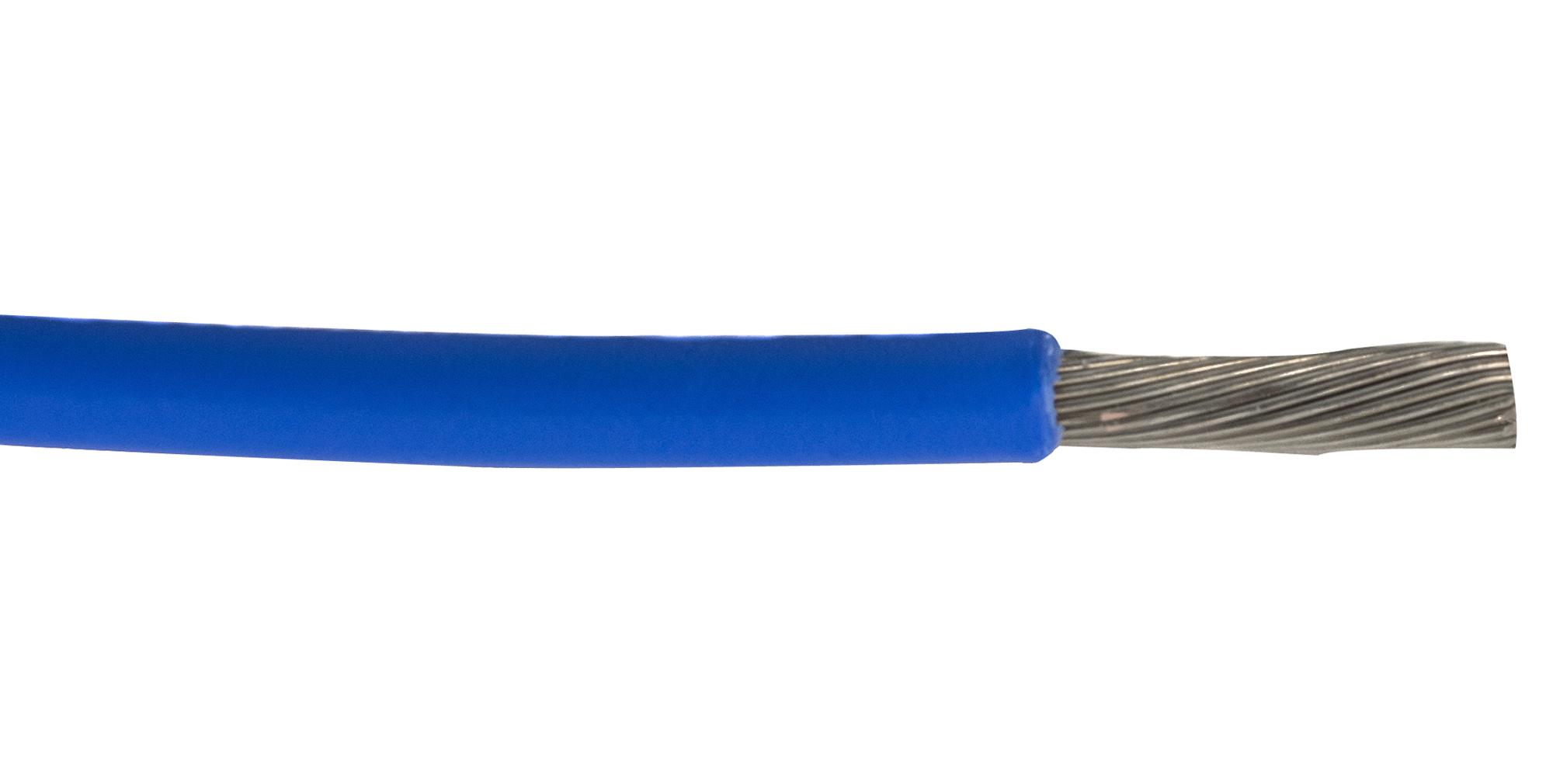

ALPHA WIRE 67075BL321 industrial control cable
Alpha Wire's ECOCABLE 67075 is a highly flexible, flame-retardant electronic cable designed for efficient wiring in industrial and electronic applications. Constructed with 0.75 mm² tinned copper conductors and modified Polyphenylene Insulation, this cable offers excellent durability, thermal stability from -40°C to 105°C, and compliance with UL, CSA, and CE standards. Available in multiple colors, it features a 600V voltage rating, a minimum bend radius of 10x cable diameter, and is suitable for challenging environments requiring reliable, low-smoke, and flame-retardant wiring solutions.
ALPHA WIRE 67075BL321 industrial control cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Diameter: 0.75 mm (42/0.16) mm
- Insulation Wall Thickness: 0.260 mm
- Voltage Rating: 600 V (UL, CSA, CE)
- Temperature Range: -40°C to 105°C
- Bend Radius: 10x Cable Diameter
- DCR (Conductor Resistance): 27 Q/km @20°C
- Flame Resistance: IEC 60332-2
- Certifications: UL AWM 11028, CSA AWM IB FT1, CE Low Voltage Directive
- Available Lengths: 50m, 100m, 500m
- Color Options: Black, Red, White, Blue, Green, Brown, Yellow, Orange, Violet, Green/Yellow
Buy the AlphaWire 67075 U–Reliable Flame-Retardant Cable for Industrial Applications
Order AlphaWire 67075 online today for a high-quality, flame-retardant, tinned copper conductor cable suitable for industrial wiring, electronic equipment, and compliant with UL, CSA, and CE standards. With a temperature range from -40°C to 105°C, and rated for 600V, this flexible cable ensures long-lasting performance and safety. Available in multiple colors and lengths, it’s designed for easy installation in challenging environments, providing reliable durability and excellent electrical properties for various industrial applications. Purchase now for fast shipping and best prices.
Get AlphaWire 67075 today—built for durability, flame resistance, and reliable performance in demanding industrial environments.
