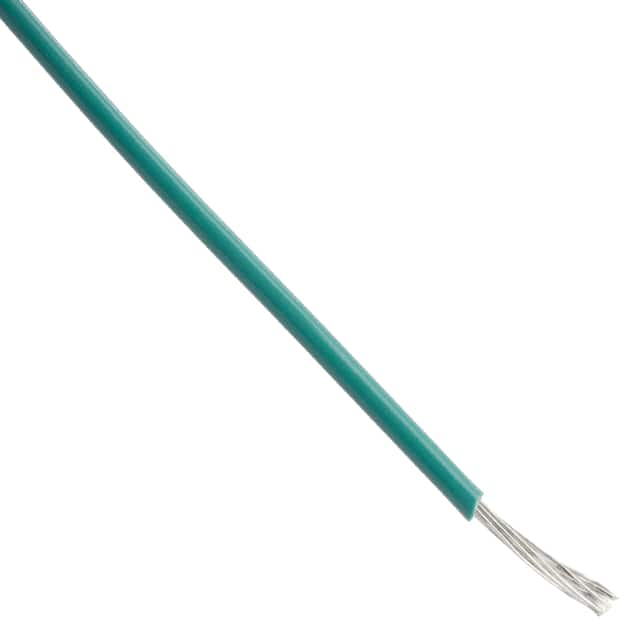

ALPHA WIRE 6716GR001 Hook Up Wire
ALPHA WIRE's 6716 GR001 is a 16 AWG hook-up wire designed for a wide range of industrial and commercial applications. The wire features a robust construction with a 16 (26/30) AWG TC conductor and a modified polyphenylene ether insulation, providing excellent electrical performance and durability. It is RoHS compliant, meeting environmental standards, and is suitable for use in various equipment and systems where reliable power transmission is required. The wire's flexibility and resistance to temperature variations make it ideal for demanding environments.
ALPHA WIRE 6716GR001 Hook Up Wire Specifications:
- Conductor AWG: 16 (26/30) AWG TC
- Insulation Material: Modified Polyphenylene Ether
- Insulation Diameter: 0.011" Nominal
- Overall Diameter: 0.081" +/- 0.002"
- Temperature Range: -40 to 105°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 20.4 Lbs, Maximum
- Voltage Rating: 600 VRMS
- Inductance: 0.03 µH/ft, Nominal
- Conductor DCR: 4.4 Ω/1000ft @20°C, Nominal
- Colors Available: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet, Green/Yellow, Dark Blue
- UL Style: AWM/STYLE 11028
- CSA Rating: C(RU) AWM I A/B FT1
- Halogen-Free: Yes
- Flame Behavior: IEC 60332-2
- EU Compliance: EU Low Voltage Directive 2006/95/EC
- REACH Compliance: Compliant
- RoHS Compliant: Yes
- Lead Limit: 0.1% by weight (1000 ppm)
- Mercury Limit: 0.1% by weight (1000 ppm)
- Cadmium Limit: 0.01% by weight (100 ppm)
- Hexavalent Chromium Limit: 0.1% by weight (1000 ppm)
- PBB Limit: 0.1% by weight (1000 ppm)
- PBDE Limit: 0.1% by weight (1000 ppm)
- DEHP Limit: 0.1% by weight (1000 ppm)
- BBP Limit: 0.1% by weight (1000 ppm)
- DBP Limit: 0.1% by weight (1000 ppm)
- DIBP Limit: 0.1% by weight (1000 ppm)
