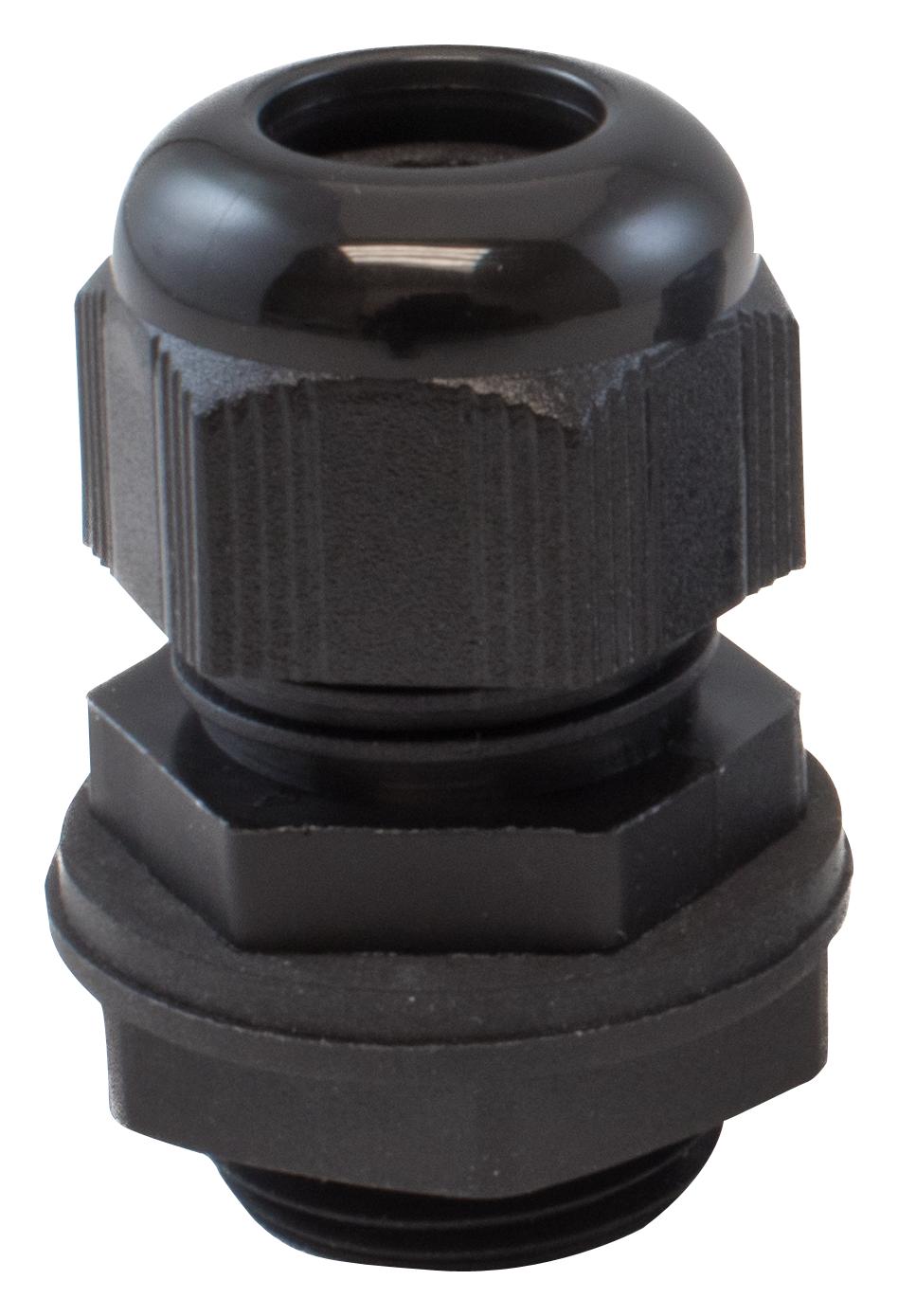

ALPHA WIRE PNC34BK080 Cable Gland
The PNC3/4 BK080 Alpha Fit® Standard Dome Design NPT Cable Gland provides reliable cable strain relief and environmental protection. Made from durable polyamide 6 in black, it features rubber seals that prevent water ingress and withstand harsh conditions. With an IP68 rating (5 bar, 30 minutes) and IP66, it offers dust, dirt, and sand resistance, ensuring watertight performance. Suitable for industrial automation, electrical systems, and renewable energy applications, it includes a locknut and gasket. UL-listed 514, CSA certified C22.2, UL94V-2 flammability rated, with a temperature range of -20°C to +100°C permanently and -30°C to +150°C intermittently, ensuring versatile use.
ALPHA WIRE PNC34BK080 Cable Gland Specifications:
- Material: Polyamide 6 (PA 6)
- Color: Black, RAL 9005
- Protection Class: IP68 5 Bar for 30 min, IP66
- Flammability: UL94V-2
- Temperature Rating: Permanent -20°C to +100°C, Intermittent -30°C to +150°C
- Thread Type: NPT according to ANSI B1.20.1
- Approvals: UL 514, CSA C22.2
- Clamping Range: 10.0-14.0 mm, Thread Length: 15 mm, Spanner Width: 21.34 mm
- Outer Diameter (SW): 27 mm, Part Number: PNC34BK080
Buy the Buy Alpha Wire Cable Gland Part Number PNC34BK080 Online
Purchase the Alpha Wire PNC34BK080 cable gland online to ensure your electrical installations are secure, environmentally sealed, and compliant with industry standards. This robust component offers excellent water and dust resistance with an IP68 rating, suitable for demanding industrial applications. Made from durable polyamide 6 with rubber seals, it provides dependable protection against harsh conditions. Certified UL and CSA, with wide temperature capabilities, it guarantees safety, longevity, and performance for automation, electrical, and renewable energy projects. Order now for quick delivery and seamless integration.
Buy Alpha Wire PNC34BK080 now and experience unmatched reliability and performance in industrial sealing and environmental protection.
Frequently Asked Questions
Where can I buy ALPHA WIRE PNC34BK080?
You can click on the BUY or RFQ button to purchase PNC34BK080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PNC34BK080?
You can download the PNC34BK080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PNC34BK080?
ALPHA WIRE
