ALPHA WIRE 85223CYBK005 Control Cable

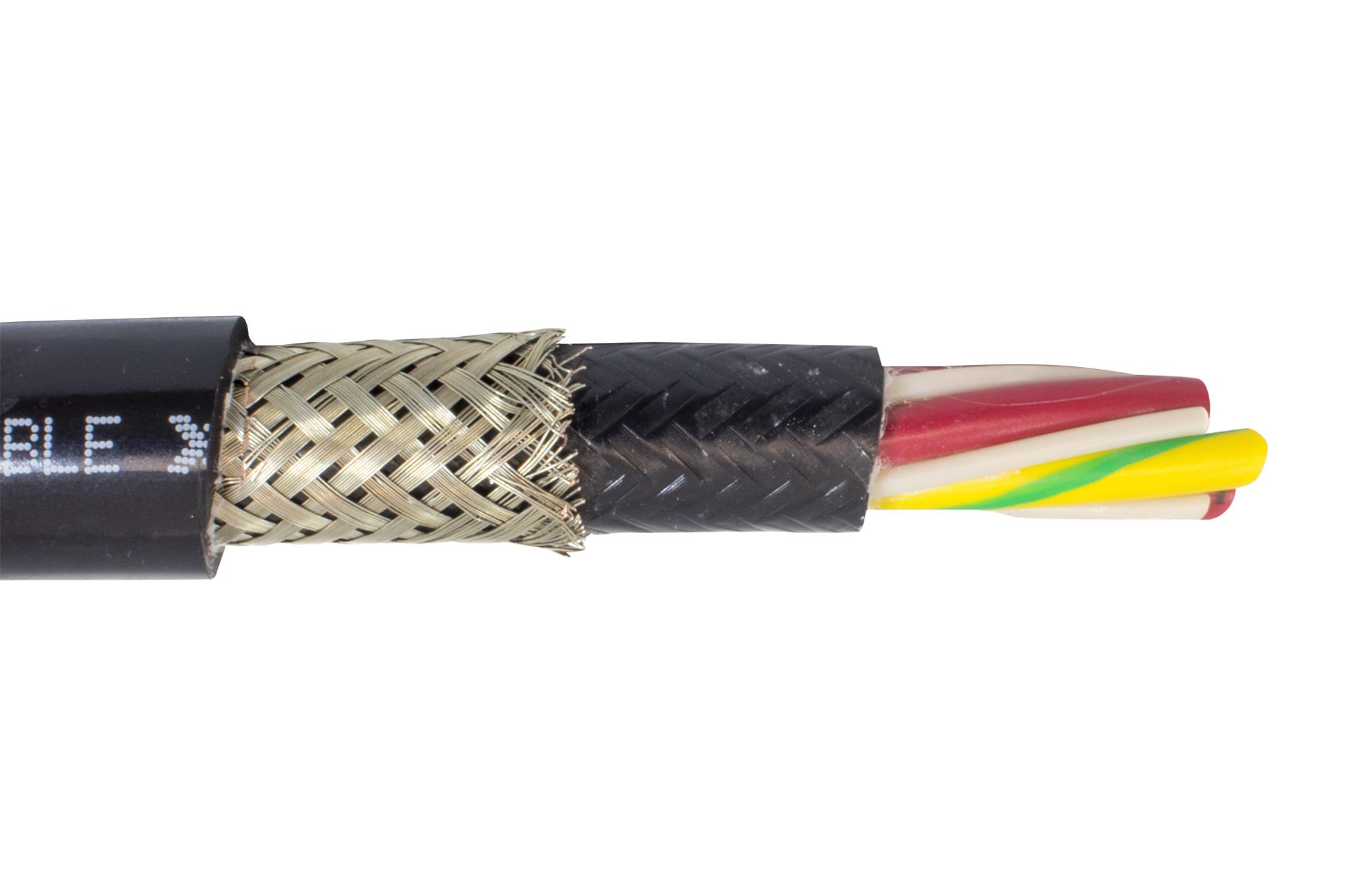

The product is a three-conductor flexible control cable with a black PVC jacket, oil-resistant insulation, and tinned copper braid shield for EMI protection. Designed for dynamic and static applications, it supports high flexibility, with a temperature range of -40°C to 90°C. It has a voltage rating of 600V, a capacitance of 31 pF/ft, and features 8 twists per foot for optimal signal integrity. The cable’s robust construction makes it suitable for industrial automation, control systems, and electronics requiring reliable, shielded wiring solutions.
ALPHA WIRE 85223CYBK005 Control Cable Specifications:
- Temperature Range: -40°C to 90°C (static), -5°C to 90°C (dynamic)
- Voltage Rating: 600V
- Capacitance: 31 pF/ft @ 1 kHz
- Ground Capacitance: 56 pF/ft @ 1 kHz
- Inductance: 0.22 pH/ft
- Conductor Resistance: 16.1 Ω/1000ft @ 20°C
- Conductor Material: Tinned Copper
- Dielectric Material: PVC, Oil-resistant
- Jacket Thickness: 0.035 inches, Black PVC
- Shield: Tinned Copper Braid, 85% coverage
- Twist Rate: 8 twists per foot
- Bend Radius: 8 times the cable diameter
- Maximum Pull Tension: 22.1 lbs
- Connector Compatibility: Suitable for industrial and control panel wiring
Buy the Buy Alpha Wire Control Cable Part Number 85223CY Online
Order the Alpha Wire control cable online today and enjoy the versatility of a flexible, oil-resistant insulated wire with a tinned copper braid shield. Designed for demanding industrial applications, this cable combines durability with excellent signal integrity. Its robust construction supports static and dynamic environments, providing consistent performance across temperature ranges from -40°C to 90°C. With a 600V voltage rating and 85% copper braid shield coverage, it’s ideal for automation, control systems, and electrical wiring that requires high reliability and flexibility in harsh environments.
Buy Alpha Wire 85223CY control cable now and experience reliable shielding, flexible performance, and offering robust insulation for industrial automation.
Frequently Asked Questions
Where can I buy ALPHA WIRE 85223CYBK005?
You can click on the BUY or RFQ button to purchase 85223CYBK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 85223CYBK005?
You can download the 85223CYBK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 85223CYBK005?
ALPHA WIRE
