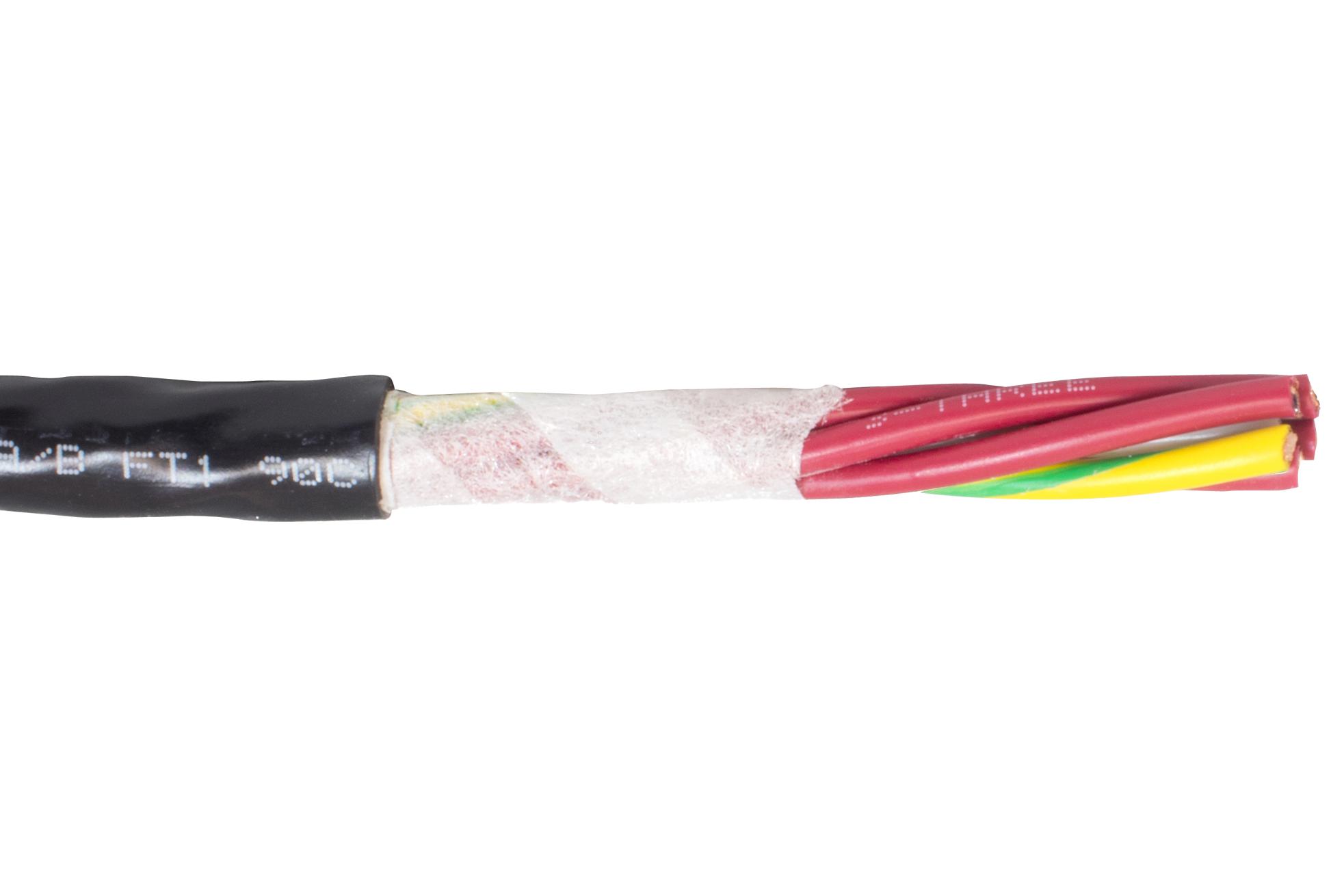

ALPHA WIRE 852407BK005 Multi-Conductor Cable
The ALPHA WIRE 852407 is a flexible multi-conductor cable designed for demanding applications requiring continuous flexing and oil resistance. Constructed with 24 AWG bare copper conductors insulated with PVC, this cable offers reliable signal transmission and durability. The oil-resistant PVC jacket provides protection against environmental factors, while the RoHS compliance ensures adherence to environmental regulations. This cable is ideal for applications in industrial automation, robotics, and other environments where flexibility and reliability are paramount.
ALPHA WIRE 852407BK005 Multi-Conductor Cable Specifications:
- Conductor AWG: 24
- Number of Conductors: 7
- Insulation Material: PVC
- Jacket Material: PVC
- Jacket Thickness: 0.035"
- Overall Diameter: 0.328"
- Temperature Range (Static): -40 to 90°C
- Temperature Range (Dynamic): -5 to 90°C
- Bend Radius (Static): 8X Cable Diameter
- Bend Radius (Dynamic): 8X Cable Diameter
- Pull Tension (Max): 26 Lbs
- Voltage Rating: 600 VRMS
- Capacitance: 21.2 pF/ft @ 1 kHz
- Inductance: 0.24 µH/ft
- Conductor DCR: 22.9 Ω/1000ft @ 20°C
- UL Style: 10012, 2587
- CSA Rating: C(RU) AWM I/II A/B
- RoHS Compliant: Yes
- REACH Compliant: Yes
- Packaging (1000 FT): 18 x 12 x 8 inches
- Packaging (500 FT): 12 x 12 x 3.5 inches
- Packaging (100 FT): 12 x 4.5 x 3.5 inches
Buy the 852407 ALPHA WIRE Multi-Conductor Cable | myMectronic
Purchase the ALPHA WIRE 852407 Multi-Conductor Cable securely online and ensure reliable performance for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 852407BK005?
You can click on the BUY or RFQ button to purchase 852407BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 852407BK005?
You can download the 852407BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 852407BK005?
ALPHA WIRE
