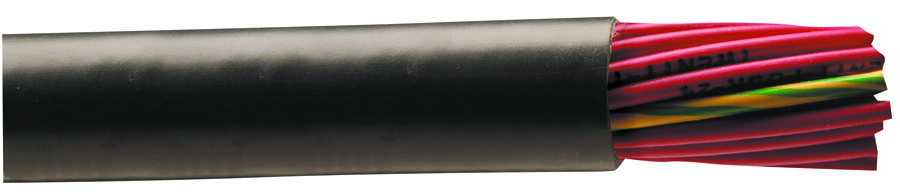

ALPHA WIRE 85803BK005 Flexible Control Cable
The 85803BK005 is a high-performance, flexible control cable designed for industrial and automation applications. Featuring 18 AWG bare copper conductors with PVC insulation and oil-resistant jackets, it supports continuous flexing with a voltage rating of 600V. Its compact dimensions and durable construction make it suitable for environments requiring reliable power transmission and control signals, compliant with UL, CSA, and EU standards. The cable's robust physical and electrical properties ensure optimal performance in dynamic settings, making it ideal for manufacturing, machinery, and electrical systems demanding high flexibility and safety.
ALPHA WIRE 85803BK005 Flexible Control Cable Specifications:
- Conductor: 18 AWG Bare Copper
- Conductor Diameter: 0.052"
- Insulation Wall Thickness: 0.022" PVC
- Jacket Thickness: 0.035" PVC, Oil Resistant
- Jacket Color: Black
- Twists per Foot: 6.0
- Core Wrap: REMAY Tape with 25% Overlap
- Overall Diameter: 0.298" ± 0.016"
- UL Style: 10012 90°C / 600V
- AWM Style: 2587 90°C / 600V
- CSA: AWM WII A/B 90°C / 600V
- VDE: 0472, Section 803 Oil Test
- Temperature Range: -40°C to 90°C static, -5°C to 90°C dynamic
- Bend Radius: 8X Cable Diameter
- Pull Tension: Max 40 Lbs
- Capacitance: 27 pF/ft @1 kHz
- Inductance: 0.19 μH/ft
- Conductor DCR: 6.5 Ω/1000 ft @ 20°C
- Physical Lengths Available: 1000 ft, 500 ft, 100 ft
- Standards: RoHS, REACH, CE
Buy the Alpha Wire 85803 – Reliable Control Cable for Industrial Applications
Order the Alpha Wire 85803 control cable online today to ensure reliable power and control signal transmission in industrial environments. Manufactured with 18 AWG copper conductors, PVC insulation, and oil-resistant jackets, this cable supports continuous flexing for dynamic applications. Its UL, CSA, and EU certifications guarantee safety and compliance, making it ideal for manufacturing, machinery, and automation systems. With options for various lengths and certification standards, purchasing online guarantees quick delivery and consistent quality for your projects, enhancing operational efficiency.
Buy Alpha Wire 85803 now and experience unmatched flexibility, durability, and safety for your industrial and automation projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 85803BK005?
You can click on the BUY or RFQ button to purchase 85803BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 85803BK005?
You can download the 85803BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 85803BK005?
ALPHA WIRE
