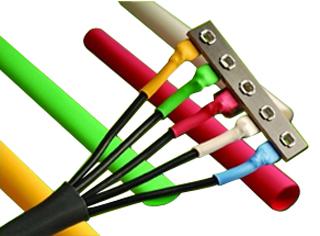

ALPHA WIRE F221332YL103 Heat Shrink Tubing
This high-quality heat shrinkable tubing is made from cross-linked polyolefin, providing reliable electrical insulation and environmental protection. It features a 2:1 shrink ratio, full recovery temperature of 121°C, and operates within -55°C to 135°C. Suitable for shielding, wire insulation, and bundling in electrical and electronic applications, it complies with UL 600V standards and RoHS directives. Available in multiple colors including black, white, and yellow, it offers excellent chemical resistance, low water absorption, and long shelf life of five years, ensuring durability in demanding environments.
ALPHA WIRE F221332YL103 Heat Shrink Tubing Specifications:
- Shrink Ratio: 2:1
- Full Recovery Temperature: 121°C
- Minimum Shrink Temperature: -55°C
- Operating Temperature Range: -55°C to 135°C
- Color Options: Black, White, Clear, Red, Yellow, Blue, Green
- Material: Cross-linked Polyolefin
- Water Absorption: 0.50%, Max
- Dielectric Strength: 500 V/mil, Min
- Volume Resistivity: 1x10^4 ohm-cm, Min
- Shelf Life: 5 Years @ 18 to 35°C
- Chemical Resistance: Good resistance to chemicals, no corrosion
- Environmental Compliance: RoHS 2011/65/EU, China RoHS
- Physical & Mechanical: Tensile Strength: 1500 psi, Min; Elongation: 200%, Min; Low Temperature Flex at -55°C, Pass
- Electrical Properties: Dielectric Strength: 500 V/mil, Min; Volume Resistivity: 1x10^4 ohm-cm, Min
- Chemical & Other Properties: Water Absorption: 0.5%, Max; Outgassing: 0.10%, Max; Lead-Free: Yes
Buy the Buy Alpha Wire Heat Shrinkable Tubing Part Number F221332YL103 Online
Purchase Alpha Wire heat shrinkable tubing online today to ensure high-quality electrical insulation, reliable performance, and ease of installation. This polyolefin tubing with a 2:1 shrink ratio offers excellent chemical and temperature resistance, UL certification, and compliance with RoHS standards. Available in multiple vibrant colors, it is ideal for bundling, insulation, and protecting wires and cables. With a shelf life of five years and outstanding mechanical and electrical properties, buying online guarantees swift delivery, cost savings, and product authenticity. Trust Alpha Wire for all your electrical needs.
Buy Alpha Wire F221332YL103 heat shrink tubing now and experience unmatched reliability and durability in electrical insulation applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE F221332YL103?
You can click on the BUY or RFQ button to purchase F221332YL103 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part F221332YL103?
You can download the F221332YL103 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of F221332YL103?
ALPHA WIRE
