ALPHA WIRE 861805SL005 Data Cable
This is a flexible, multiconductor data cable designed for industrial and control applications, featuring 18 AWG tinned copper conductors with PVC insulation and a PVC jacket. It conforms to UL, CSA, and CE standards, with a 300V voltage rating, low capacitance, and high flexibility at temperatures from -55°C to +105°C. The cable includes a nonwoven polyester core wrap, twisted components, and a slate-colored outer jacket, suitable for environments requiring sunlight resistance and mechanical durability, ideal for control cabinets, data centers, and automation systems.
ALPHA WIRE 861805SL005 Data Cable Specifications:
- Conductor: 18 AWG Tinned Copper
- Insulation Wall: 0.010 inches, PVC, Semi Rigid
- Jacket: 0.040 inches, PVC, Slate color
- Voltage Rating: 300 V
- Temperature Range: -55°C to +105°C (static), +5°C to +105°C (dynamic)
- Bend Radius: 8 times the cable diameter
- Pull Tension Maximum: 64 Lbs
- Capacitance: 27 pF/ft @1 kHz
- Inductance: 0.16 µH/ft
- Conductor DCR: 6.9 Ohms/1000 ft @20°C
- Length Options: 1000 ft, 500 ft, 100 ft rolls
- Standing standards: UL AWM 2661, CSA AWM 21094, CE RoHS compliant

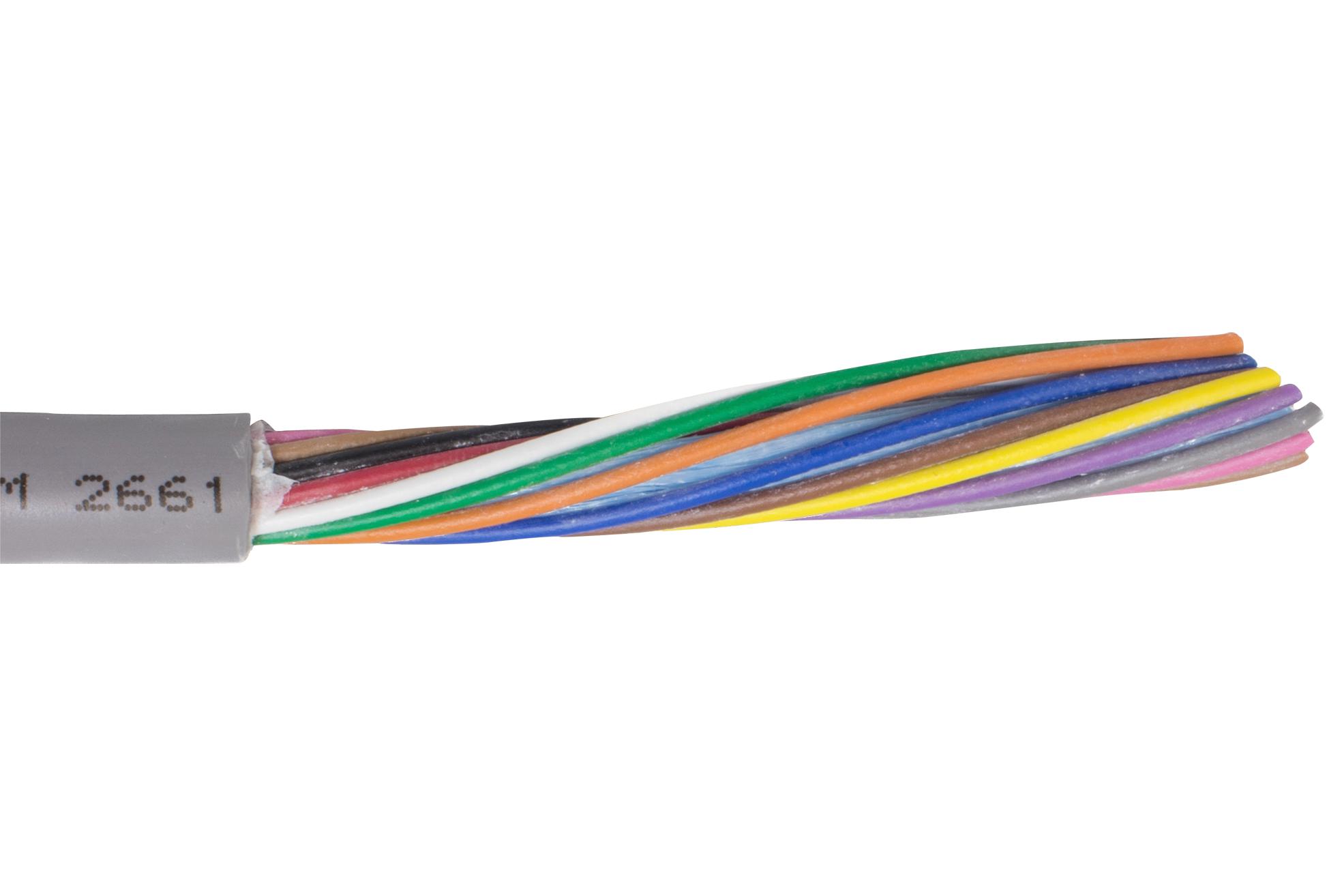

Buy the Buy AlphaWire Data Cable Part Number 861805 Online
Order the AlphaWire Data Cable with part number 861805 online today to ensure a durable and flexible solution for your industrial data and control needs. Designed with 18 AWG tinned copper conductors, PVC insulation, and a jacket, this cable offers excellent temperature resistance from -55°C to +105°C, sunlight resistance, and compliance with UL, CSA, and CE standards. Its high flexibility, low capacitance, and robust construction make it ideal for factory automation, data centers, and control systems. Purchase now for fast, reliable delivery and quality assurance.
Get AlphaWire 861805 today—built for durability, flexibility, and reliable performance in industrial control applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 861805SL005?
You can click on the BUY or RFQ button to purchase 861805SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 861805SL005?
You can download the 861805SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 861805SL005?
ALPHA WIRE
