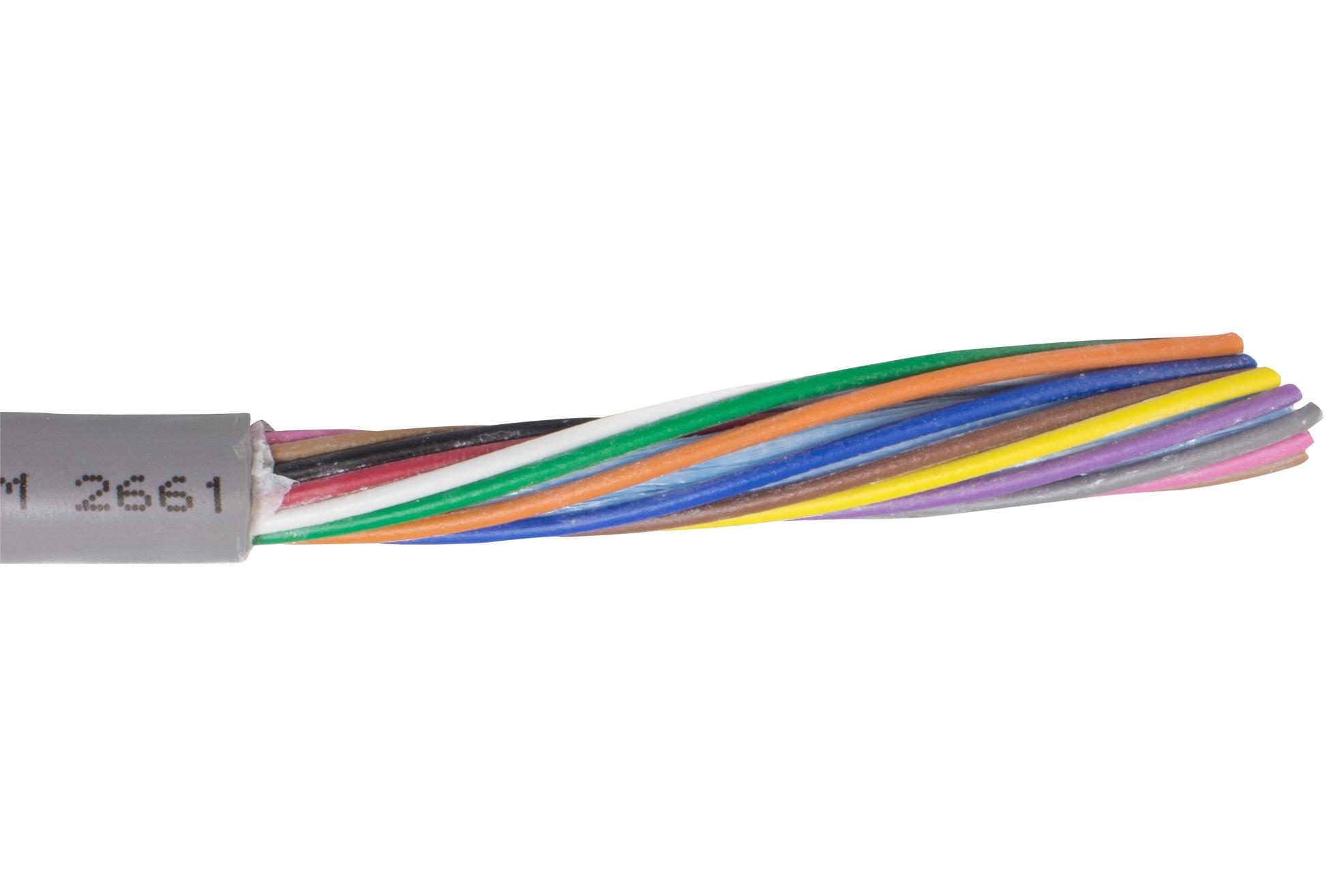

ALPHA WIRE 862005SL005 Data Cable
The 862005SL005 is a flexible, multi-conductor data cable designed for industrial and control applications, featuring UL and CSA certifications. It boasts a 300V voltage rating, a conductor resistance of 9.5 Ω/1000ft at 20°C, and a capacitance of 26 pF/ft at 1 kHz. The cable's construction includes tinned copper conductors with PVC insulation, a nylon core wrap, and a PVC jacket in slate color. Its temperature range is from -10°C to 105°C (static) and +5°C to 105°C (dynamic). Sunlight resistant and suitable for internal wiring, it meets RoHS and REACH compliance, making it ideal for durable and environmentally conscious electrical installations.
ALPHA WIRE 862005SL005 Data Cable Specifications:
- Voltage Rating: 300 V
- Conductor Material: Tinned Copper
- Conductor Resistance: 9.5 Ω/1000ft @20°C
- Capacitance: 26 pF/ft @1 kHz
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Insulation: PVC, 0.010 inch wall
- Jacket: PVC, 0.040 inch wall, Slate color
- Flexibility: Bending radius 8X cable diameter static/dynamic
- Sunlight Resistance: Yes
- Environmental Compliance: RoHS 2 & 3, REACH
- Dimensions: 1000 ft spool 12 x 12 x 3.5 in, 500 ft spool 12 x 6 x 3.5 in, 100 ft spool 12 x 4.5 x 3.5 in
Buy the Buy AlphaWire Data Cable Part Number 862005SL005 Online
Purchase the AlphaWire 862005SL005 flexible data cable online today to benefit from durable, high-quality construction with tinned copper conductors and PVC insulation. This 300V rated cable is ideal for industrial, control, and automation wiring, offering excellent flexibility, sunlight resistance, and compliance with RoHS and REACH standards. Available in a slate color jacket, it provides reliable electrical performance with low capacitance and resistance. Streamline your projects by ordering this versatile cable online, ensuring timely delivery and consistent quality for all your electrical needs.
Order your AlphaWire 862005SL005 flexible data cable today and ensure reliable, environmentally compliant wiring for industrial control projects.
