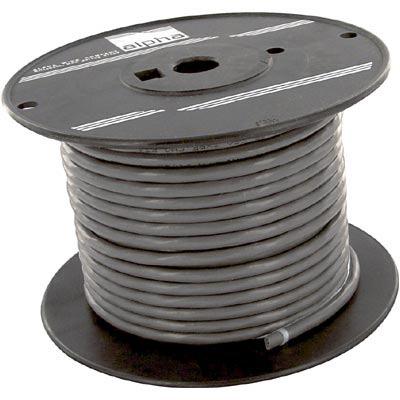

ALPHA WIRE 882207SL005 Telecom Cable
This high-quality 22 AWG telephone cable features a 0.010-inch PVC insulation wall, UL and CSA certifications, and a maximum operating temperature of 105°C. With a flexible bend radius of 10 times the cable diameter and a pull tension of 38 lbs, it ensures reliable electrical connectivity for various telecommunications and control systems. The cable is rated for 300 V and exhibits low capacitance and inductance, with a conductor resistance of 16.4 ohms per 1000 feet at 20°C, making it suitable for durable outdoor and indoor wiring applications.
ALPHA WIRE 882207SL005 Telecom Cable Specifications:
- Conductor: 22 AWG TC
- Insulation Wall Thickness: 0.010 inch, PVC, semi-rigid
- Jacket: 0.032 inch wall, PVC, slate color
- Voltage Rating: 300 V
- Temperature Range: -20°C to 105°C
- Bend Radius: 10x cable diameter
- Pull Tension: 38 lbs maximum
- Capacitance: 23.5 pF/ft @ 1 kHz
- Inductance: 0.18 μH/ft
- Conductor DCR: 16.4 Ω/1000 ft @ 20°C
- Cable Lengths Available: 100 ft, 500 ft, 1000 ft spool
- Certifications: UL, CSA, CE, RoHS compliant
- Applications: Telecom, control wiring, indoor and outdoor electrical systems
Buy the Alpha Wire Series 7C 22 AWG: 882207SL005
Purchase the Alpha Wire Series 7C 882207SL005 online today and enjoy high-quality, UL and CSA certified 22 AWG cable, perfect for telecom and control wiring. This durable cable features PVC insulation and a flexible bend radius, rated for 300 volts and operating temperatures from -20°C to 105°C. Its low capacitance and inductance ensure optimal electrical performance. Available in various lengths, it provides reliable connections for indoor and outdoor electrical installations, delivering trusted quality for your critical wiring needs.
Order your Alpha Wire Series 7C 882207SL005 today and give your projects the dependable quality they deserve, ensuring reliable electrical connections and safety.
Frequently Asked Questions
Where can I buy ALPHA WIRE 882207SL005?
You can click on the BUY or RFQ button to purchase 882207SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 882207SL005?
You can download the 882207SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 882207SL005?
ALPHA WIRE
