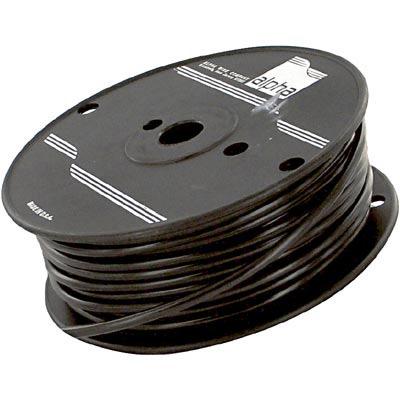

ALPHA WIRE 9058XBK005 Coaxial Cable
The 9058X BK005 is a 100-foot black coaxial cable with a 20 AWG solid center conductor and polyethylene dielectric. It features a 95% shield braid made of copper for effective protection against high-frequency electromagnetic interference. The cable has a type I PVC jacket for durability and flexibility, making it suitable for defense, military, aerospace, communications, and networking applications. It withstands a maximum pull tension of 12.7 pounds, offers a velocity of propagation of 66%, and complies with REACH regulation, ensuring high performance in demanding environments.
ALPHA WIRE 9058XBK005 Coaxial Cable Specifications:
- Conductor: 20 AWG solid
- Insulation: Polyethylene dielectric
- Shield: 95% Copper braid
- Jacket: Type I PVC
- Cable Length: 100 feet
- Outer Diameter: 0.195 inches +/- 0.005
- Color: Black
- Maximum Pull Tension: 12.7 lbs
- Velocity of Propagation: 66%
- Voltage Rating: 1,400 Volts
- Impedance: 50 ohms
- Attenuation: Max 1.9 dB/100ft @ 400 MHz
- Maximum Exposure Temperature: -20°C to 60°C
- Certification: RoHS, REACH compliant
Buy the AlphaWire 9058X – Reliable Coaxial Cable for Industrial Applications
Purchase the AlphaWire 9058X coaxial cable online today—designed for superior performance in military, aerospace, communications, and networking. This 100-foot black coaxial cable features a 20 AWG solid conductor, polyethylene dielectric, copper braided shield with 95% coverage, and a durable PVC jacket that ensures flexibility and reliability in demanding environments. It withstands a maximum pull tension of 12.7 pounds, with a velocity of propagation of 66%, making it ideal for high-frequency data transmission. Order now for immediate availability and fast shipping.
Get AlphaWire 9058X today—built for high-frequency transmission and long-lasting durability.
Frequently Asked Questions
Where can I buy ALPHA WIRE 9058XBK005?
You can click on the BUY or RFQ button to purchase 9058XBK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 9058XBK005?
You can download the 9058XBK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 9058XBK005?
ALPHA WIRE
