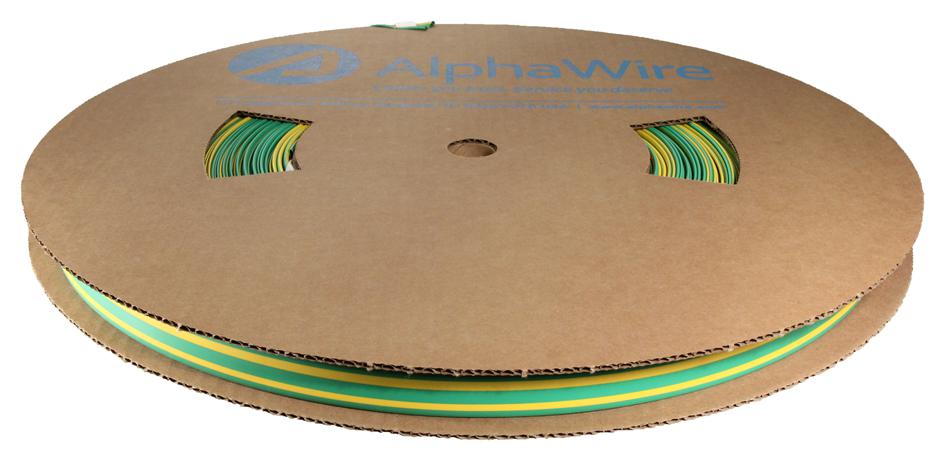

ALPHA WIRE F26012GY003 Heat Shrink Tubing
The F2601/2 GY003 is a green/yellow heat shrink tubing made from cross-linked polyolefin. It features a 2:1 shrink ratio, with a minimum tensile strength of 1500 psi. The tubing provides a dielectric strength of at least 500V/mil, a minimum shrink temperature of 90°C, and a full recovery temperature of 121°C. Its operational temperature range is from -55°C to 135°C. This product is suitable for safety and industrial applications. Please note that high market demand may lead to extended lead times and fluctuating delivery dates. It is exempt from discounts.
ALPHA WIRE F26012GY003 Heat Shrink Tubing Specifications:
- Material: Cross-linked Polyolefin
- Color: Green/Yellow
- Shrink Ratio: 2:1
- Minimum Recovered ID: 0.250 inch
- Minimum Supplied ID: 0.500 inch
- Wall Thickness: 0.025 inch
- Full Recovery Temperature: 121°C
- Minimum Shrink Temperature: 90°C
- Temperature Range: -55°C to 135°C
- Dielectric Strength: ≥ 500V/mil
- Tensile Strength: ≥ 1500 psi
- Water Absorption: 0.50% max
- Shelf Life: 25 Years at 18 to 35°C
- Compliance: ROHS, China RoHS
- Other: Halogen-Free, Lead-Free
Buy the Buy AlphaWire Heat Shrink Tubing Part Number F26012GY003 Online
Purchase the AlphaWire F26012GY003 heat shrink tubing online now for high-quality, durable insulation solutions. Made from cross-linked polyolefin, it offers a 2:1 shrink ratio, excellent tensile and dielectric properties, and withstands temperatures from -55°C to 135°C. Perfect for industrial, safety, and electrical applications, this tubing ensures long service life and compliance with RoHS standards. Order today and enjoy fast delivery, reliable performance, and the confidence that comes with premium quality insulation products.
Order your AlphaWire F26012GY003 heat shrink tubing today and ensure reliable insulation and protection for your electrical connections.
