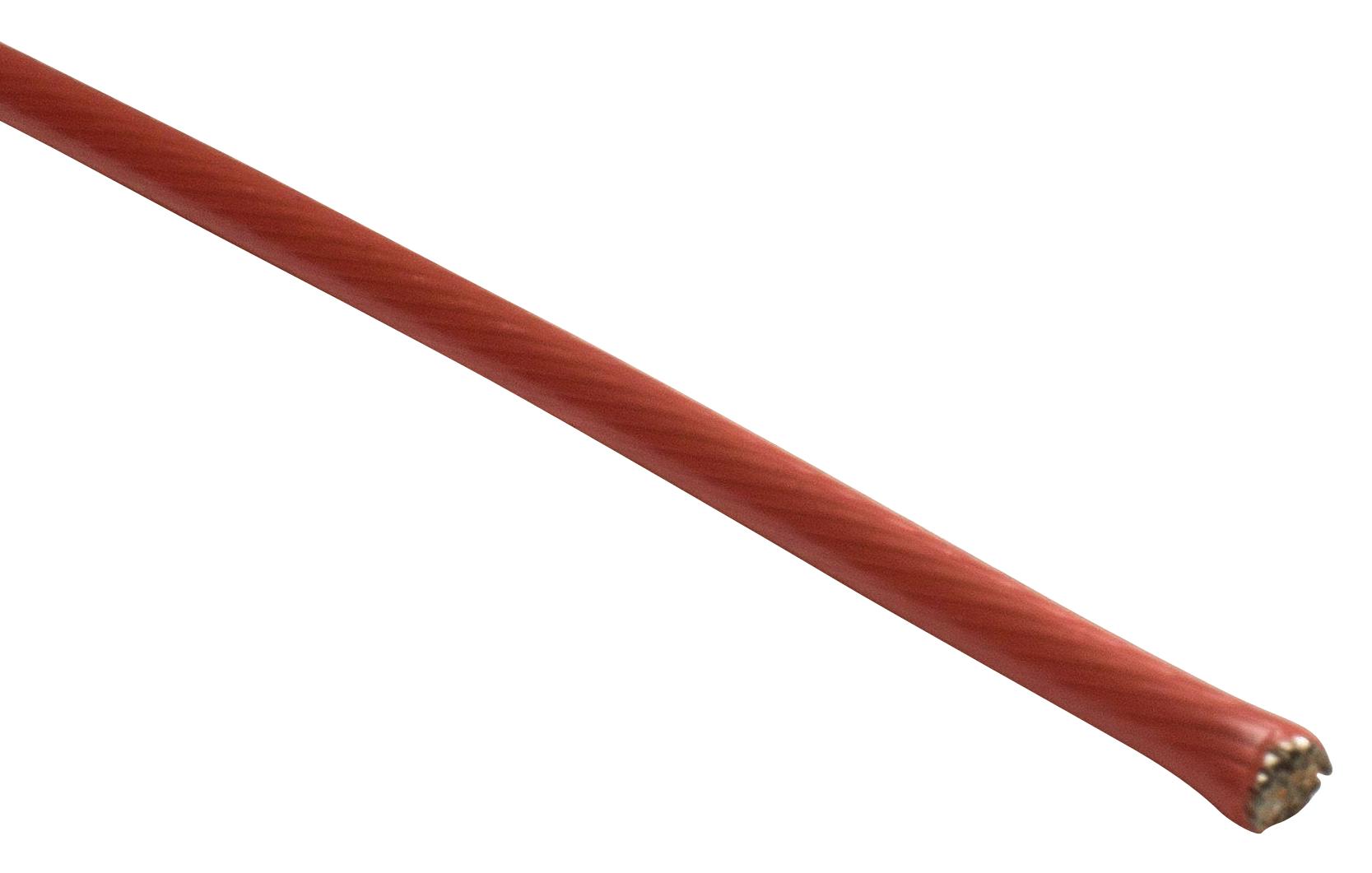

ALPHA WIRE 2620RD005 High-Temperature Flexible Cable
The product is a high-temperature, flexible cable designed for electronic and electrical applications requiring durability and resistance to environmental factors. Constructed with 20 AWG copper conductors plated with 10% nickel and insulated with 0.052 inches of PFA, it meets UL style 11905 standards for 300°C and 600 V ratings. Its physical attributes include a bend radius of 10 times the cable diameter and maximum pull tension of 9.6 lbs. Certified for resistance to sunlight, chemicals, and water, it is suitable for demanding industrial electronic environments.
ALPHA WIRE 2620RD005 High-Temperature Flexible Cable Specifications:
- Conductor: 20 AWG, copper, 10% nickel plated
- Insulation: PFA, 0.052 inches wall thickness
- Operating Temperature: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10X Cable Diameter
- Pull Tension: 9.6 lbs maximum
- Inductance: 0.03 H/ft, nominal
- Conductor DCR: 9.9 Q/1000ft @20°C
- Flammability: UL 94V-0
- Applicable Standards: UL AWM style 11905, RoHS compliant
- Environmental Resistance: Sunlight, chemical, water resistant
- Cable Dimensions: 6.5 x 2 x 1.9 inches (spool), 2.75 x 1 x 1.125 inches (continuous length)
Buy the Alpha Wire Series 711 High-Temp Electronic Cable: 2620RD005
Order the Alpha Wire 2620RD005 online today for durable, high-temperature performance suitable for industrial electronics. This flexible cable features nickel-plated copper conductors, PFA insulation rated for 300°C, and a maximum voltage of 600V. Its resistance to sunlight, chemicals, and water makes it ideal for demanding environments. With a bend radius of 10 times the cable diameter and a pull tension of 9.6 lbs, it ensures ease of installation and long-term reliability in various industrial electronic and control systems.
Buy Alpha Wire 2620RD005 now and experience unmatched reliability and performance in demanding industrial electronic applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2620RD005?
You can click on the BUY or RFQ button to purchase 2620RD005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2620RD005?
You can download the 2620RD005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2620RD005?
ALPHA WIRE
