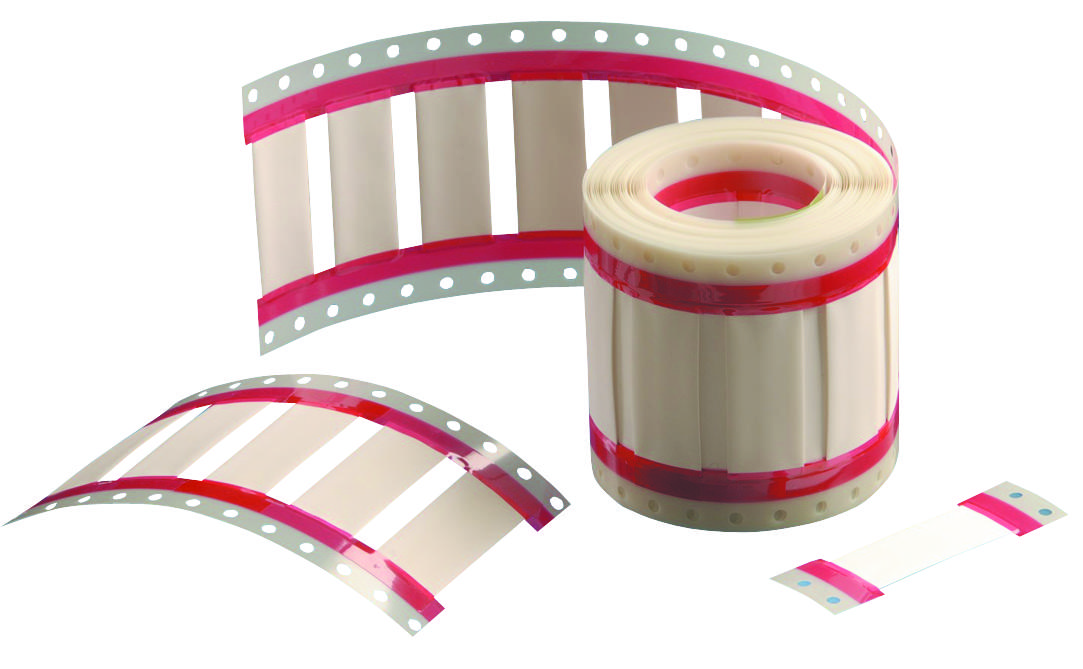

ALPHA WIRE FPRINT12WH082 Heat Shrink Tubing
The FPRINT12WH082 is a heat shrinkable tubing made from cross-linked material. It features a shrink ratio suitable for electrical insulation and protection, with a minimum recovered internal diameter of 0.166 inches and a wall thickness of 0.023 inches. This waterproof, flame-retardant, and RoHS-compliant tube operates within -30°C to 105°C. Designed for electrical insulation, environmental protection, and durability, it meets UL 224, CSA 198 standards, and MIL-STD-202F, ensuring high performance and safety in industrial applications.
ALPHA WIRE FPRINT12WH082 Heat Shrink Tubing Specifications:
- Minimum Recovered ID: 0.166 inches
- Maximum Recovered ID: 0.500 inches
- Wall Thickness: 0.023 inches
- Material: Cross Linked Heat Shrinkable Tul
- Color: Yellow, White
- Flammability Standard: UL 224
- CSA Standard: 198
- Temperature Range: -30°C to 105°C
- Shrink Ratio: 3:1
- Tensile Strength: 150%, according to TM D638
- Dielectric Strength: 20 V/mil minimum, TM D876
- Shelf Life: 3 Years at 18 to 35°C
- Chemical Resistance: No corrosion after 16 hrs at 0°C, pass resistance test
- Lead Free: Yes
- Environmental Compliance: RoHS, REACH, California Proposition 65
- Certifications: UL, CSA, MIL-STD-202F
Buy the Alpha Wire FPRINT12WH082 – Reliable Heat Shrinkable Tubing for Industrial Applications
Secure your electrical projects with Alpha Wire FPRINT12WH082. This high-performance heat shrinkable tubing offers excellent insulation, environmental safety, and flame retardant properties. Its cross-linked material ensures durability in harsh conditions from -30°C to 105°C, making it suitable for industrial, automotive, and electronic applications. With certifications like UL, CSA, and RoHS compliance, it guarantees safety and reliability. Purchase online today to enjoy fast delivery and the peace of mind that comes with trusted quality and superior performance in every application.
Buy Alpha Wire FPRINT12WH082 now and experience unmatched durability and environmental compliance for electrical insulation needs.
Frequently Asked Questions
Where can I buy ALPHA WIRE FPRINT12WH082?
You can click on the BUY or RFQ button to purchase FPRINT12WH082 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part FPRINT12WH082?
You can download the FPRINT12WH082 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of FPRINT12WH082?
ALPHA WIRE
