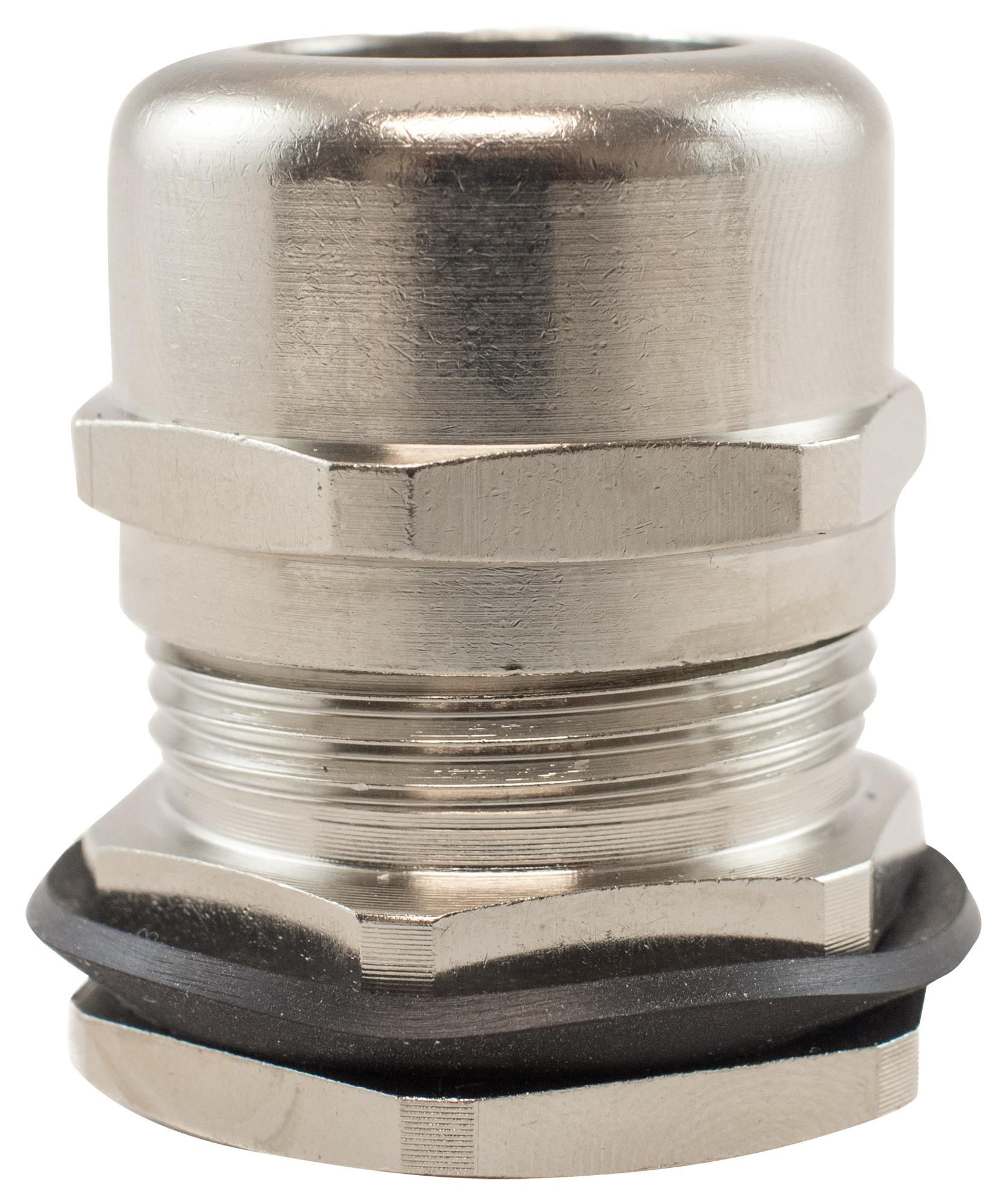

ALPHA WIRE MES16NC080 Cable Gland
The MES16 NC080 Alpha Fit® Standard Dome Design Metric Cable Gland provides reliable cable strain relief and exceptional environmental protection in industrial settings. Made of high-strength nickel-plated brass, it features rubber seals that resist water and dust, achieving protection classes IP68 at 5 bar for 30 minutes and IP66. Equipped with a locknut and gasket, it ensures a secure fit. Rated UL94V-2 for flammability, the gland withstands temperatures from -20°C to +100°C permanently and -40°C to +150°C intermittently. Certified UL (514) and CSA, it is ideal for automation and renewable energy projects.
ALPHA WIRE MES16NC080 Cable Gland Specifications:
- Material: Nickel-plated brass (body and cap)
- Protection Class: IP68 at 5 bar for 30 min, IP66
- Flammability Rating: UL94V-2
- Temperature Range: -20°C to +100°C (permanent), -40°C to +150°C (intermittent)
- Thread Sizes: M-12x1.5, M-16x1.5, M-20x1.5, M-25x1.5, M-32x1.5, M-40x1.5
- Clamp Range: 3.0-6.5 mm to 19.0-28.0 mm depending on size
- Maximum Outer Diameter: Up to 43 mm
- Certification: UL514 Listed, CSA Certified
- Includes: Locknut and gasket for secure installation
Buy the Buy Alpha Wire Cable Gland Part Number MES16NC080 Online
Purchase the Alpha Wire MES16NC080 cable gland online today for a reliable and secure connection solution. Made with durable nickel-plated brass, this gland provides excellent water and dust resistance, meeting IP68 and IP66 standards. Certified UL and CSA, it handles temperature ranges from -20°C to +150°C, ensuring durability in demanding environments. Its precise thread sizes and included gasket and locknut make installation easy and secure. Perfect for automation, electrical, and renewable energy applications, buy online now for fast, trusted delivery.
Order your Alpha Wire Series MES16NC080 high-strength cable gland today and ensure reliable environmental protection for your industrial wiring projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE MES16NC080?
You can click on the BUY or RFQ button to purchase MES16NC080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part MES16NC080?
You can download the MES16NC080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of MES16NC080?
ALPHA WIRE
