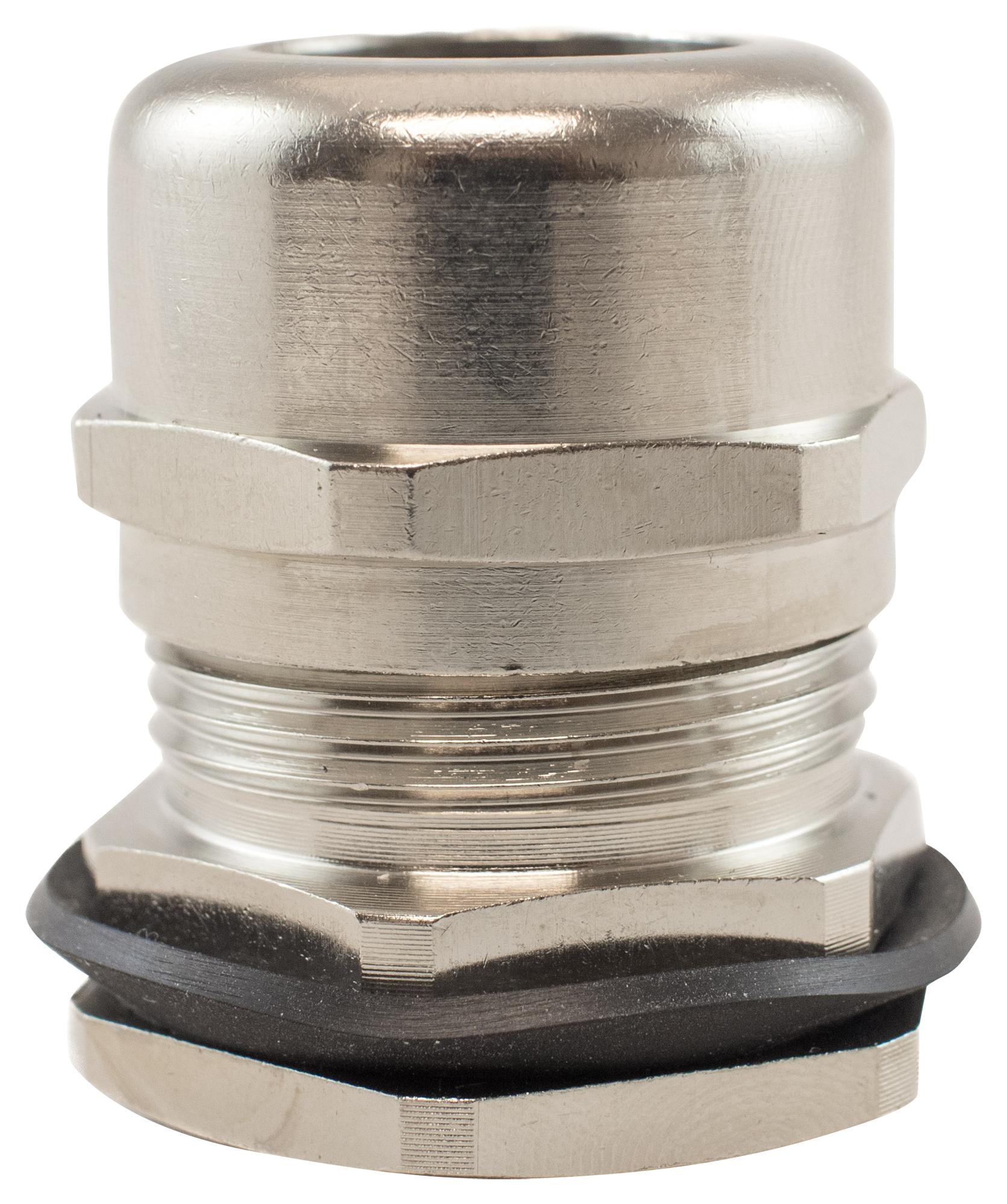

ALPHA WIRE MES32NC080 Cable Gland
The MES32 NC080 Alpha Fit® Standard Dome Design Metric Cable Gland provides reliable cable strain relief and environmental protection. Featuring a high-strength nickel-plated brass body and cap, along with robust rubber seals, it guards against water ingress and pressure. Rated IP68 for 5 bar pressure over 30 minutes and also IP66, it protects against dust, dirt, sand, and water. It includes a locknut and gasket for a complete seal, complies with UL94V-2 flammability standards, and operates from -20°C to +100°C permanently, and -40°C to +150°C intermittently. Suitable for industrial automation, electrical, and renewable energy applications.
ALPHA WIRE MES32NC080 Cable Gland Specifications:
- Material: Brass, Nickel-plated
- Seal Material: CR (Chloroprene Rubber)
- Protection Class: IP68 5 Bar, 30 min; IP66
- Flammability: V2 (UL94)
- Temperature Rating: Permanent -20°C to +100°C, Intermittent -40°C to +150°C
- Clamping Range: 3.0-6.5 mm
- Thread Size: M-12x1.5
- Thread Length: 60 mm
- Outer Diameter: 14 mm
- Max Height: 15.5 mm
- Certifications: UL Listed, CSA Certified
Buy the Alpha Wire MES32NC080 – Reliable Cable Gland for Industrial Applications
Order the Alpha Wire MES32NC080 cable gland online today and ensure your electrical installations are protected against water, dust, and environmental factors. Its durable nickel-plated brass body and rubber seals provide high-quality sealing for industrial automation, electrical, and renewable energy systems. With IP68 and IP66 ratings, it withstands harsh conditions, making it ideal for outdoor and demanding indoor applications. Easy to install with a secure locknut, this gland guarantees long-lasting performance and safety, helping you maintain reliable electrical connections efficiently and effectively.
Buy Alpha Wire MES32NC080 now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE MES32NC080?
You can click on the BUY or RFQ button to purchase MES32NC080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part MES32NC080?
You can download the MES32NC080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of MES32NC080?
ALPHA WIRE
