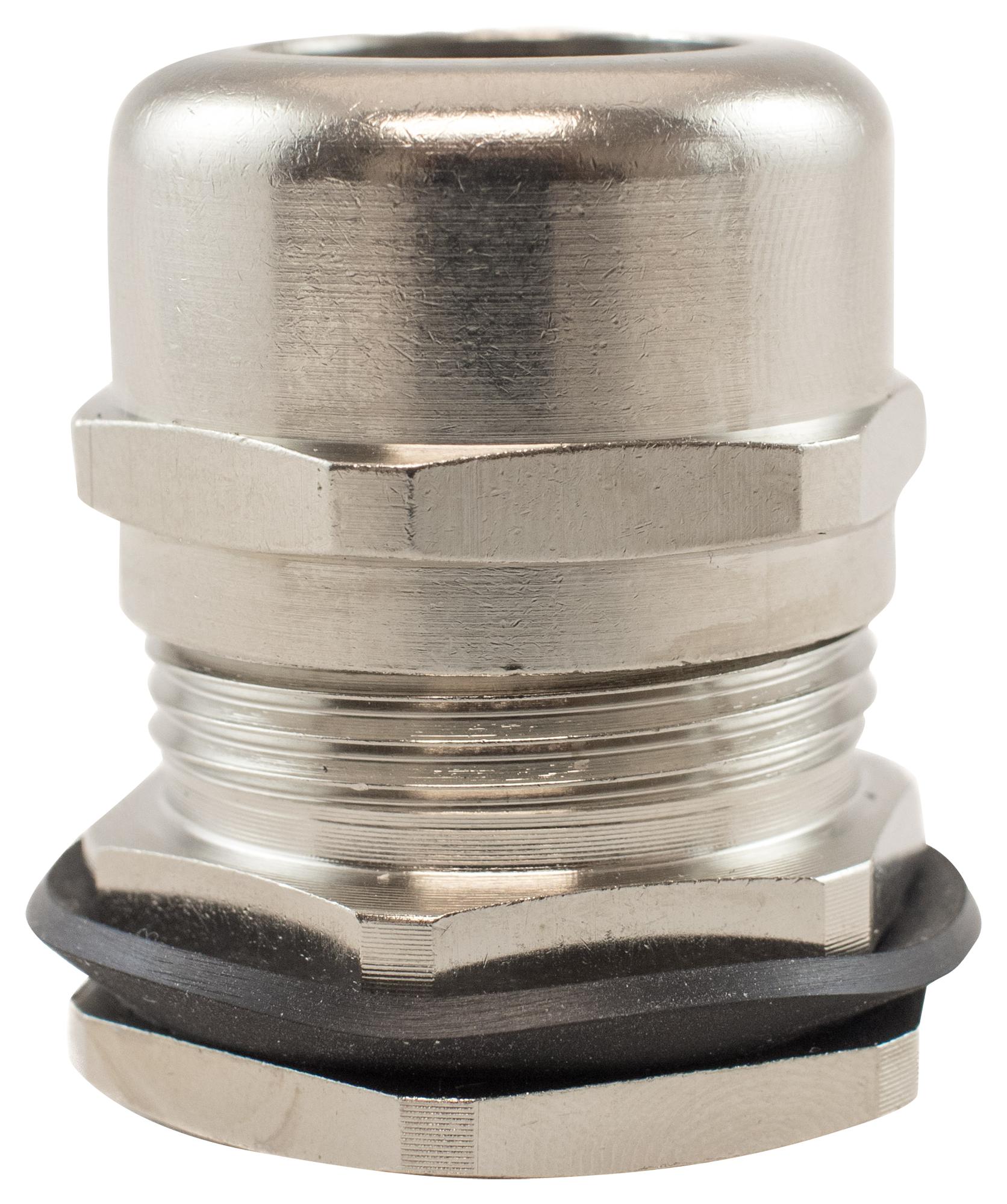

Alpha Wire MNPT38NC080 Cable Gland
The Alpha Fit® Standard Dome Design NPT Cable Gland with a 3/8 inch male national pipe thread is a durable component designed for cable strain relief and environmental protection. Made of nickel-plated brass, it features rubber seals for watertightness, dust, dirt, and sand resistance, and complies with IP68 standards (5 bar for 30 minutes). It includes a locknut and gasket for easy installation. UL listed, CSA certified, rated from -20°C to +100°C permanently, and up to +150°C intermittently, with UL94V-2 flammability. Suitable for industrial automation, electrical, and renewable energy systems.
Alpha Wire MNPT38NC080 Cable Gland Specifications:
- Material: Nickel-plated brass body and cap
- Protection Class: IP 68 at 5 Bar for 30 min
- Flammability: UL94V-2
- Temperature Rating: Permanent -20°C to +100°C, Intermittent -40°C to +150°C
- Thread Size: 3/8 inch NPT
- Thread Length: 11.5 mm
- Outer Diameter: 17.14 mm
- Spanner Width: 17 mm
- Outer Height: 19 mm
- Max Diameter: 23 mm
- Height with Cap: 21.0 mm
- Includes locknut and gasket
- Approval: UL listed, CSA Certified
- Package Quantity: 10 glands per package
Buy the Buy Alpha Wire Cable Gland Part Number MNPT38NC080 Online
Order the Alpha Wire cable gland designed with high-strength nickel-plated brass, ensuring exceptional durability and environmental protection. Featuring an IP68 rating for water and dust resistance, UL listing, and CSA certification, this cable gland is suitable for industrial automation, electrical installations, and renewable energy setups. Its threaded design provides secure strain relief, while the rubber seals guarantee watertightness at 5 bar pressure for 30 minutes. Easy to install with included locknut and gasket, it withstands temperature ranges from -20°C to +100°C permanently and intermittently up to +150°C, ensuring reliable and long-lasting performance in demanding environments.
Get Alpha Wire MNPT38NC080 today—built for precision, durability, and reliable environmental sealing in industrial and automation projects.
Frequently Asked Questions
Where can I buy Alpha Wire MNPT38NC080?
You can click on the BUY or RFQ button to purchase MNPT38NC080 from an authorized Alpha Wire distributor.
How do I troubleshoot issues or seek technical support for part MNPT38NC080?
You can download the MNPT38NC080 datasheet or visit the Alpha Wire website for support.
Who is the manufacturer of MNPT38NC080?
Alpha Wire
