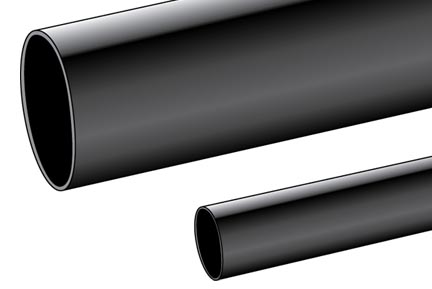

ALPHA WIRE P105716BK005 Multi-Purpose PVC Tubing
ALPHA WIRE's PVC-105 tubing is a versatile multi-purpose solution for wire management. Constructed from durable PVC, it offers excellent resistance to heat, oil, and abrasion, ensuring long-lasting protection for critical wiring. This tubing is widely utilized in wire harnesses, ground strap protection, and other industrial applications where flexibility and resilience are paramount. Available in a range of sizes and standard put-up spools, PVC-105 tubing simplifies wire routing and organization while maintaining electrical integrity. It meets UL Standard 224, CSA Standard 198, MIL-I-631D and is RoHS compliant.
ALPHA WIRE P105716BK005 Multi-Purpose PVC Tubing Specifications:
- Operating Temperature: –20°C to 105°C
- Color Description: Black, Clear (Size 24 to 1-1/2 Inches), Black (Size 2 Inches to 2-1/2 Inches)
- Tensile Strength: 1800 psi (127 kg/cm²)
- Ultimate Elongation: 300%
- Specific Gravity: Clear 1.25, Black 1.35
- Flammability: Self-Extinguishing (UL VW-1)
- Corrosive Effect: Non-Corrosive
- Fungus Resistance: No Growth
- Water Absorption: 0.5%
- Dielectric Strength: 800V/mil (315 kV/cm)
- Volume Resistivity: 10¹¹ ohm-cm
- UL Standard: 224
- CSA Standard: 198
- MIL Standard: MIL-I-631D
- RoHS Compliant: Yes
- Standard Put-Up: 1000 Spools (Ft.)
Buy the P1057/16 BK005 ALPHA WIRE Multi-Purpose PVC Tubing | myMectronic
Secure your ALPHA WIRE P1057/16 BK005 PVC Tubing with our trusted online platform.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE P105716BK005?
You can click on the BUY or RFQ button to purchase P105716BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part P105716BK005?
You can download the P105716BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of P105716BK005?
ALPHA WIRE
