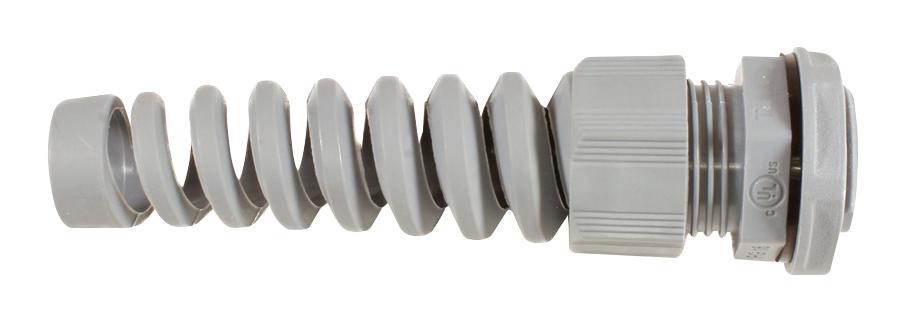

ALPHA WIRE PMS20SL080 Cable Gland
The PMS20 SL080 Fit® Flexible Spiral Design Metric Cable Gland offers reliable cable strain relief and environmental protection. Made from high-strength polyamide 6 in a slate (RAL 7001) color, it is dust, dirt, and sand resistant, with a watertight seal according to IP68 standards. The package includes a locknut and gasket to ensure complete strain relief. Features include robust rubber seals that protect against water ingress and pressure, with a protection rating of IP68 (5 bar for 30 minutes) and IP66. It is flammability rated UL94V-2, with a temperature range from -20°C to +100°C (permanent) and -30°C to +150°C (intermittent). It is UL listed (514) and CSA certified (C22). Ideal for use in industrial automation, electrical systems, and renewable energy sectors.
ALPHA WIRE PMS20SL080 Cable Gland Specifications:
- Material: PA 6 (Polyamide 6)
- Color: Gray, RAL 7001
- Protection Class: IP68, IP66
- Flammability: UL94V-2
- Temperature Rating: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Type: Metric according to EN 60423
- Thread Size Options: M-12x1.5, M-16x1.5, M-20x1.5, M-25x1.5
- Clamping Range: 3.0-65mm, 5.0-10.0mm, 10.0-14.0mm, 13.0-18.0mm
- Package: 10 glands per standard package
- Certifications: UL 514, CSA C22.2
- Includes: Locknut and gasket for strain relief
- Seals: Rubber, resistant to water ingress and pressure
- Application: Suitable for industrial automation, electrical systems, renewable energy
- Approval and compliance: UL listed, CSA certified
Buy the Alpha 51420U– Reliable Cable Gland for Industrial Applications
Purchase the Alpha PMS20SL080 cable gland online today to secure reliable cable management. Engineered with durable polyamide 6, it delivers IP68 environmental protection and UL/CSA certification. Designed for industrial automation and electrical systems, this flexible spiral cable gland offers a watertight seal, pressure resistance, and easy installation. With a versatile range of thread sizes and included strain relief components, it ensures robust performance in demanding conditions. Buy now and enhance your project’s safety, durability, and compliance effortlessly.
Order your Alpha Series PMS20SL080 cable gland today and ensure secure, environment-resistant cabling for your industrial systems and automation projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE PMS20SL080?
You can click on the BUY or RFQ button to purchase PMS20SL080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PMS20SL080?
You can download the PMS20SL080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PMS20SL080?
ALPHA WIRE
