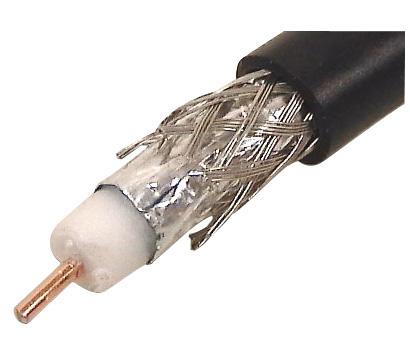

ALPHA WIRE 9104BK001 Shielded coaxial cable
This shielded coaxial cable features a 18 AWG copper conductor with a 0.065-inch foam FEP Teflon insulation. The cable has a natural conductor color, an aluminum/Mylar tape shield with 25% overlap, and a braided shield with 95% coverage. It is jacketed with 0.014-inch PVDF black outer insulation, making it ideal for high-frequency, low-loss signal transmission. Certified for UL CMP, CSA Type CMP, and military MIL-C-17, this cable operates within a -40 to 125°C temperature range, ensuring reliable performance in demanding environments.
ALPHA WIRE 9104BK001 Shielded coaxial cable Specifications:
- Conductor: 18 AWG copper
- Insulation: 0.065 inch foam FEP Teflon
- Shield: Alum/Mylar tape with 25% overlap, foil facing out
- Braid: 95% coverage, TC
- Jacket: 0.014 inch PVDF, black
- Temperature Range: -40°C to 125°C
- Voltage Rating: 300 V
- Impedance: characteristic impedance 75Ω +/-3
- Velocity of Propagation: 82%
- DCR Conductor: 16.3 Ω/1000ft @20°C
- Shield DCR: 1.76 Ω/1000ft @20°C
- Attenuation: approximately 0.3 dB/100ft at 1 MHz
- Maximum length per spool: 1000 ft
- Outer Diameter: approximately 0.232 inches (max 0.238 inches)
Buy the AlphaWire Series RG6/U Shielded Coaxial Cable: 9104BK001
Purchase the AlphaWire Series RG6/U shielded coaxial cable online now to secure a high-quality, UL and CSA certified cable designed for optimal signal integrity. Featuring 18 AWG copper conductors, foam FEP Teflon insulation, aluminum/Mylar shielding with foil facing out and 95% braided coverage, this cable delivers excellent performance in demanding environments. The black PVDF jacket provides UV and chemical resistance, while the lightweight construction ensures ease of installation. Perfect for broadcast, communication, and high-frequency applications, order today for reliable connectivity.
Order your AlphaWire Series RG6/U coaxial cable today and ensure reliable high-frequency signal transmission with this durable, shielded design.
Frequently Asked Questions
Where can I buy ALPHA WIRE 9104BK001?
You can click on the BUY or RFQ button to purchase 9104BK001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 9104BK001?
You can download the 9104BK001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 9104BK001?
ALPHA WIRE
