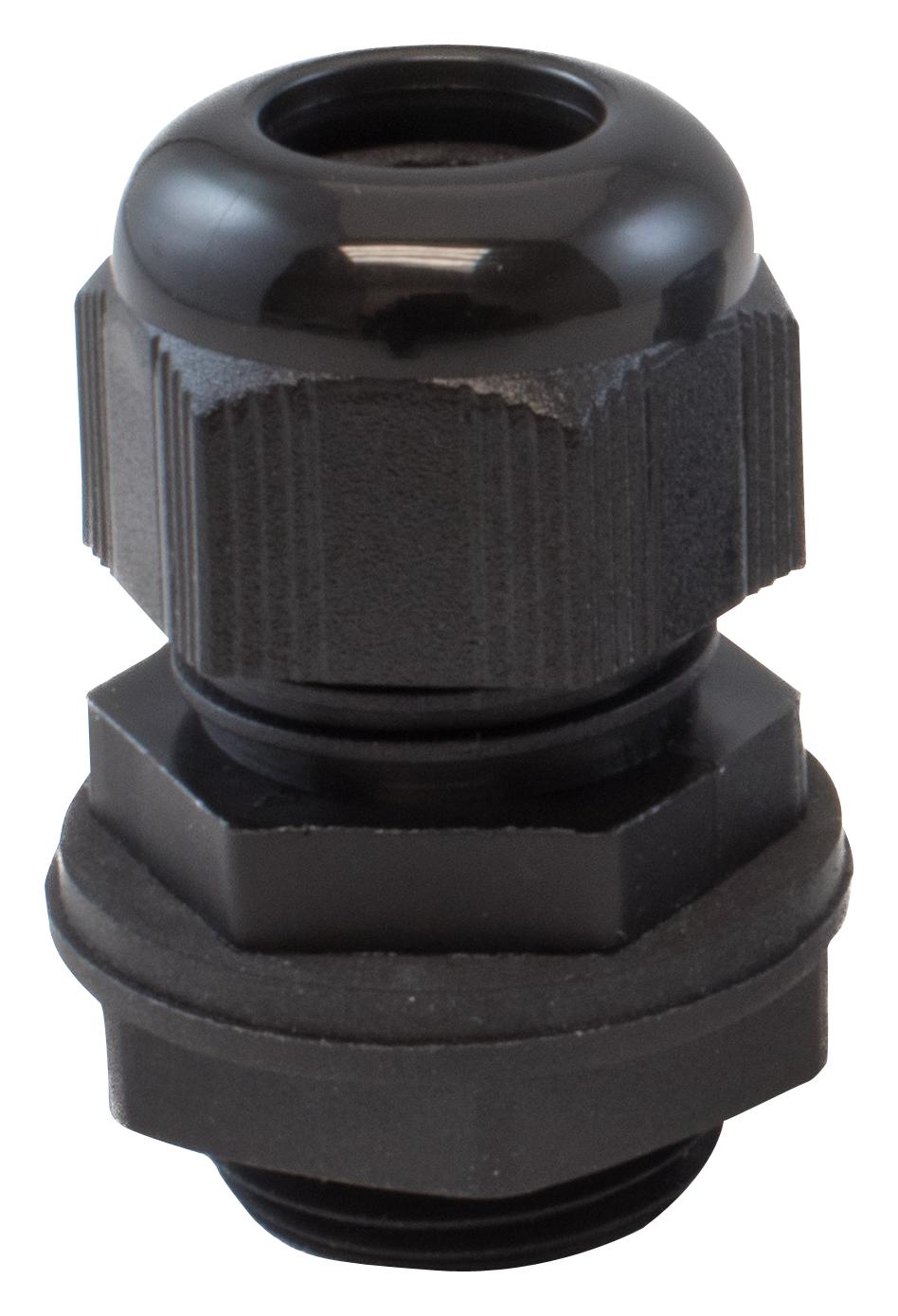

ALPHA WIRE PNC12WBK080 NPT Cable Gland
The PNC12WBK080 Alpha Fit® Standard Dome Design NPT Cable Gland provides durable cable strain relief and environmental sealing. Made from high-strength polyamide 6 in black, it incorporates rubber seals to prevent water ingress and resist dust, dirt, and sand, achieving an IP68 rating at 5 bar for 30 minutes. Easy to install with a locknut and gasket, suitable for renewable energy, industrial automation, and electrical industries. Operating between -20°C and +100°C permanently, and -30°C to +150°C intermittently, it is UL listed, CSA certified, and rated UL94V-2 flammability, ensuring safety and reliability.
ALPHA WIRE PNC12WBK080 NPT Cable Gland Specifications:
- Material: Polyamide 6 (Body and Cap)
- Color: Black, RAL 9005
- Protection Class: IP68 5 Bar, 30 min
- Flammability: UL94V-2
- Temperature Range: Permanent -20°C to +100°C, Intermittent -30°C to +150°C
- Thread Type: NPT according to ANSI B1.20.1
- Dimensions: Thread size 1/2 inch, Clamping Range 10.0-14.0 mm, Thread Length 15 mm, Outer Diameter 27 mm, Spanner Width 27 mm
- Approvals: UL UL 514, CSA C22.2
- Includes: Locknut and gasket for easy installation
- Package Quantity: 10 glands per standard package
Buy the Alpha PNC12WBK080 – Reliable NPT Cable Gland for Industrial Applications
Secure your electrical connections with the Alpha NPT Cable Gland, offering IP68 protection, high-quality polyamide construction, and UL and CSA approvals. Easy to install with included locknut and gasket, it is perfect for renewable energy, automation, and industrial use. Operating efficiently within a wide temperature range, it ensures durability and safety. Elevate your wiring solutions today by purchasing this reliable, high-performance cable gland online, and enjoy hassle-free installation and long-lasting environmental protection in demanding industrial environments.
Buy Alpha PNC12WBK080 now and experience unmatched reliability and performance in industrial sealing and cable management.
Frequently Asked Questions
Where can I buy ALPHA WIRE PNC12WBK080?
You can click on the BUY or RFQ button to purchase PNC12WBK080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PNC12WBK080?
You can download the PNC12WBK080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PNC12WBK080?
ALPHA WIRE
