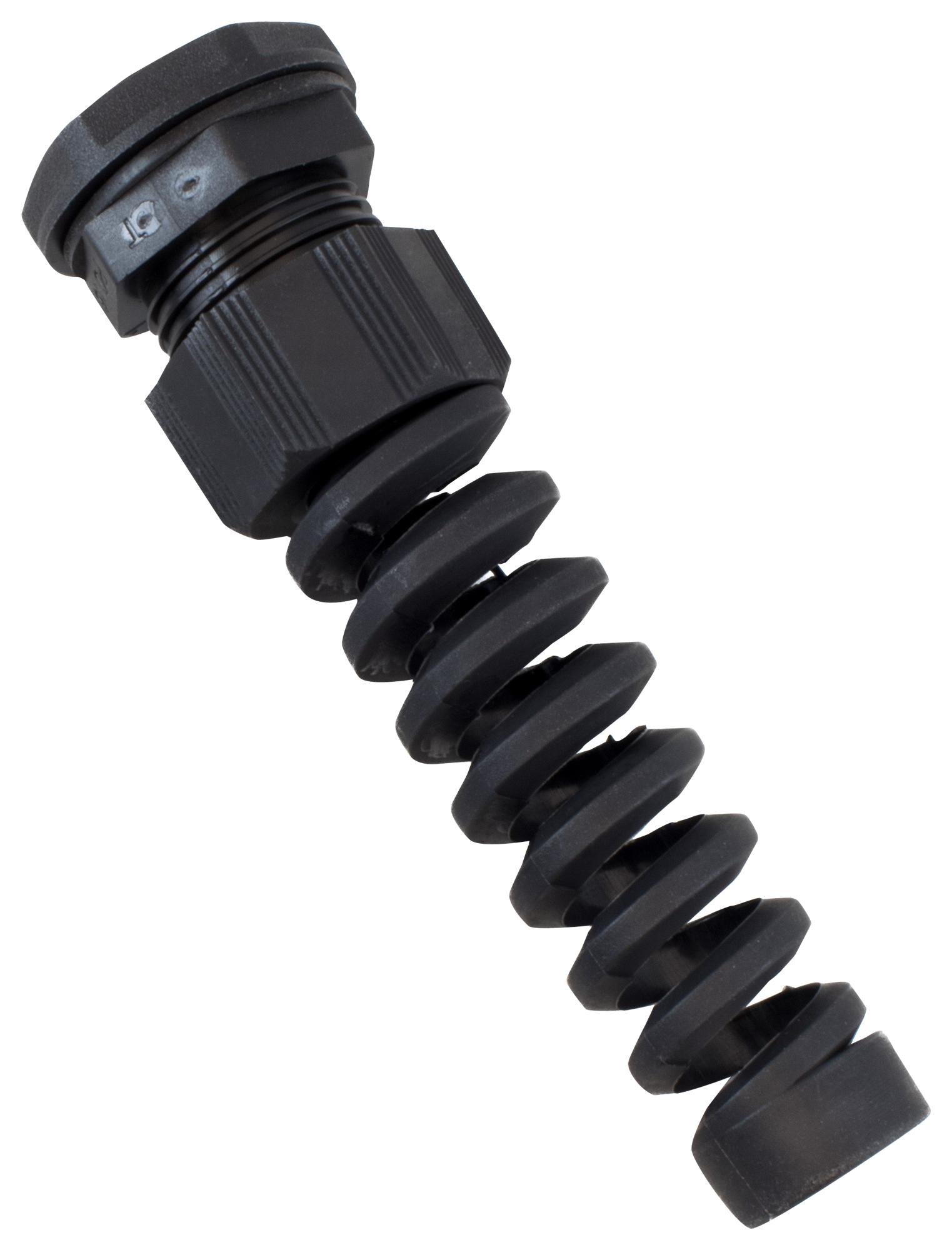

ALPHA WIRE PPS7BK080 Cable Gland
The PPS7 BK080 Alpha Fit® Flexible Spiral Design PG Cable Gland is an ideal solution for providing reliable cable strain relief and environmental protection. Constructed from high-strength polyamide 6 in black, it features robust rubber seals to guard against water ingress and contaminants. It is rated IP68 (5 bar, 30 minutes) and IP66, ensuring dust, dirt, sand, and water resistance. The gland is UL-listed (514), CSA-certified (C22.2), and flammability-rated to UL94V-2. It supports temperature ranges from -20°C to +100°C (permanent) and -30°C to +150°C (intermittent). Packaged with a locknut and gasket, it provides a complete strain relief solution suitable for industrial automation, electrical applications, and renewable energy sectors.
ALPHA WIRE PPS7BK080 Cable Gland Specifications:
- Material: Polyamide 6 (body and cap), CR (Chloroprene Rubber) seal
- Color: Gray, RAL 7001
- Protection Class: IP68 (5 bar, 30 min), IP66
- Flammability: UL94V-2
- Temperature Range: Permanent -20°C to +100°C, Intermittent -30°C to +150°C
- Thread Type: PG according to DIN 40430
- Approvals: UL 514, CSA C22.2
- Size Range: PG7, PG9, PG11, PG13.5, PG16 with specific dimensions
- Packaged: 10 glands per package
Buy the Buy Alpha PG Cable Gland Part Number PPS7BK080 Online
Purchase the Alpha PG Cable Gland PPS7BK080 online to ensure a secure, weatherproof connection for your electrical and automation projects. Made from durable polyamide 6 with rubber seals, it offers excellent water and dust resistance rated IP68/IP66, supporting temperature ranges from -20°C to +150°C. Certified by UL and CSA, these glands are perfect for industrial automation, renewable energy, and electrical applications. Packaged in sets of 10, they provide a cost-effective, high-quality solution for professionals needing reliable cable entry and strain relief.
Get Alpha PG Cable Gland PPS7BK080 today—designed for reliable strain relief and environmental protection in industrial settings.
