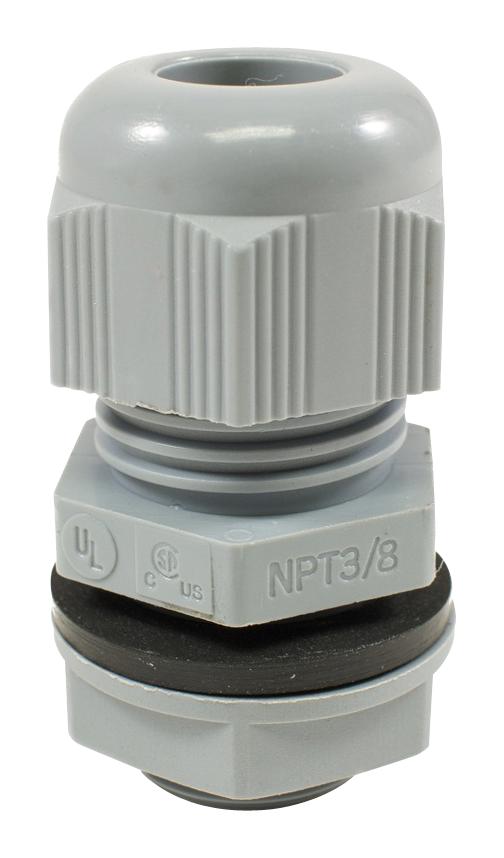

ALPHA WIRE PNC12WSL080 Cable Gland
The PNC1/2W SL080 Fit® Standard Dome Design NPT Cable Gland provides reliable cable strain relief and environmental protection. It is dust, dirt, and sand resistant with an IP68 rating, ensuring watertight sealing for harsh environments. Made from durable polyamide 6 in slate RAL 7001, it includes a locknut and gasket for complete sealing. It withstands conditions up to 5 bar pressure for 30 minutes, rated UL94V-2 flammability, and operates between -20°C to +100°C permanently and -30°C to +150°C intermittently. Suitable for industrial automation, electrical systems, and renewable energy applications.
ALPHA WIRE PNC12WSL080 Cable Gland Specifications:
- Material: PA 6 (Polyamide 6)
- Color: Gray, RAL 7001
- Protection Class: IP 68, IP 66
- Flammability: UL94V-2
- Temperature Rating: -20°C to +100°C permanently, -30°C to +150°C intermittently
- Thread Type: NPT according to ANSI B1.20.1
- Protection Level: 5 Bar for 30 min (IP68)
- Seal: Rubber gasket and seal for water ingress prevention
- Dimensions: Clamping range 0.197-0.394 inch (5.0-10.0 mm), Thread Length: 15 mm
- Spanner Width: 22 mm
- Max Outer Diameter: 22 mm
- Certifications: UL 514, CSA C22.2
- Package: 10 glands per package
Buy the Alpha Wire Series PNC Cable Gland: PNC12WSL080
Purchase the Alpha Wire PNC12WSL080 cable gland online today and benefit from superior environmental sealing and robust construction. Its IP68 rating ensures waterproof and dustproof performance, ideal for demanding industrial environments including automation and renewable energy sectors. Made from high-strength polyamide 6, it offers excellent durability and chemical resistance. The gland features a secure NPT thread, rubber seals, and includes a locknut and gasket for complete seal integrity. Reliable, easy to install, and essential for protecting electrical connections in tough conditions.
Buy Alpha Wire PNC12WSL080 now and experience unmatched reliability and performance with IP68 protection and high-temperature resistance for industrial applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE PNC12WSL080?
You can click on the BUY or RFQ button to purchase PNC12WSL080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PNC12WSL080?
You can download the PNC12WSL080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PNC12WSL080?
ALPHA WIRE
