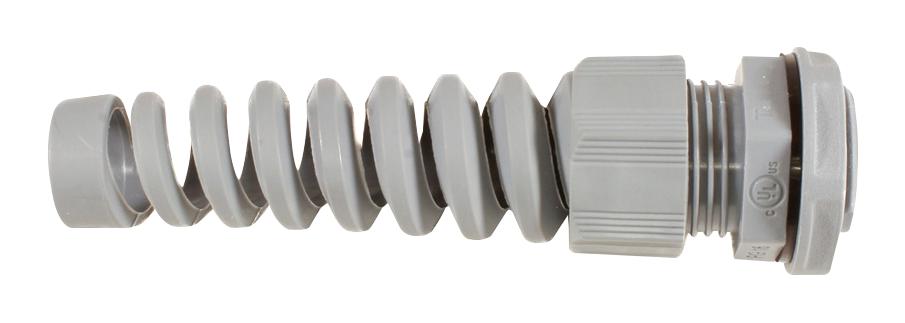

ALPHA WIRE PNS34SL080 Cable Gland
The PNS3/4 SL080 Fit® Flexible Spiral Design NPT Cable Gland offers reliable cable strain relief and environmental protection. Constructed from durable polyamide 6 in slate RAL 7001, it features a locknut and gasket for secure installation. Rubber seals guard against water ingress, supporting protection up to IP68 and IP66 standards. Rated UL94V-2 flammability, it operates within a temperature range of -20°C to +100°C permanently and -30°C to +150°C intermittently. Suitable for industrial automation, electrical, and renewable energy sectors, it’s UL listed and CSA certified, ensuring safety and durability in harsh conditions.
ALPHA WIRE PNS34SL080 Cable Gland Specifications:
- Material: Polyamide 6
- Color: Slate RAL 7001
- Protection Class: IP68 5 Bar, 30 min; IP66
- Flammability: UL94V-2
- Temperature Rating: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Type: NPT
- Thread Sizes: 3/8 inch (5.0-10.0 mm), 1/2 inch (6.0-12.0 mm), 3/4 inch (13.0-18.0 mm)
- Thread Length: 15.0 mm (0.591 inch)
- Outer Diameter: 17.14 mm (0.673 inch) for 3/8 inch, 21.34 mm (0.839 inch) for 1/2 inch, 26.67 mm (1.051 inch) for 3/4 inch
- Overall Height: 81.5 mm (3.169 inch) for 3/8 inch, 103.87 mm (4.087 inch) for 1/2 inch, 117.9 mm (4.606 inch) for 3/4 inch
- Approvals: UL UL 514 li, CSA CSA C22.2
Buy the Alpha Series PNS3/4 Cable Gland: PNS34SL080
Purchase the Alpha Series PNS34SL080 cable gland online now for reliable cable management and environmental sealing in industrial environments. This high-quality NPT cable gland features durable polyamide 6 construction, ensuring excellent resistance to water, dust, and harsh conditions. It supports IP68/IP66 protection standards and is UL listed and CSA certified, providing safety and durability. Ideal for industrial automation, electrical installations, and renewable energy projects, ordering online guarantees quick delivery and expert support for your technical needs.
Get Alpha Series PNS34SL080 cable gland today—built for excellent cable strain relief, environmental sealing, and long-lasting performance.
Frequently Asked Questions
Where can I buy ALPHA WIRE PNS34SL080?
You can click on the BUY or RFQ button to purchase PNS34SL080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PNS34SL080?
You can download the PNS34SL080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PNS34SL080?
ALPHA WIRE
