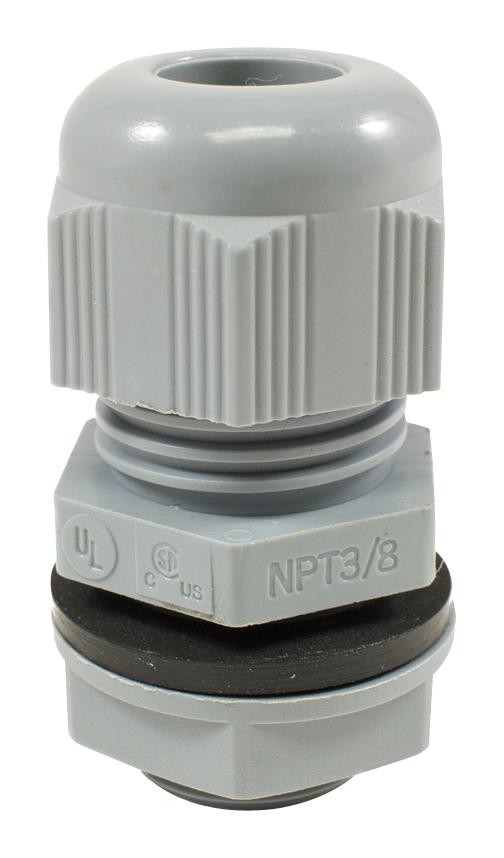

ALPHA WIRE PPC11SL080 Cable Gland
The PPC11 SL080 Fit® Standard Dome Design PG Cable Gland offers reliable cable strain relief and environmental protection. Made from high-strength polyamide 6 in slate color (RAL 7001), it provides dust, dirt, and sand resistance, along with a watertight seal rated IP68 (5 bar for 30 minutes) and IP66. The package includes a locknut and gasket for a complete installation solution. Features include robust rubber seals protecting against water ingress, UL94V-2 flammability rating, and a temperature range of -20°C to +100°C (permanent) and -30°C to +150°C (intermittent). It is UL listed 514 and CSA certified C22, making it suitable for industrial automation, electrical, and renewable energy applications.
ALPHA WIRE PPC11SL080 Cable Gland Specifications:
- Material: Polyamide 6 (PA 6)
- Color: Slate, RAL 7001
- Protection Class: IP68 (5 bar for 30 min), IP66
- Flammability: UL 94V-2
- Temperature Range: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Type: PG according to DIN 40430
- Approvals: UL Listed 514, CSA Certified C22.2
- Size Range: PG7, PG9, PG13, PG21, PG29 with various clamping ranges
- Package: 10 glands per package
- Features: Dust, dirt, sand resistant, includes locknut and gasket, robust rubber seals, suitable for industrial electrical installations
Buy the Alpha Series PG Cable Gland: PPC11SL080
Order the Alpha series PPC11SL080 cable gland online today for robust cable strain relief and environmental protection. Made from durable polyamide 6 in slate color, it guarantees dust, dirt, and sand resistance with a watertight IP68/IP66 seal. The package includes a locknut and gasket for quick installation. It features UL and CSA certifications, UL94V-2 flammability rating, and a wide temperature range from -20°C to +150°C, ensuring reliable performance in industrial, electrical, and renewable energy applications. Experience durability and quality—buy now for your electrical projects.
Get Alpha series PPC11SL080 cable gland today—built for industrial electrical installations with IP68 protection and certification for long-lasting durability.
Frequently Asked Questions
Where can I buy ALPHA WIRE PPC11SL080?
You can click on the BUY or RFQ button to purchase PPC11SL080 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part PPC11SL080?
You can download the PPC11SL080 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of PPC11SL080?
ALPHA WIRE
