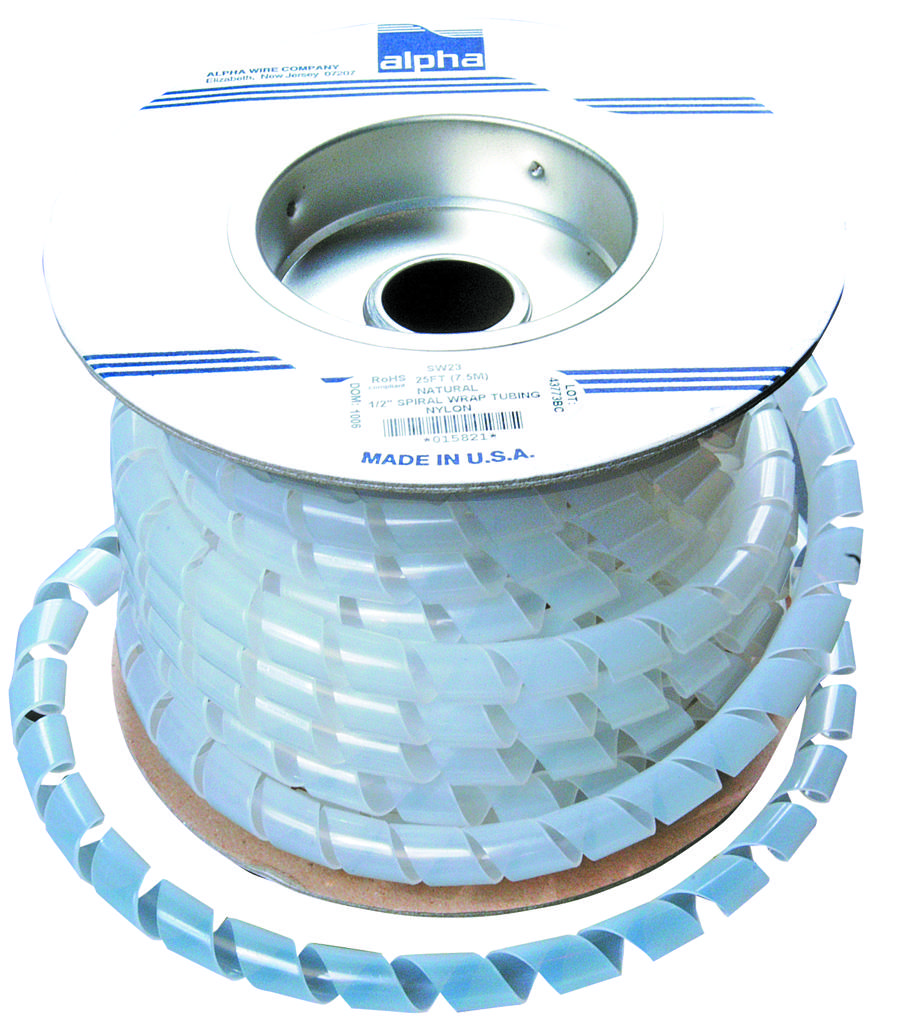

ALPHA WIRE SW14WH008 Spiral Wrap Tubing
The SW14 WH008 spiral wrap tubing is crafted from polyethylene for versatile wire bundling, harnessing, and cabling. It features a right-hand pitch, flame retardant properties, and a nominal outer diameter of 0.750 inches with a wall thickness of 0.065 inches. Designed for durability, it withstands temperatures from -20°C to +80°C, providing flexibility around sharp edges and ease of installation without tools. Suitable for industrial wiring, the tubing offers secure bundling, easy breakouts, and compliance with EU RoHS2 and REACH regulations, ensuring safety and environmental responsibility.
ALPHA WIRE SW14WH008 Spiral Wrap Tubing Specifications:
- Material: Polyethylene
- Color: White
- Flamability: Flame Retardant
- Outside Diameter: 0.750 inches ± 0.020
- Inside Diameter: 0.620 inches Nominal
- Wall Thickness: 0.065 inches Nominal
- Pitch: 0.750 inches Nominal
- Pitch Direction: Right Hand
- Temperature Rating: -20°C to +80°C
- Packaging: 500 FT, 100 FT, 25 FT lengths, maximum of 3 lengths per package, minimum 10 ft
- Compliance: EU Directive 2011/65/EU(RoHS2), REACH Regulation (EC 1907/2006)
Buy the Alpha Wire Series Spiral Wrap Tubing: SW14WH008
Purchase Alpha Wire SW14WH008 spiral wrap tubing online today and enjoy easy, tool-free installation for wire harnessing and bundling. Made from flame retardant polyethylene, it is flexible, durable, and suitable for industrial environments. With a right-hand pitch, it simplifies cable management, provides protection against sharp edges, and ensures secure bundling in wiring systems. Available in various lengths, the tubing complies with EU RoHS2 and REACH regulations, offering a safe, environmentally responsible solution for professional wire management needs.
Buy Alpha Wire SW14WH008 spiral wrap tubing now and experience reliable wire management with flexible, flame-retardant polyethylene design for industrial use.
Frequently Asked Questions
Where can I buy ALPHA WIRE SW14WH008?
You can click on the BUY or RFQ button to purchase SW14WH008 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part SW14WH008?
You can download the SW14WH008 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of SW14WH008?
ALPHA WIRE
