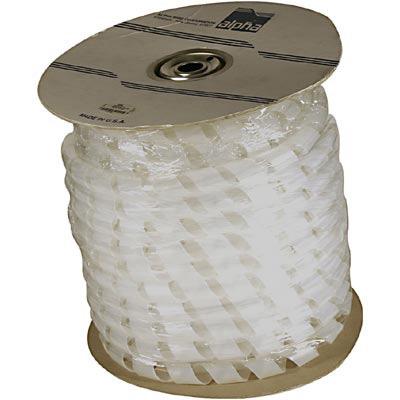

ALPHA WIRE SW6CL005 Spiral Wrap Tubing
Spiral wrap tubing made from polyethylene, available in natural color, with an outside diameter of 1.000 inches, inside diameter of 0.840 inches, and wall thickness of 0.080 inches. It features a right-hand pitch of 1.000 inch and is designed for electrical insulation and protection in wiring applications. The product complies with ASTM 1248-65T, Type 1 Class A, Grade 3 specifications, and MIL standards. It has a temperature rating from -60°C to +88°C and a tensile strength of 1800 PSI, ensuring reliable performance in various environments.
ALPHA WIRE SW6CL005 Spiral Wrap Tubing Specifications:
- Construction: Spiral Wrap Tubing
- Material: Polyethylene
- Color: Natural
- Flamability: Not Rated
- Outside Diameter: 1.000 inch ± 0.035 inch
- Inside Diameter: 0.840 inch (Nominal)
- Wall Thickness: 0.080 inch (Nominal)
- Pitch: 1.000 inch (Nominal)
- Pitch Direction: Right Hand
- Temperature Rating: -60°C to +88°C
- Tensile Strength: 1800 PSI
- Applicable Standards: ASTM 1248-65T Type 1 Class A Grade 3, DSSC CID A-A59602 Type 1 Class 1, MIL-I-631D Type A Form U, MIL-P-21922B
- Environmental Compliance: EU RoHS2, REACH compliant
Buy the AlphaWire Series Spiral Wrap Tubing: SW6
Discover reliable polyethylene spiral wrap tubing ideal for wiring protection, offering excellent insulation and flexibility. With a 1 inch outside diameter and 0.84 inch inside diameter, it fits various bundles and cables securely. The tubing maintains performance from -60°C to +88°C and boasts a tensile strength of 1800 PSI, making it suitable for industrial and electrical applications. Compliant with ASTM and MIL standards, this tubing provides durable, high-quality insulation for demanding environments. Purchase online for quick, convenient availability and secure your wiring protection needs today.
Get AlphaWire SW6 spiral wrap tubing today—built for electrical insulation and protection in wiring systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE SW6CL005?
You can click on the BUY or RFQ button to purchase SW6CL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part SW6CL005?
You can download the SW6CL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of SW6CL005?
ALPHA WIRE
