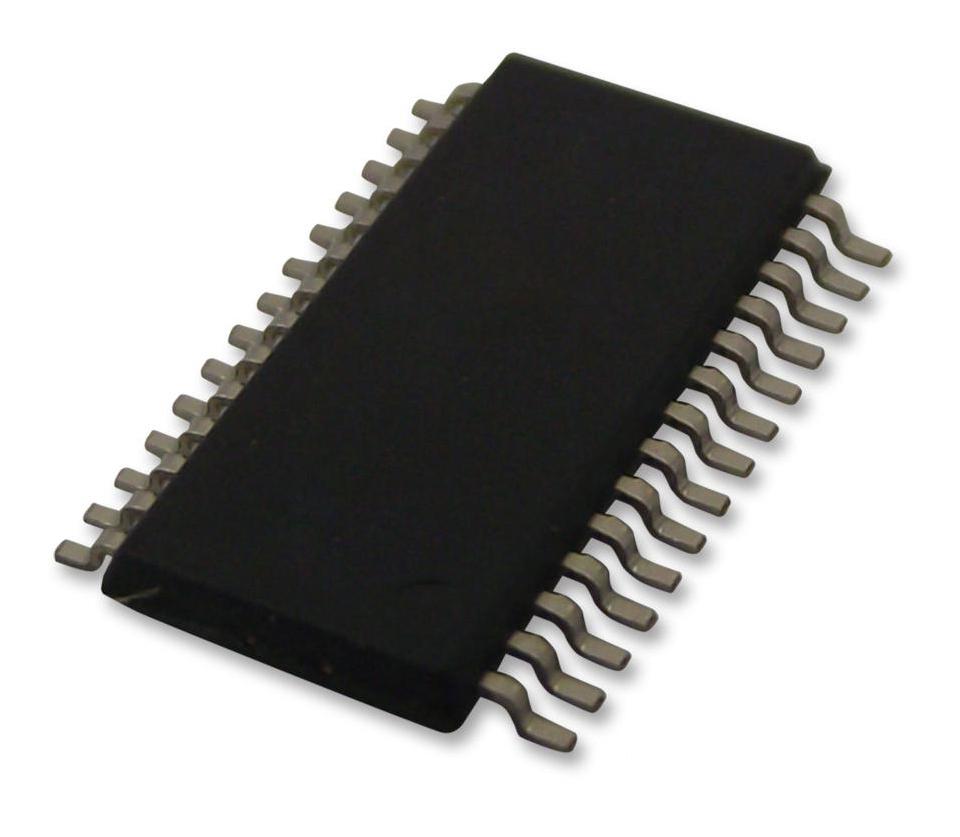

AMIC-Technology A623308AM70SF CMOS SRAM
The A623308A is a low-power 8K x 8 CMOS static RAM with an extended temperature range suitable for various industrial and computing applications. It features TTL-compatible inputs and outputs, power supply voltage of 4.5V to 5.5V, and non-volatile data retention voltage at 2.0V minimum. Available in 28-pin DIP, SOP, and TSOP packages, this SRAM offers quick access times of 70 ns, low standby current, and robust operation across temperature ranges from 0°C to 70°C or -40°C to 85°C. It interfaces seamlessly with system buses, making it ideal for embedded and high-performance memory tasks.
AMIC-Technology A623308AM70SF CMOS SRAM Specifications:
- Power Supply Range: 4.5V to 5.5V
- Data retention voltage: 2.0V (min.)
- Access times: 70 ns
- Standby Current: 10 μA (max.)
- Operating Temperature: 0°C to 70°C or -40°C to 85°C (depending on series)
- Pin Count: 28 pins
- Package Types: DIP, SOP, TSOP
- Input/Output Compatibility: TTL
- Data Retention Current: 3 nA
- Control Pins: CE, OE, WE
- Static Operation: No clock or refresh required
- Storage Temperature: -55°C to +125°C
- Power Dissipation: 0.7W
- Soldering Temperature: 260°C for 10 seconds
Buy the AMIC Series 8K x 8 CMOS SRAM: A623308AM70SF
Enhance your system with the highly reliable CMOS SRAM offering 8K x 8 organization, 70 ns access time, and low power standby. This SRAM supports a wide operating temperature range, ideal for industrial, embedded, and high-performance applications. Its TTL-compatible inputs and outputs ensure seamless integration with system buses. Available in multiple packages, including DIP, SOP, and TSOP, enabling flexible deployment. Purchase online now to benefit from fast shipping and technical support for your memory upgrade or new design projects.
Buy AMIC Series 8K x 8 CMOS SRAM now and experience unmatched reliability and fast access times for your embedded and industrial projects.
Frequently Asked Questions
Where can I buy AMIC-Technology A623308AM70SF?
You can click on the BUY or RFQ button to purchase A623308AM70SF from an authorized AMIC-Technology distributor.
How do I troubleshoot issues or seek technical support for part A623308AM70SF?
You can download the A623308AM70SF datasheet or visit the AMIC-Technology website for support.
Who is the manufacturer of A623308AM70SF?
AMIC-Technology
