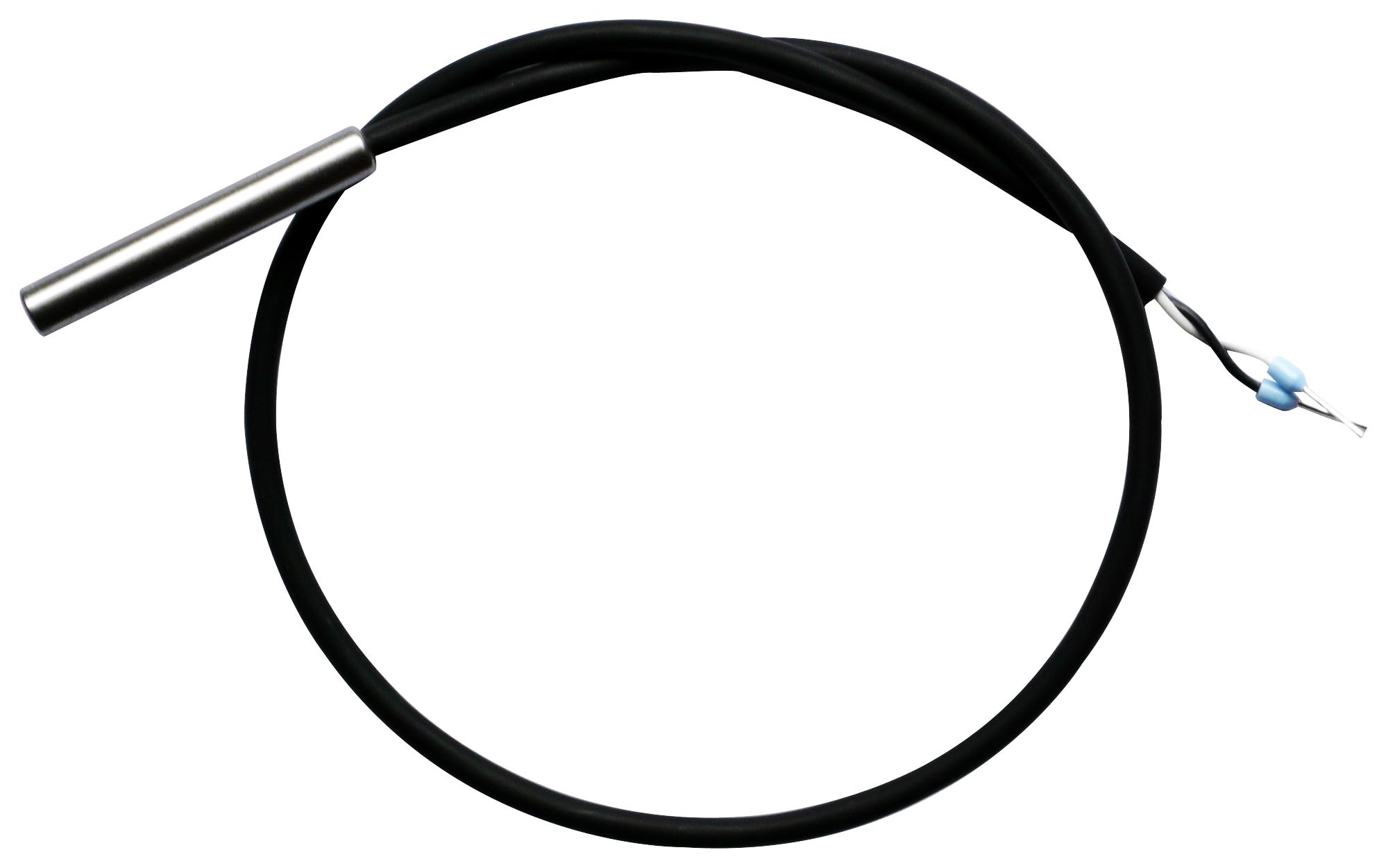

AMPHENOL ADVANCED SENSORS JS8746C015 Marine Temperature Sensor
The JS8746 Harsh Environment Temperature Sensor is designed for marine and industrial applications, ensuring accurate measurement in extreme conditions. Made with stainless steel housing and double-insulated copper conductors, it resists corrosion, saltwater, ozone, UV, and detergents. It features a temperature range from -40°C to 125°C, with high resistance to corrosive marine environments and a quick time constant of 20 seconds or less. Certified IP68, this sensor exceeds 14 days of HACT testing, making it ideal for shipping, HVAC, and refrigerated systems with reliable long-term performance.
AMPHENOL ADVANCED SENSORS JS8746C015 Marine Temperature Sensor Specifications:
- Resistance at 25°C: 10,000 Ω nominal
- Temperature Range: -40°C to 125°C
- Temperature Tolerance: ±0.2°C or ±0.15°C
- Housing Material: Stainless steel A2 or better (ISO3506)
- Cable: Double-insulated copper conductors, 0.25 mm² cross-section, tin-coated, 19mm x 0.14mm
- Withstand Voltage: 2.5kV rms for 1 minute
- Time Constant: 20 seconds or less
- Maximum Resistance at 70°C: 328,250 Ω
- Certifications: IP68, Marine corrosion resistant
- Application Resistance: Salt solutions, ozone, UV, detergents
Buy the Amphenol Series Marine Temperature Sensor: JS8746C015
Purchase the Amphenol Marine Temperature Sensor JS8746C015 online today for precise and durable temperature measurement in extreme marine conditions. Designed with corrosion-resistant stainless steel housing and double-insulated copper conductors, this sensor withstands seawater, UV, ozone, and detergents, ensuring long-term reliability. Suitable for ships, HVAC, and refrigeration, it supports a temperature range from -40°C to 125°C, with a quick 20-second response time. Order now to secure high-performance temperature sensing for demanding environments.
Order your Amphenol Series Marine Temperature Sensor JS8746C015 today and ensure reliable temperature monitoring in harsh marine environments.
