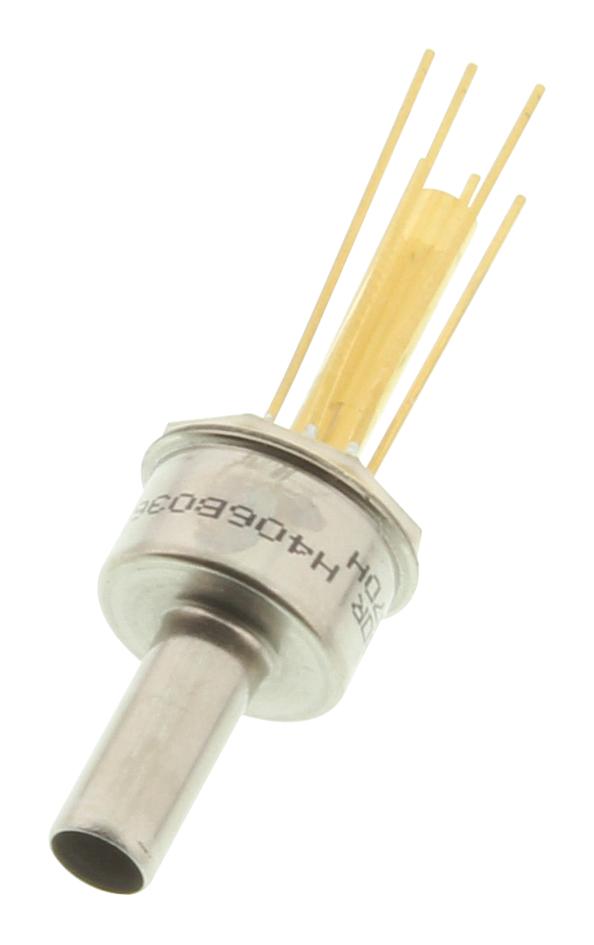

AMPHENOL ADVANCED SENSORS NPH8030GH Pressure Sensor
The NPH Series by NovaSensor comprises solid state low-pressure sensors housed in a standard TO-8 package. These sensors utilize micromachined silicon diaphragms with ion-implanted piezoresistive strain gauges, offering excellent output stability through SenStable processing technology. They produce a linear voltage output proportional to input pressure, suitable for various applications including process control, HVAC, biomedical devices, and aerospace. Available in gauge, absolute, and differential versions, these sensors withstand overpressure, operate reliably in media with non-corrosive gases and dry air, and feature temperature compensation and compact design for versatile integration.
AMPHENOL ADVANCED SENSORS NPH8030GH Pressure Sensor Specifications:
- Pressure Range: 0 to 10 in H2O (0 to 25 mbar), 0 to 1 psi (0 to 7 bar), 0 to 5 psi (0 to 30 kPa)
- Maximum Pressure: 5x rated pressure
- Measurement Technology: Piezoresistive silicon strain gauges in wheatstone bridge
- Output Signal: 100 mV typical; can be amplified with conditioning circuitry
- Temperature Range: Operating -40°C to 125°C, Compensated 0°C to 70°C
- Overpressure Limit: 5 times maximum rated pressure
- Media Compatibility: Non-corrosive gases and dry air
- Electrical: Excitation 15 mA, Insulation Resistance 100 MΩ @ 50 VDC
- Impedance: Input 3200 Ω, Output 5000 Ω, Bridge 5000 Ω
- Size: Standard TO-8 package, port diameter 3/16 in OD
- Vibration Resistance: 10 g RMS, 20-2000 Hz, Shock Resistance: 100 g
- Weight: Less than 0.2 oz
- Certifications: UL Listed, CSA Certified
Buy the Buy NovaSensor NPH Series Pressure Sensor Part Number NPH8030GH Online
Secure your NovaSensor NPH Series pressure sensor today—engineered for precision and durability in process control, biomedical, aerospace, and HVAC systems. This low-pressure, solid state sensor offers excellent stability, a linear voltage output, and robust construction capable of handling overpressure conditions. Its compact, standard TO-8 package ensures easy integration into your equipment. With media compatibility for non-corrosive gases and dry air, this sensor provides reliable performance across a broad temperature range. Purchase online now for fast delivery and dependable operation in critical applications.
Get NovaSensor NPH Series pressure sensor today—designed for high reliability with linear output and compact size suitable for diverse applications.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS NPH8030GH?
You can click on the BUY or RFQ button to purchase NPH8030GH from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part NPH8030GH?
You can download the NPH8030GH datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of NPH8030GH?
AMPHENOL ADVANCED SENSORS
