AMPHENOL ADVANCED SENSORS NPC1210030A3L Pressure Sensor
The NPC-1210 series of solid-state pressure sensors deliver high sensitivity and accuracy for a wide range of applications including industrial automation, medical equipment, and process control. Packaged in a PCB mountable dual-in-line configuration, they feature temperature compensation from 0°C to 60°C and interchangeable options for pressure port configurations. Based on NovaSensor’s advanced SenStable piezoresistive technology, these sensors ensure reliable, solid-state performance suitable for measuring gauge, differential, and absolute pressures up to 100 psi, with excellent thermal stability and miniature design for easy integration.
AMPHENOL ADVANCED SENSORS NPC1210030A3L Pressure Sensor Specifications:
- Pressure Ranges: 5 psi to 100 psi gauge and differential; 10 in H₂O and 1 psi for low pressure options
- Operating Temperature: -40°C to 125°C (-40°F to 257°F)
- Compensated Temperature Range: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -85°C to 150°C (-67°F to 302°F)
- Media Compatibility: Dry gases, exposed materials include pyrex, ceramic, silicon, epoxy, RTV, stainless steel
- Electrical Output: 2 to 6000 mV depending on pressure range and calibration
- Power Supply: 15 mA at specified excitation levels
- Linearity: Typically ±0.25%FSO for pressure accuracy
- Hysteresis: Typically within ±0.1%FSO
- Hysteresis-Zero: Typically within 2 mV
- Overload Capacity: Up to 8x rated pressure for safety margin
- Weight: Approximately 0.005 Ib (25 grams)
- Dimensions: Approximate length 0.60 in (15.24 mm), diameter 0.37 in (9.4 mm), with optional configurations for tube length and lead positions

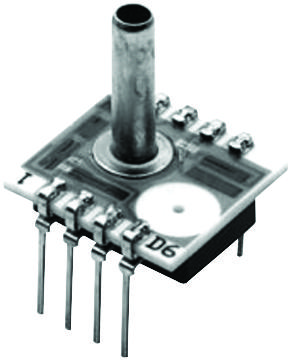

Buy the Amphenol Series NPC-1210 Pressure Sensor: NPC1210030A3L
Purchase the Amphenol Series NPC-1210 pressure sensor online now to ensure your projects benefit from high precision, reliability, and easy PCB integration. Perfect for industrial automation, medical equipment, and process control, this sensor provides accurate pressure measurements up to 100 psi with excellent thermal stability. Its compact design, temperature compensation, and interchangeable configurations make it ideal for various low-profile applications. Order today to enhance your system's performance with proven, solid-state technology for demanding environments.
Order your Amphenol Series NPC-1210 pressure sensor today and experience dependable performance for industrial automation and medical applications.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS NPC1210030A3L?
You can click on the BUY or RFQ button to purchase NPC1210030A3L from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part NPC1210030A3L?
You can download the NPC1210030A3L datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of NPC1210030A3L?
AMPHENOL ADVANCED SENSORS
