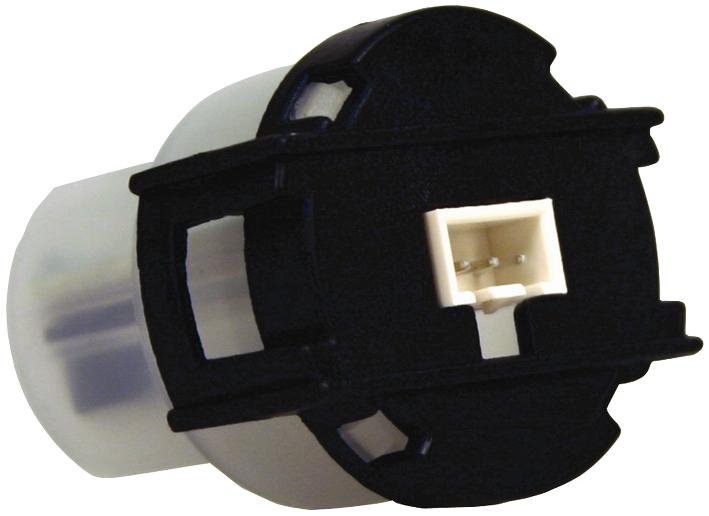

AMPHENOL ADVANCED SENSORS TSW10 turbidity sensor
The turbidity sensor measures the amount of suspended particles in wash water of washing machines and dishwashers. Utilizing optical refraction principles, it detects water clarity by measuring transmitted light, helping optimize wash cycles for energy efficiency. Operating from -30°C to 80°C, it features a 5V DC rated voltage, max 30 mA current, and robust insulation resistance of at least 100 MΩ. The sensor's compact design and precise measurements facilitate effective turbidity monitoring, reducing water and energy consumption in automated laundry and dishwashing applications.
AMPHENOL ADVANCED SENSORS TSW10 turbidity sensor Specifications:
- Part Number: TSW-10
- Rated Voltage: DC 5V (between No 1 & Ground)
- Voltage Differential: 1.3V + 20%
- Operating Temperature Range: -30°C to 80°C
- Storage Temperature Range: -10°C to 80°C
- Rated Current: Max 30 mA
- Insulation Resistance: Min 100 MΩ at 500V DC
- Detection of turbidity based on transmitted light reduction
- Uses optical emitter (diode) and receiver (phototransistor)
- Designed for water turbidity measurement applications in appliances
Buy the Amphenol Series TSW Turbidity Sensor: TSW10
Purchase the Amphenol TSW10 turbidity sensor online today to enhance your washing machine's efficiency. This optical sensor precisely monitors water clarity, enabling your appliance to adjust wash cycles based on turbidity levels. With a wide operating temperature range, low power consumption, and reliable accuracy, it ensures energy and water savings. Ideal for integration in automated laundry and dishwashing systems, buy now and improve your equipment’s performance with this advanced, durable turbidity measurement solution.
Buy Amphenol TSW10 now and experience accurate turbidity measurement for energy-efficient washing machine cycles.
Frequently Asked Questions
Where can I buy AMPHENOL ADVANCED SENSORS TSW10?
You can click on the BUY or RFQ button to purchase TSW10 from an authorized AMPHENOL ADVANCED SENSORS distributor.
How do I troubleshoot issues or seek technical support for part TSW10?
You can download the TSW10 datasheet or visit the AMPHENOL ADVANCED SENSORS website for support.
Who is the manufacturer of TSW10?
AMPHENOL ADVANCED SENSORS
